Laser Technology, Inc. TruPulse 200 User's Manual 6
th
Edition
Page 22

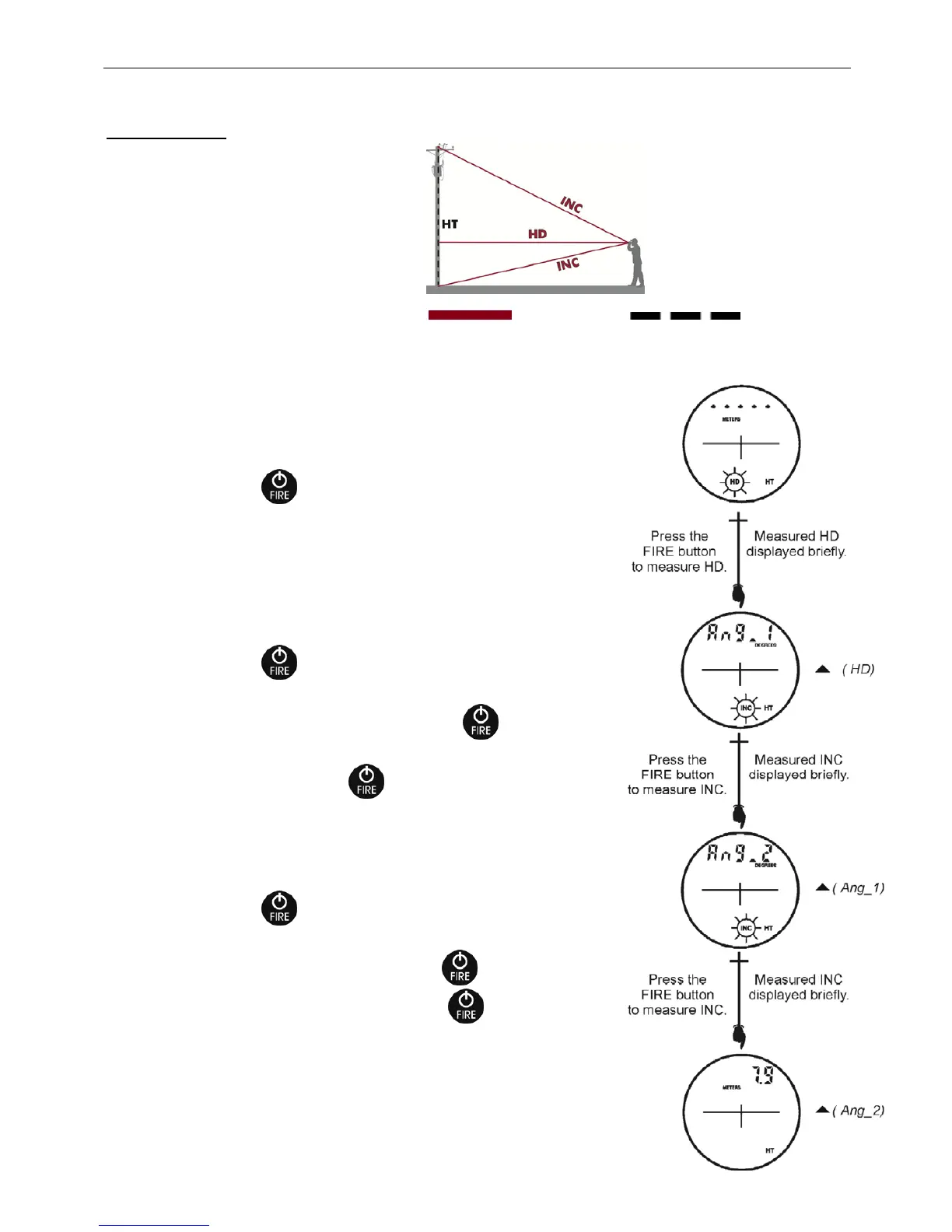

Height Routine
Height Measurements involve a simple
routine that prompts you to take 3 shots
to the target: HD, INC base (or top), and
INC top (or base). The TruPulse uses
these results to calculate the height of
the target. Figure #17 shows the three
shots required for the height routine.
1. Select your target and look through the eyepiece, using the
crosshair to aim to your target. The HT indicator displays
steady and the HD indicator flashes; prompting y
ou to
measure the Horizontal Distance to the “face” of the target.
2. Press-and-hold
. The LASER status indicator is displayed
while the laser is active. The laser will remain active for a
maximum of 10 seconds while acquiring data about the target.
The measured horizontal distance appears briefly in the Main
Display and then Ang_1 and the INC indicator flashes;
prompting you to measure the inclination to base (or top) of
the target.
3. Press-and-
hold
and aim to the base (or top) of the target.
The measured inclination appears in the Main Display and is
updated as long as us you continue to hold
. The
measured inclination is
“locked” when you release
. The measured inclination
appears briefly in the Main Display and then Ang_2 appears
and the INC indicator flashes; prompting you to measure the
inclination to the top (or base) of the target.
4. Press-and-hold
and aim to the top (or base) of the target.
The measured inclination appears in the Main Display and is
updated as long as you continue to hold
. The measured
inclination is “locked” when you release
. The measured
inclination appears briefly in the Main Display and then the
calculated Height is displayed. The measurement flashes one
time and then displays steady until you press any button or
the unit powers OFF.
Note: Only International lasers include meters.
Figure #18
HD = Horizontal Distance
INC = Top Angle
INC = Base Angle
HT = Hei
