Laser Technology UltraLyte User Manual

A
NATOMY OF THE
U
LTRA
L
YTE
Electronic Copy of LTI’s UltraLyte User’s Manual – 7
th
Edition June 1998

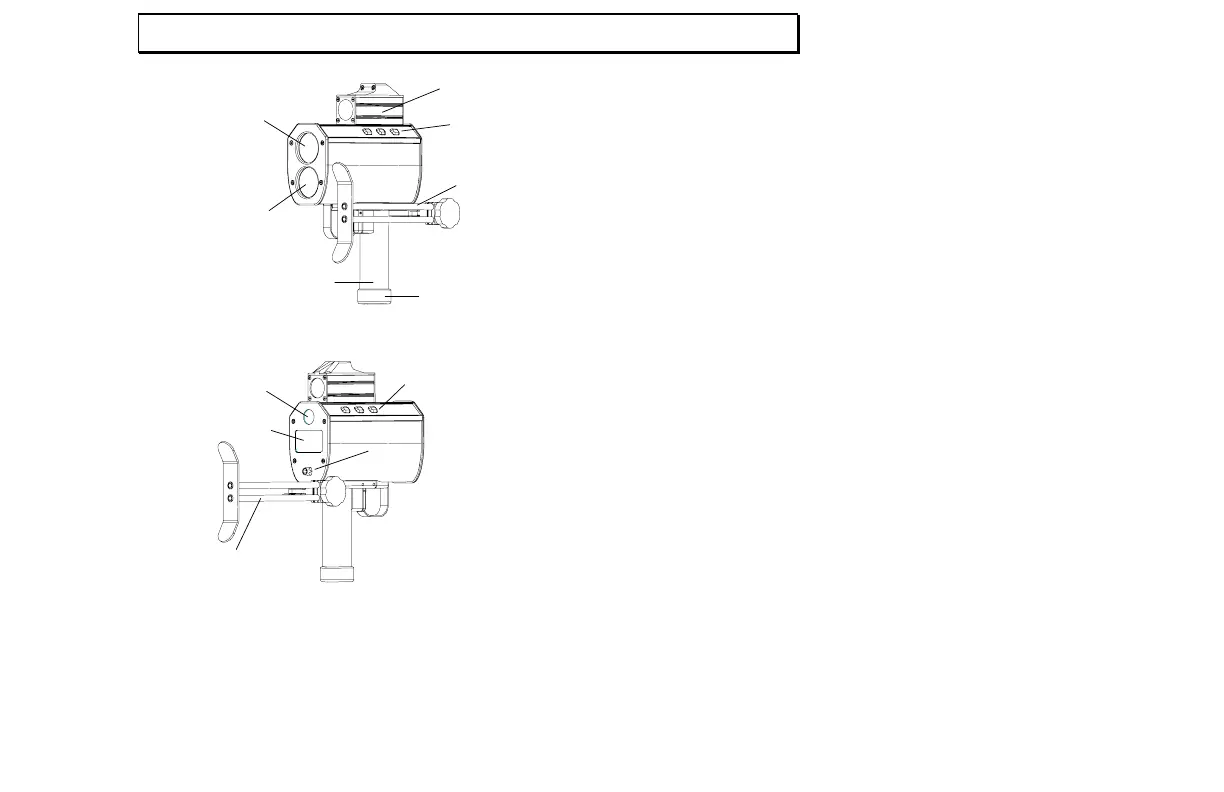

3
LCD screen
Left Button panel
Rear / Right Side
Serial port
connector
Speaker
Fold-away stock
opened for
right-handed operation
Receive lens
Transmit lens
Si
g
h
t
i
ng scope
Front / Left Side
Fold-away stock
(folded position)
Handle/battery
compartment
Battery
compartment
cap
Right Button panel
Sensors
The UltraLyte has two lenses on the front panel. The
top lens transmits infrared laser signals; the bottom
lens receives signals back from the target and feeds
signal information to the internal circuitry.
The internal circuitry consists of a laser range
sensor, a tilt sensor (Model 200 only), and timing,
analysis, computation, and display circuits.
The UltraLyte determines distance through its laser
range sensor, by measuring the time of flight of short
pulses of infrared light. The UltraLyte has a broad
spectrum of sensitivity, and can work with both
reflective and nonreflective targets.
The maximum measurement distance varies with
target and environmental conditions. The
