Laser Technology UltraLyte User Manual

G
ATES AND
G
ATE
W
INDOWS
Electronic Copy of LTI’s UltraLyte User’s Manual – 7
th
Edition June 1998
38
•
If you set the short gate nearer than 50 feet (15
meters), it defaults to 50 feet in speed mode but
assumes its normal value in survey mode.
•
The gate window is restricted to a width of 5 feet
(1.5 meters). If setting a gate causes the window
to be narrower than that, the instrument
automatically adjusts by resetting the other gate.
If the short gate is already set at 98 feet, for
example, and you set the long gate to 100 feet,
the instrument resets the short gate to 95 feet.
•
The maximum allowable value of the short gate
for a standard UltraLyte is 2000 feet/610 meters
(3998 feet/1218 meters for the UltraLyte LR).
The maximum allowable value of the long gate
is 2005 feet/612 meters (4003 feet/1220 meters
for the UltraLyte LR).
Setting a Gate Value
You can set the gates either by entering the values
manually or by using the instrument to measure the
values. Follow this procedure:

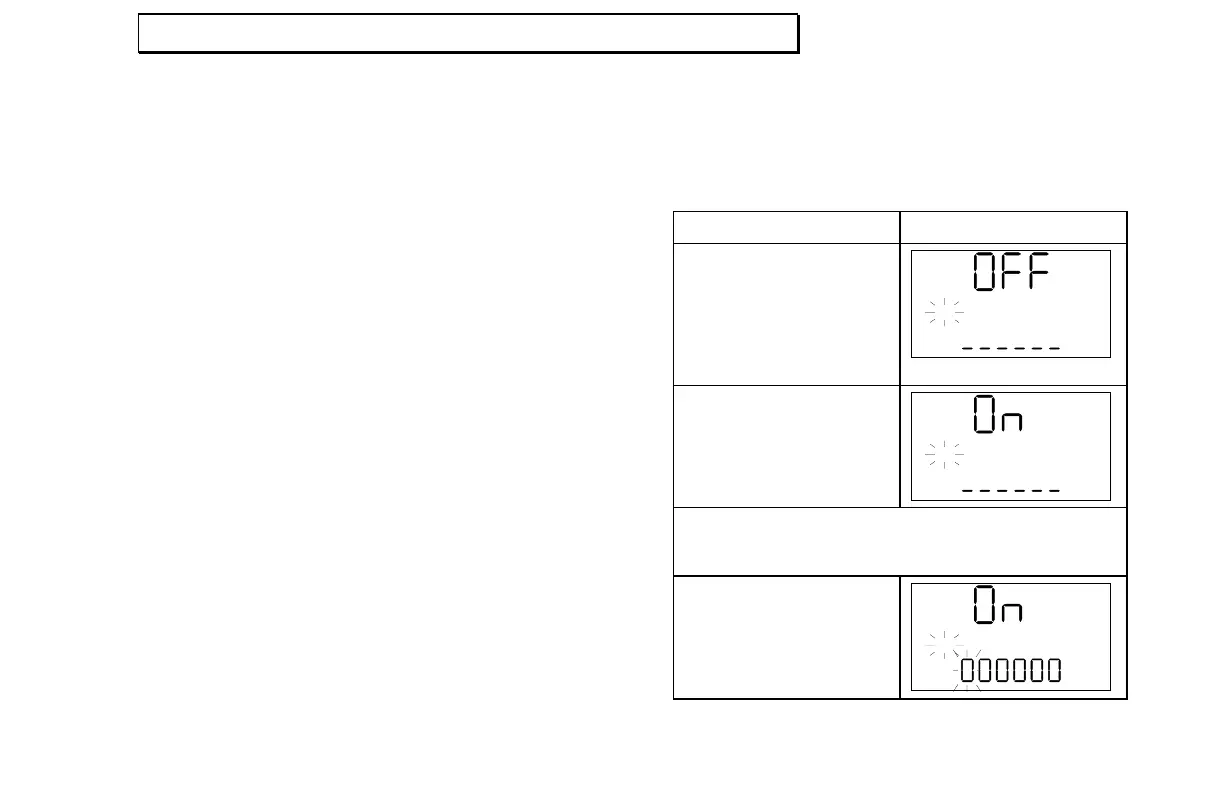

Action Result
1. Press Menu/Options
repeatedly until the
appropriate indicators
begin to blink.
Indicators are
G
and
S
for the short gate,
G
and
L
for the long gate.
MENU
F
GS
2. Turn on the gate by
pressing and releasing
the Select/Edit button.
MENU
F
GS
3. To measure the distance with the UltraLyte, aim to a
target that marks the location of the gate and press the
trigger. Then go to step 6.
4. Start edit mode by
pressing Select/Edit
and holding it down for
2.5 seconds.
MENU
F
GS
