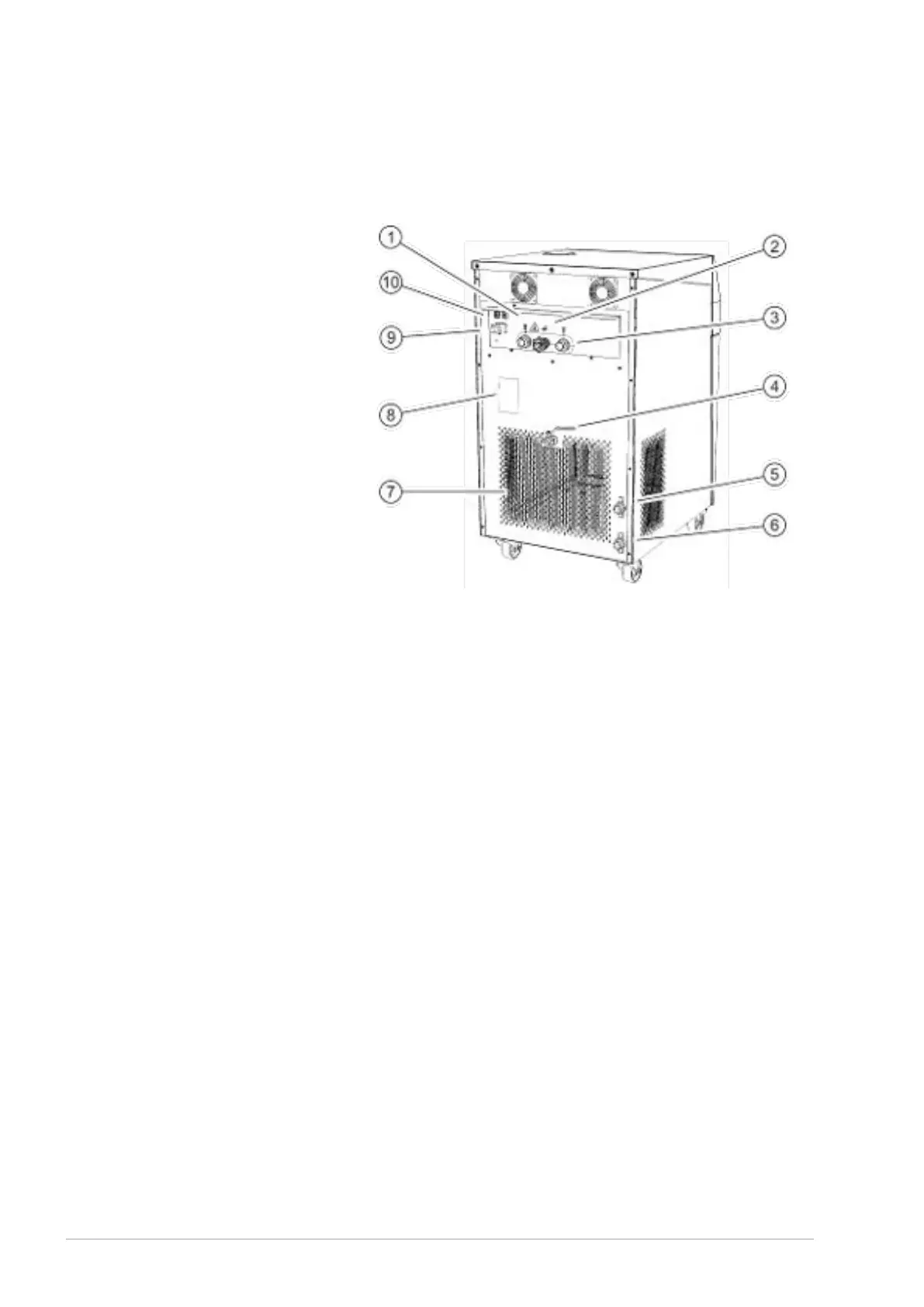

Fig. 2: Back of the VC 3000 W
1 Pump connection, inlet
2 Bypass adjusting wheel
3 Pump connection, outlet
4 Drain tap
5 Connecting sleeve for water cooling outlet (only available for water-
cooled devices)
6 Connecting sleeve for water cooling intake (only available for water-
cooled devices)
7 Ventilation grid
8 Rating label
9 Power supply
10 Fuses (up to and including VC 3000 (W))
V08Variocool16 / 97
