Leader Scan - UWB Sensor; UWB Sensor Connectors

14
2.2 UWB sensor

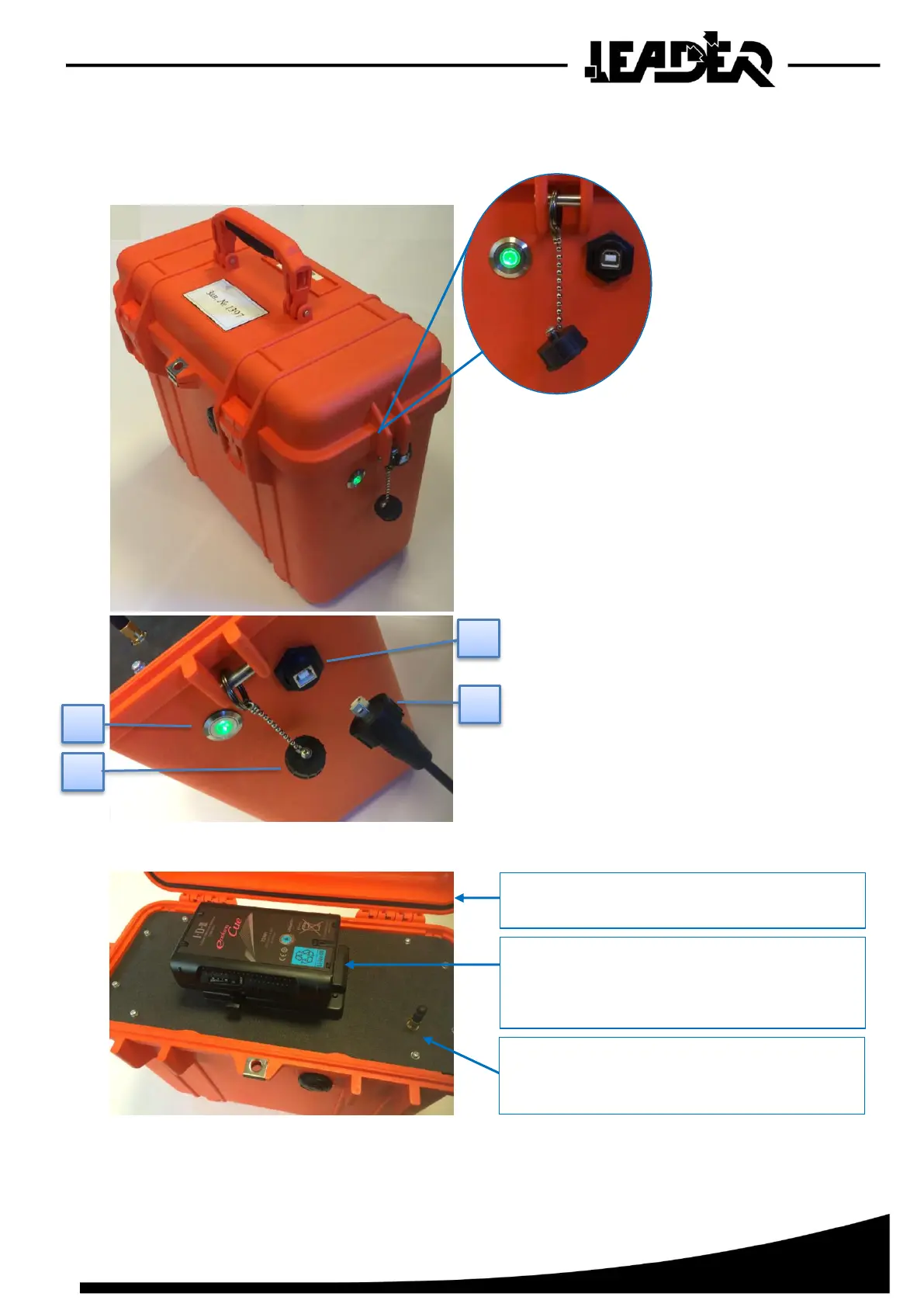

2.2.1 UWB sensor connectors
Open UWB sensor
Endura CUE D75 battery on its base. To
replace the batteries, see the “Sensor power”
section.
WiFi antenna to communicate in wireless
mode with the control box.
1/ USB connector to connect the UWB
sensor in wired mode to the control box.
2/ Watertight cap for USB connector to
protect it when not in use.
3/ ON/OFF button to switch on the UWB
sensor. If the batteries are OK, the button
turns green. If the battery level is low,
the button starts to flash.
4/ The male USB connector allowing wired
connection between the control box and UWB
sensor connects to the female USB
connector. It screws tight to be watertight and
to avoid it being pulled out.
3
2
1
4
