CS3E-E Series EtherCAT Closed Loop stepper drive User Manual
45

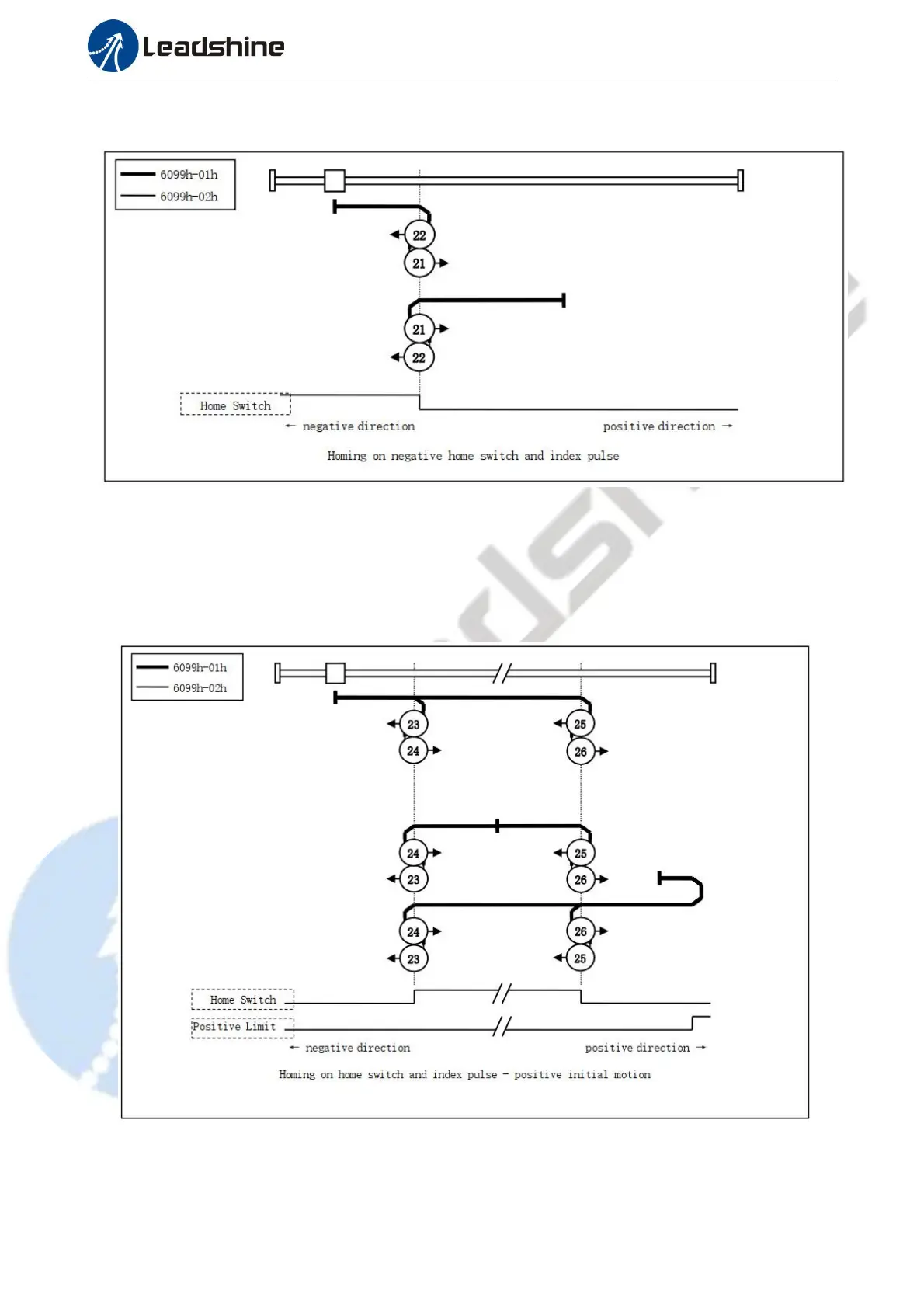

 Method 21 & 22 Description: The load is located on the home switch
Method 21 & 22
 Method 23,24,25,26 require the home switch and positive limit switch.
Method 23 & 24 & 25 & 26
