LED LED Status Status of Field Controller
green Power is okay.
flashing
green
P
ower is okay. The battery is being charged.
red Power is low. The remaining time for which
enough power is available depends on the
use of wireless modules, the temperature
and the age of the battery.
flashing red Power is low. The remaining time for which
enough power is available depends on the
use of wireless modules, the temperature
and the age of the battery. The battery is
being charged.
fast flashing
red
Power is very low. The battery must be
charged.
Bluetooth
LED
and
Long range
TS LED
green Bluetooth is not connected.
blue Bluetooth is connected.

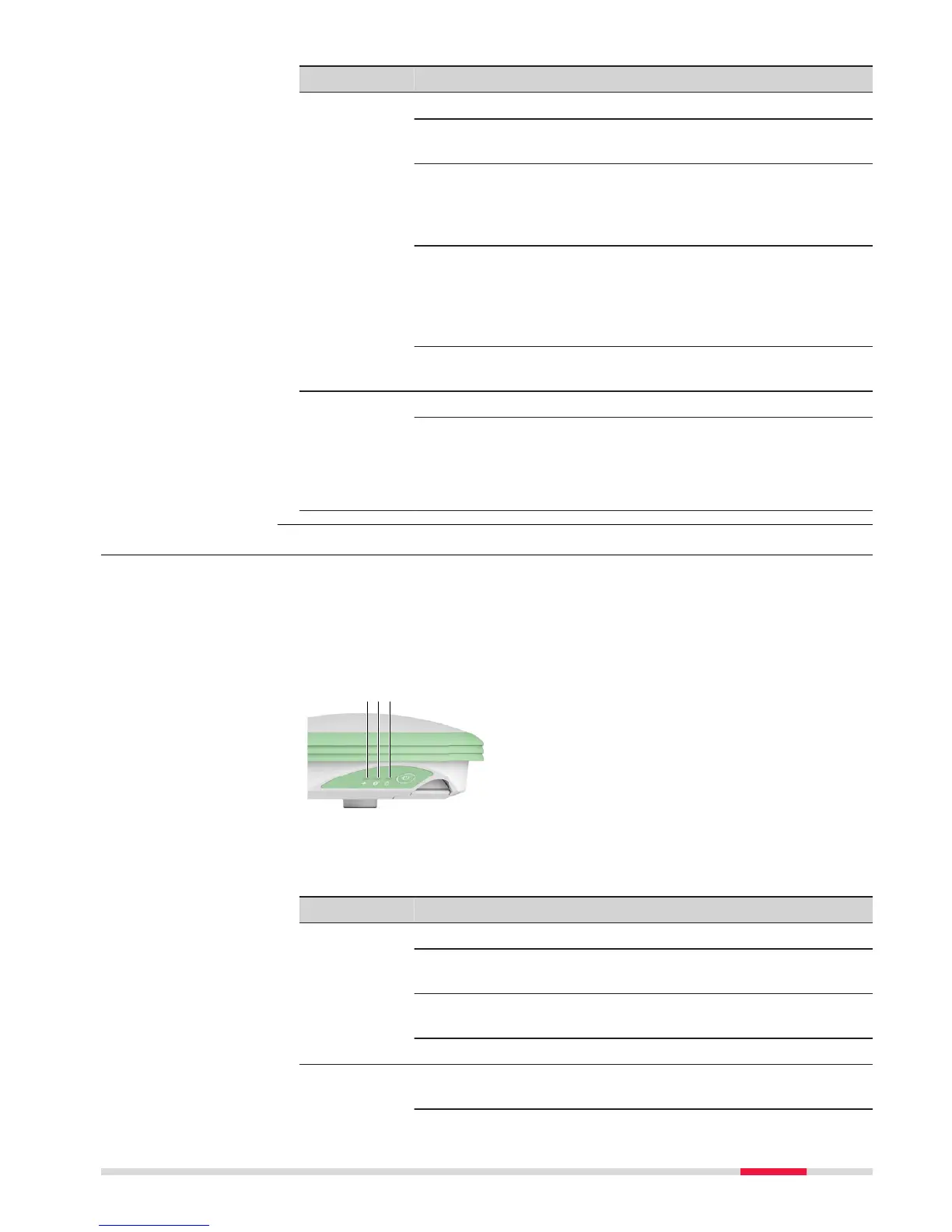

3.4 LED Indicators on GS07
Description
The GS07 ins
trument has Light Emitting Diode indicators. They indicate the
basic instrument status.
Diagram
a Tracking LED (TRK)
b Blue
tooth LED (BT)
c Power LED (PWR)
Description of the LEDs
IF the is THEN
TRK LED off No satellites are tracked.
flashing
green
Le
ss than four satellites are tracked, a posi-
tion is not yet available.
green Enough satellites are tracked to compute a
position.
red GS07 instrument is initialising.
BT LED green Bluetooth is in data mode and ready for con-
necting.
LED indicators
User Interface 29
