5.4002.8501.0 B
Maintenance 6-9

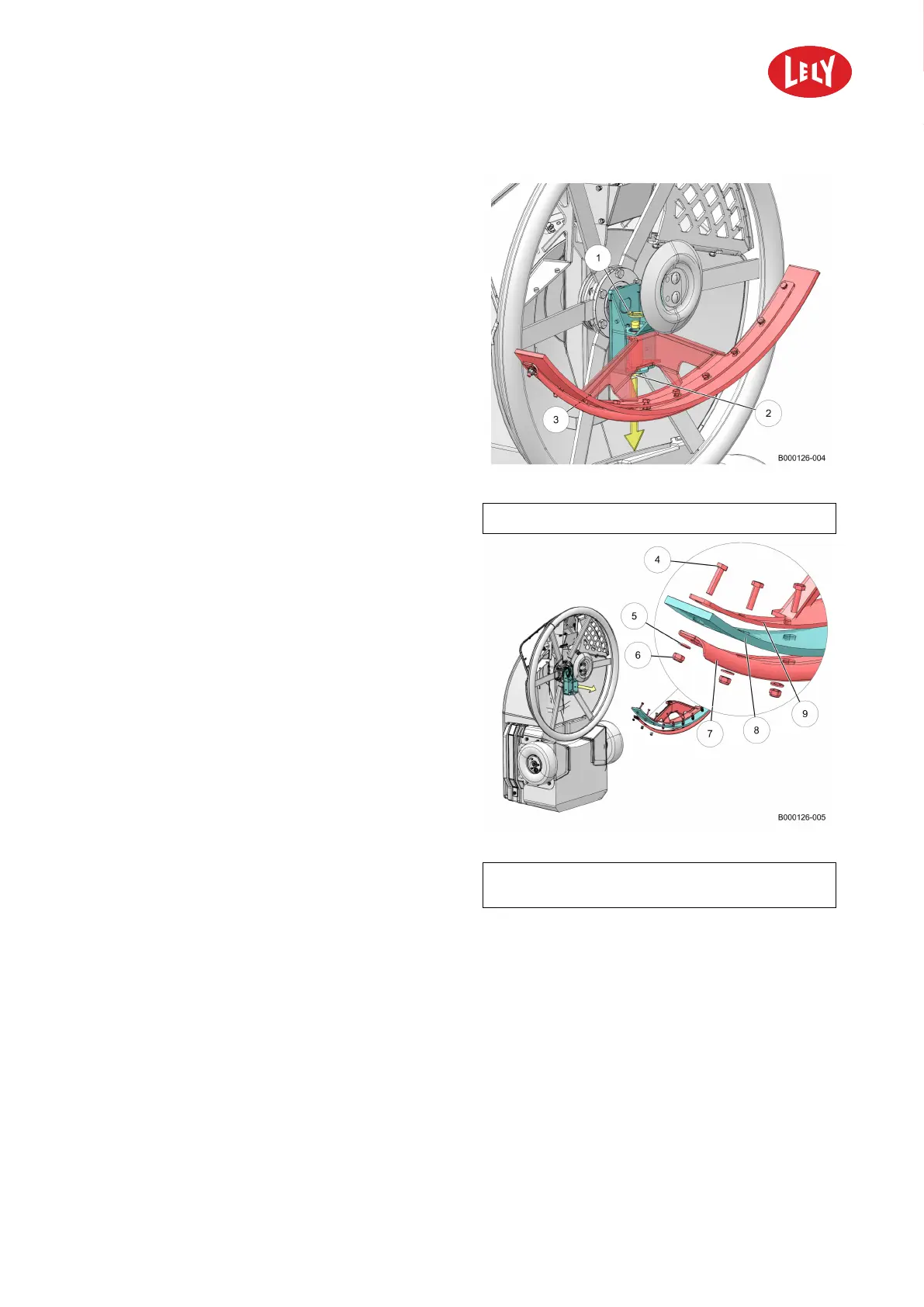

Figure 44. Remove the scraper assembly
KEY: 1. Locking pin - 2. Pin - 3. Scraper assembly
2. Remove the locking pin (1) and pin (2) and
remove the scraper assembly (3) from the
machine.
3. Clean the manure scraper.
Figure 45. Remove the scraper
KEY: 4. Bolt M8x35 - 5. Washer - 6. Nut M8 - 7. Clamping
strip - 8. Manure scraper - 9. Fixation plate
4. Remove the ten bolts (4), nuts (6) and washers
(5) that attach the clamping strip (7) and the
manure scraper (8) to the fixation plate (9).
Installation
1. Loosely install the new manure scraper (8) (see figure 45 on page 6-9) between the fixation plate (9)
and the clamping strip (7) with the ten bolts, washers and nuts.
2. Put the fixation plate (9) with the manure scraper (8) on a flat surface.
3. Make sure the manure scraper (8) is installed equally divided between the fixation plate (9) and the
clamping strip (7).
4. Tighten all nuts (6). Tighten the nuts at the far ends of the manure scraper a little less to prevent the
manure scraper from tearing.
5. Put the scraper assembly (3) (see figure 44 on page 6-9) with the pin (1) and locking pin on the
machine.
