4.1059.8506.0 A
6-4 Operating Instructions
Put the rake into the transport position as follows:
1. Take the rake out of operation (see page 6-12).
2. Slide the swath curtain inwards and secure it with the locking pin.
3. Pull the locking bar (2) (see figure 13 on page 6-4) and fold the
safety guard (1) upwards. Let the locking bar slide back into the
locking system. Make sure it is properly locked.
4. Repeat step 3 at the other side of the rake.
5. Remove the tine arms from the rotor and put them in the holders
at the front side of the rake (see figure 14 on page 6-5).
6. Move the three-point hitch of the tractor upwards to lift the rake
from the ground.
7. Pull out the locking pin (1) (see figure 15 on page 6-6), move it to
the bottom position and release it to secure the steering device.
The rake is now ready for transport.

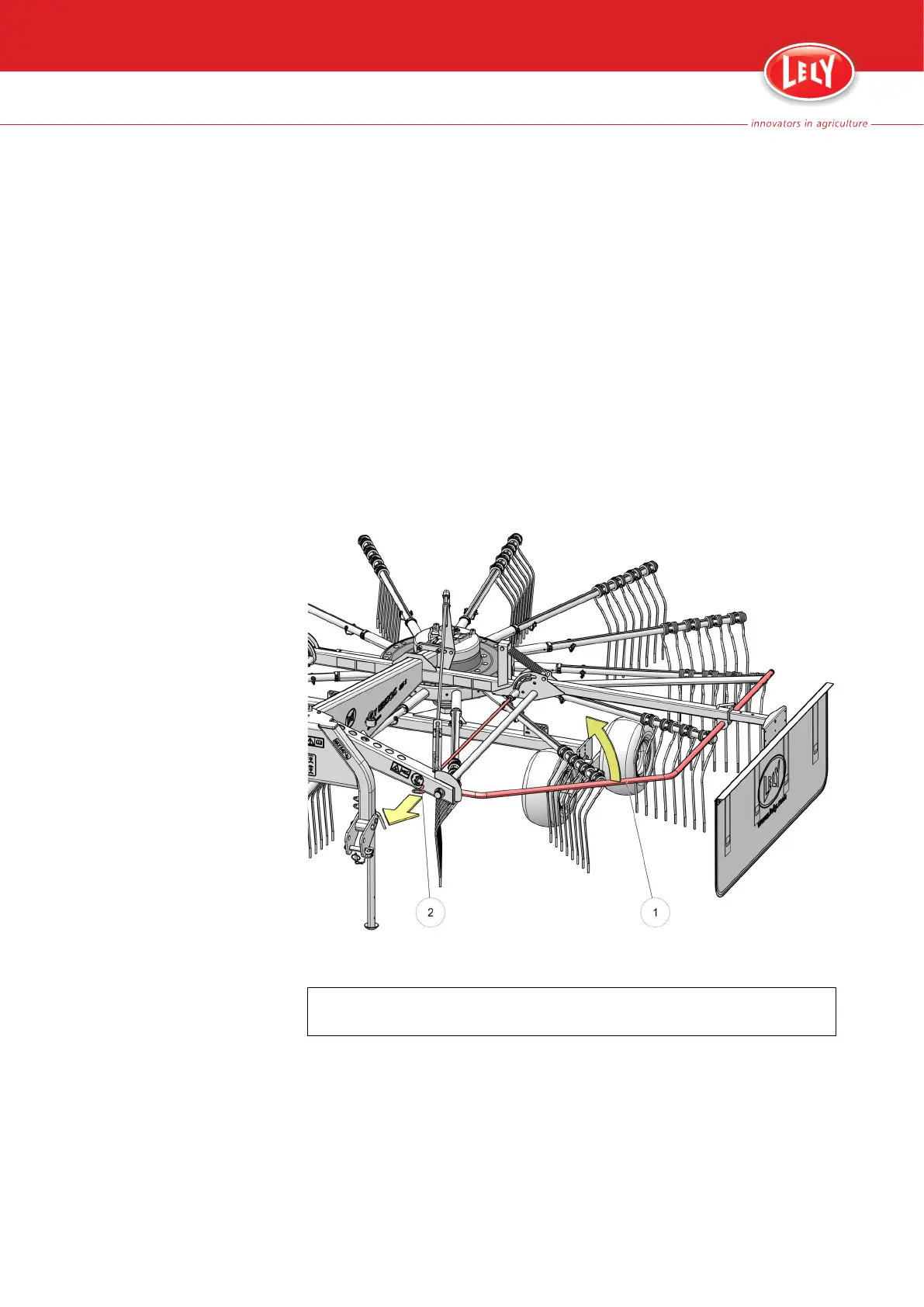

Figure 13. Fold the safety guard upwards
KEY:
1. Safety guard - 2. Locking bar
