Specifications 3-1
3 Specifications

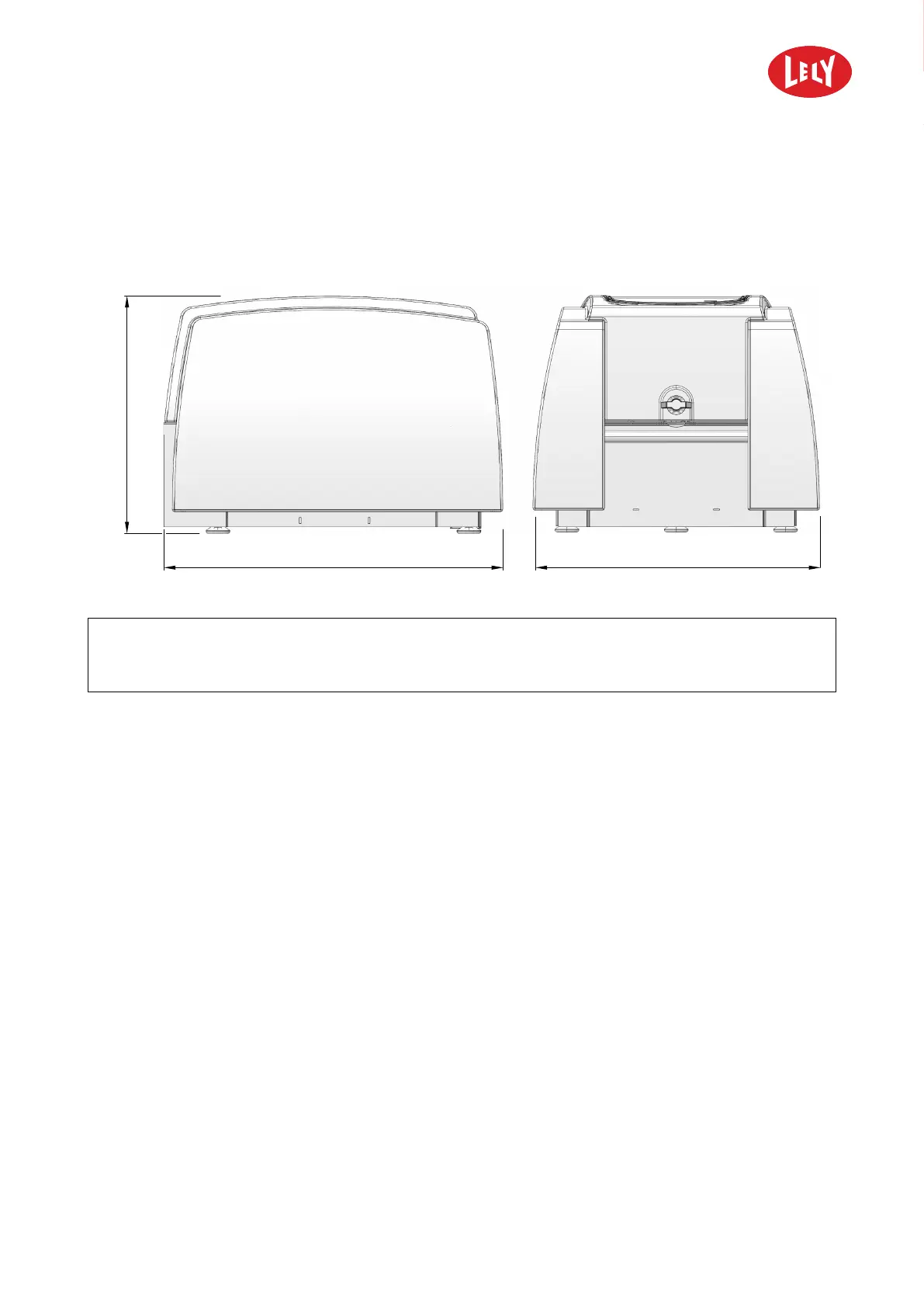

3.1 Dimensions and Weight
A
B
C
5-1501-0020-0-01-002
KEY:
A: 39.65 cm (15.61 in)
B: 57.3 cm (22.56 in)
C: 48 cm (18.9 in)
• Weight: 22 kg (48 lb).
3.2 Compressed Air Supply
• The Shuttle sampling device must be connected by means of an air hose to a compressed air valve (3/2
valve) controlled by the automatic milking system.
• This compressed air valve must deliver a pressure of between 6 to 8 bar (87.02 to 116.03 psi).
• The speed of air supply and discharge must be adjustable.
• The compressed air valve will be operated at the start and end of a milking session. Depending on the
type of sample rack, the compressed air valve will also be operated a number of times in between.
