LELY Shuttle - Close-Up; Monthly Maintenance; Examine the Serrated Frame

5.1501.8502.0 A
6-4 Maintenance
6.1.4 Close-up

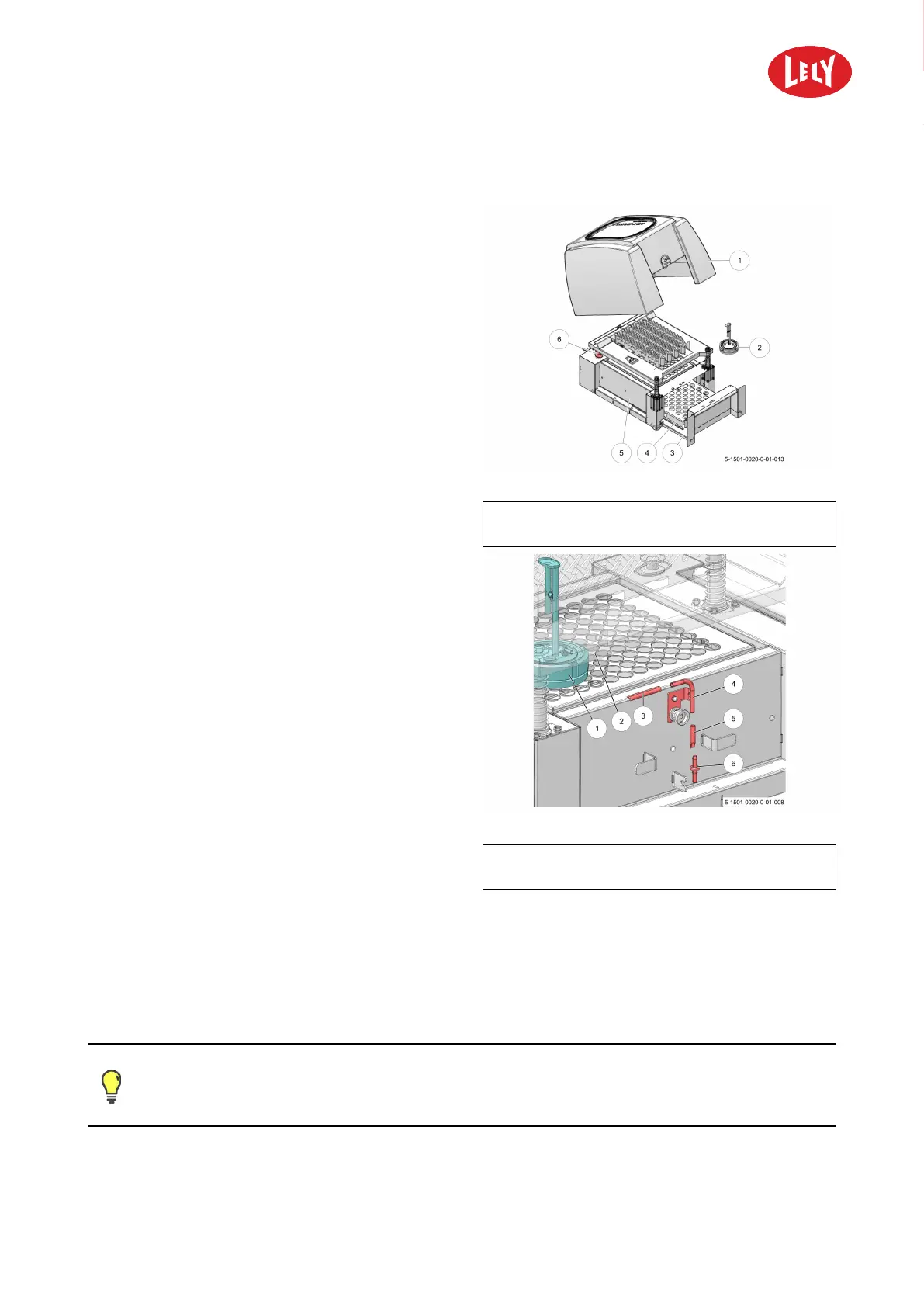

Figure 29. Shuttle
KEY: 1. Cover - 2. Spoon - 3. Tray - 4. Sample rack - 5. Frame
- 6. Syringe
1. Place the sample rack (4) onto the tray (3) (see
figure 29 on page 6-4).
2. Slide the tray (3) with the sample rack (4) into the
Shuttle.
Figure 30. Place the spoon
KEY: 1. Spoon - 2. Frame - 3. Tube (to spoon) - 4. Tube
connection piece - 5. Tube (from milking robot) - 6. Nipple
3. Connect tube (3) from the connection piece (4)
(see figure 30 on page 6-4).
4. Place the spoon (1) onto the Shuttle.
6.2 Monthly Maintenance
6.2.1 Examine the Serrated Frame
A distorted serrated frame can lead to the spoon valve opening too early, with
insufficient milk being dispensed into the sample bottle, or the spoon becoming jammed.
