Operating Instructions 5-7
5.4.1.2 Sample Rack
Install the Sample rack and Place the Sample Bottles

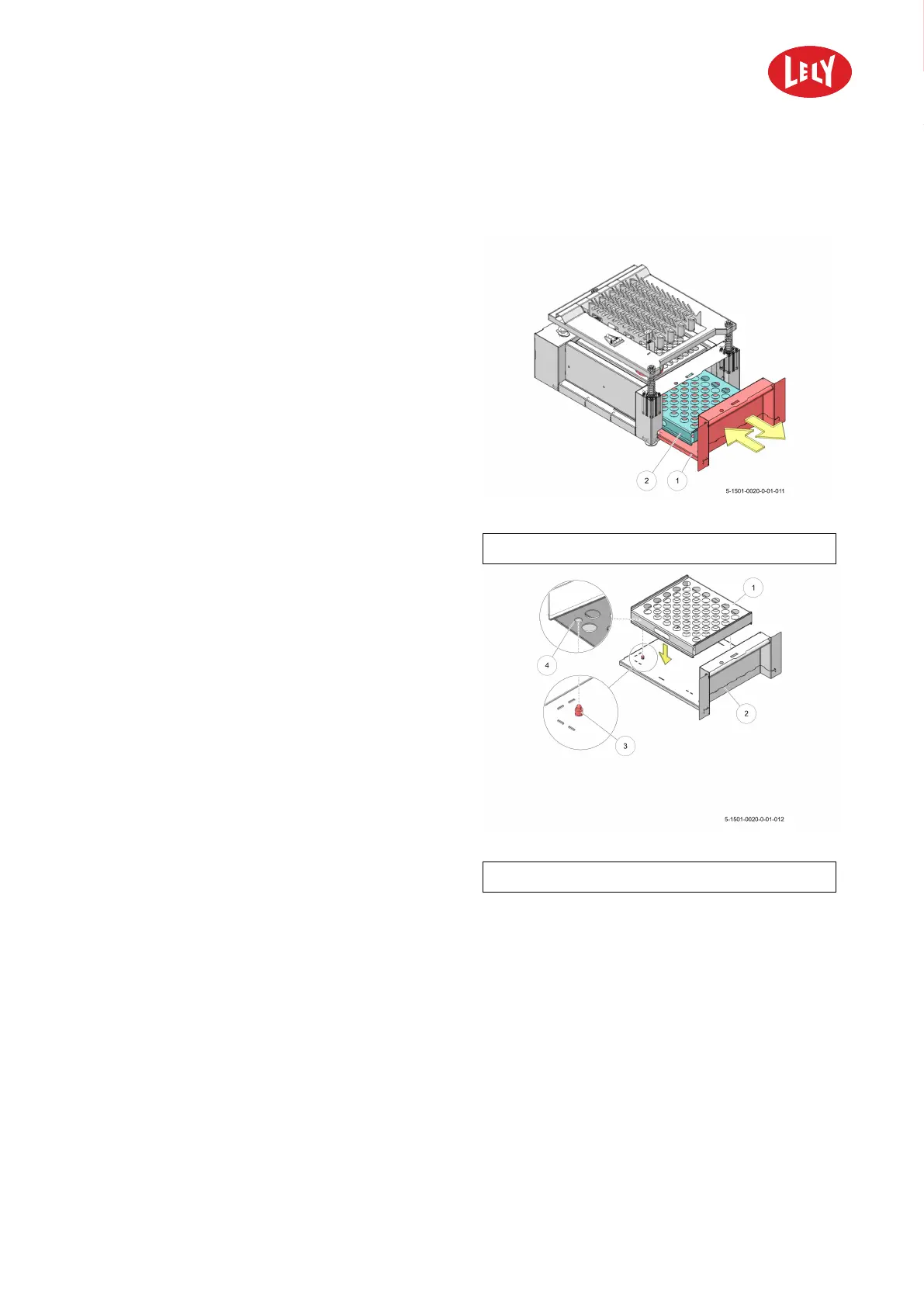

Figure 9. Sample rack
KEY: 1. Sample rack - 2. Tray
1. Slide out the tray (2) from the Shuttle (see figure
9 on page 5-7).
Figure 10. Install the sample rack
KEY: 1. Sample rack - 2. Tray - 3. Pin - 4. Hole in sample rack
2. Remove the caps from the sample bottles, and
place the bottles in the sample rack (1) (see
figure 10 on page 5-7).
3. Install the sample rack (1) on the tray (2).
4. Slide the tray (2) into the Shuttle.
