5.1501.8502.0 A
6-2 Maintenance
6.1.2 Preparation

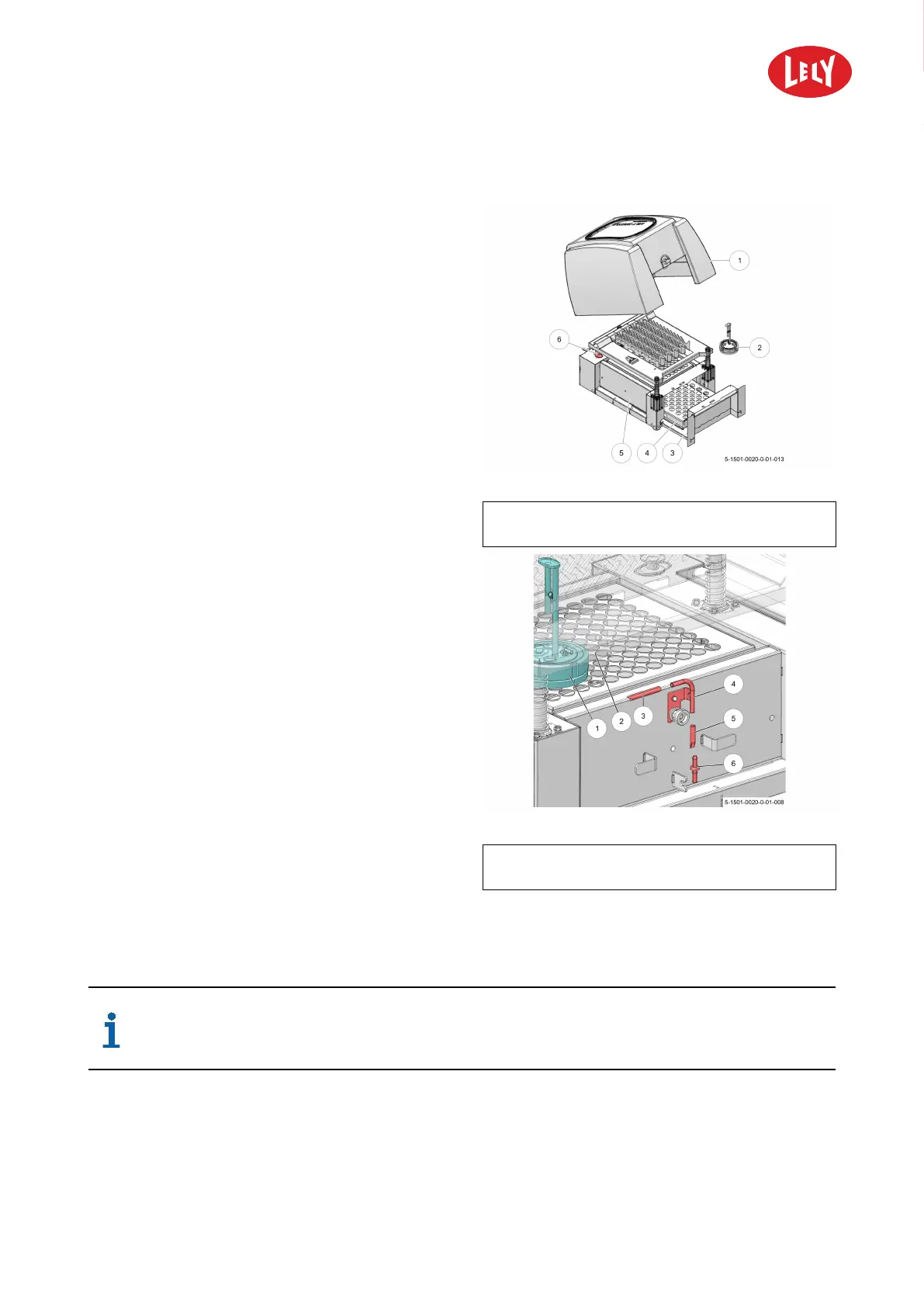

Figure 25. Shuttle
KEY: 1. Cover - 2. Spoon - 3. Tray - 4. Sample rack - 5. Frame
- 6. Syringe
1. Remove the cover (1) (see figure 25 on page 6-2).
2. Slide out the tray (3) with the sample rack (4).
3. Close the bottles.
Figure 26. Remove the spoon
KEY: 1. Spoon - 2. Frame - 3. Tube (to spoon) - 4. Tube
connection piece - 5. Tube (from milking robot) - 6. Nipple
4. Remove the spoon (1) from the frame (2) (see
figure 26 on page 6-2).
5. Disconnect tube (3) from the connection piece
(4).
6.1.3 Clean
Whenever disassemble multiple spoon assemblies, make sure to keep the parts for each
assembly separate from one another.
in n o vato rs in agriculture
