LELY Shuttle - Spoon

5.1501.8502.0 A
4-2 Description and Operation
4.1.2 Spoon

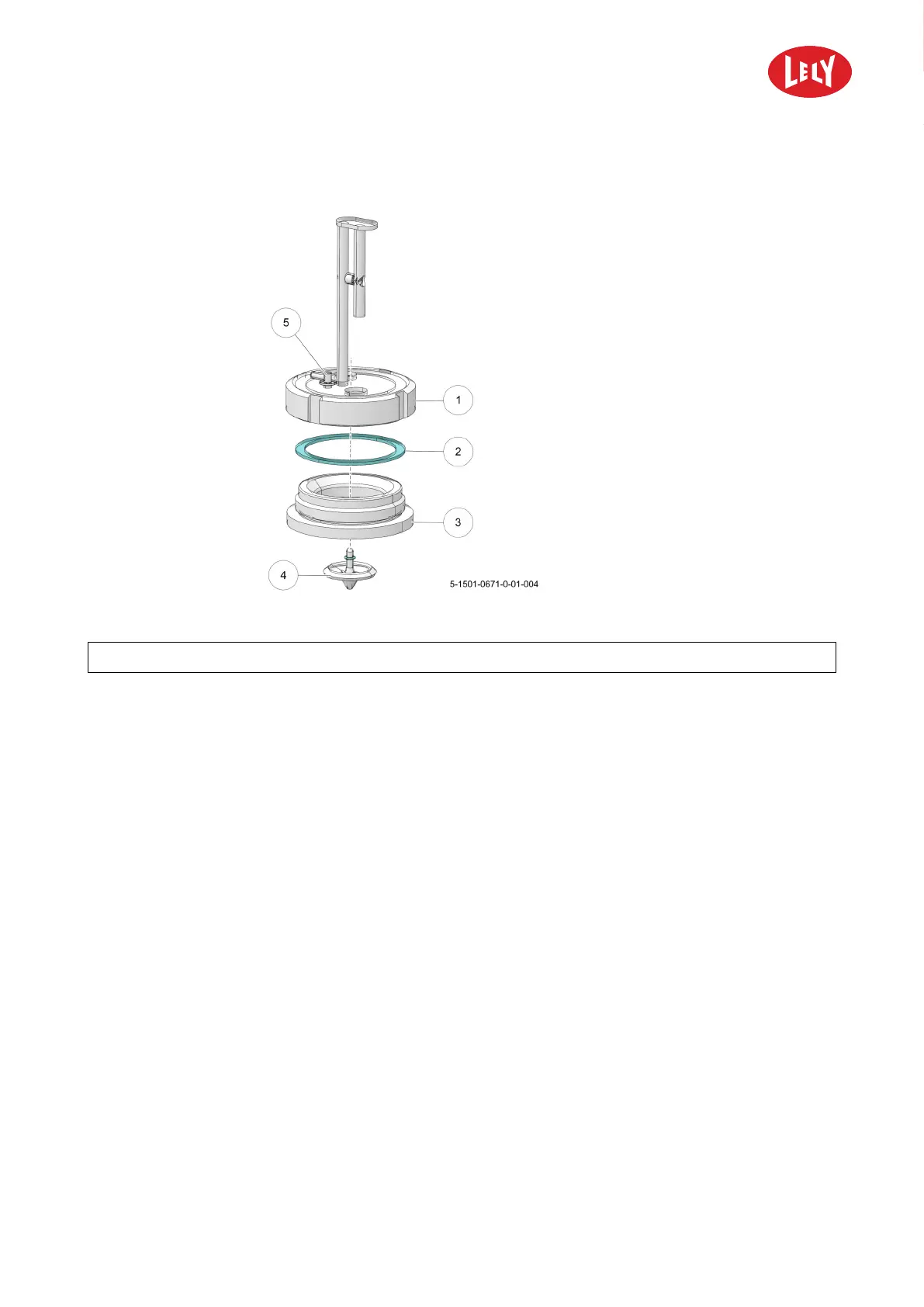

Figure 4. Spoon
KEY: 1. Swivel - 2. Seal - 3. Float chamber - 4. Valve - 5. Tube connection piece
• Options for float chamber volume:
• 10 ml (0.34 oz).
• 18 ml (0.61 oz).
• 30 ml (1.01 oz).
• 50 ml (1.69 oz).
