4 Description and Operation
4.1 Component Description
4.1.1 Component Description
The sampling device (see figure 3 on page 4-1) has the following main parts:
• Cover.
• Frame + Serrated frame + Spirit level.
• Spoon (see Spoon).
• Tray + optional sample rack (see Sample Rack (optional)).

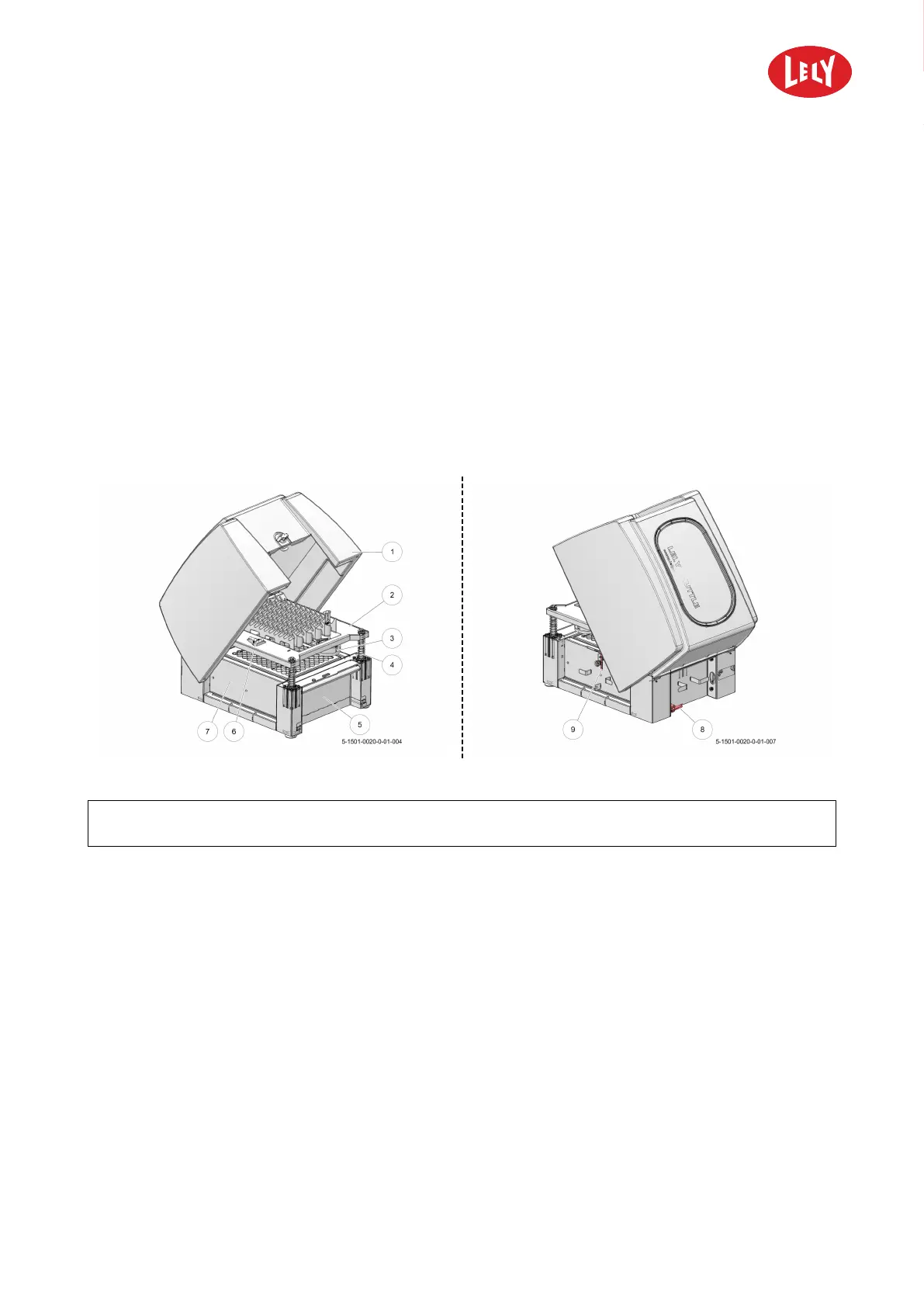

Figure 3. Main components
KEY: 1. Cover - 2. Serrated frame - 3. Spoon - 4. Pneumatic cylinder (4x) - 5. Tray + optional sample rack - 6. Spirit level - 7. Frame -
8. Air (Compressed air from milking robot) - 9. Milk tube connection (from milking robot)
