5.4.1.3 Place the Spoon at the Start Position

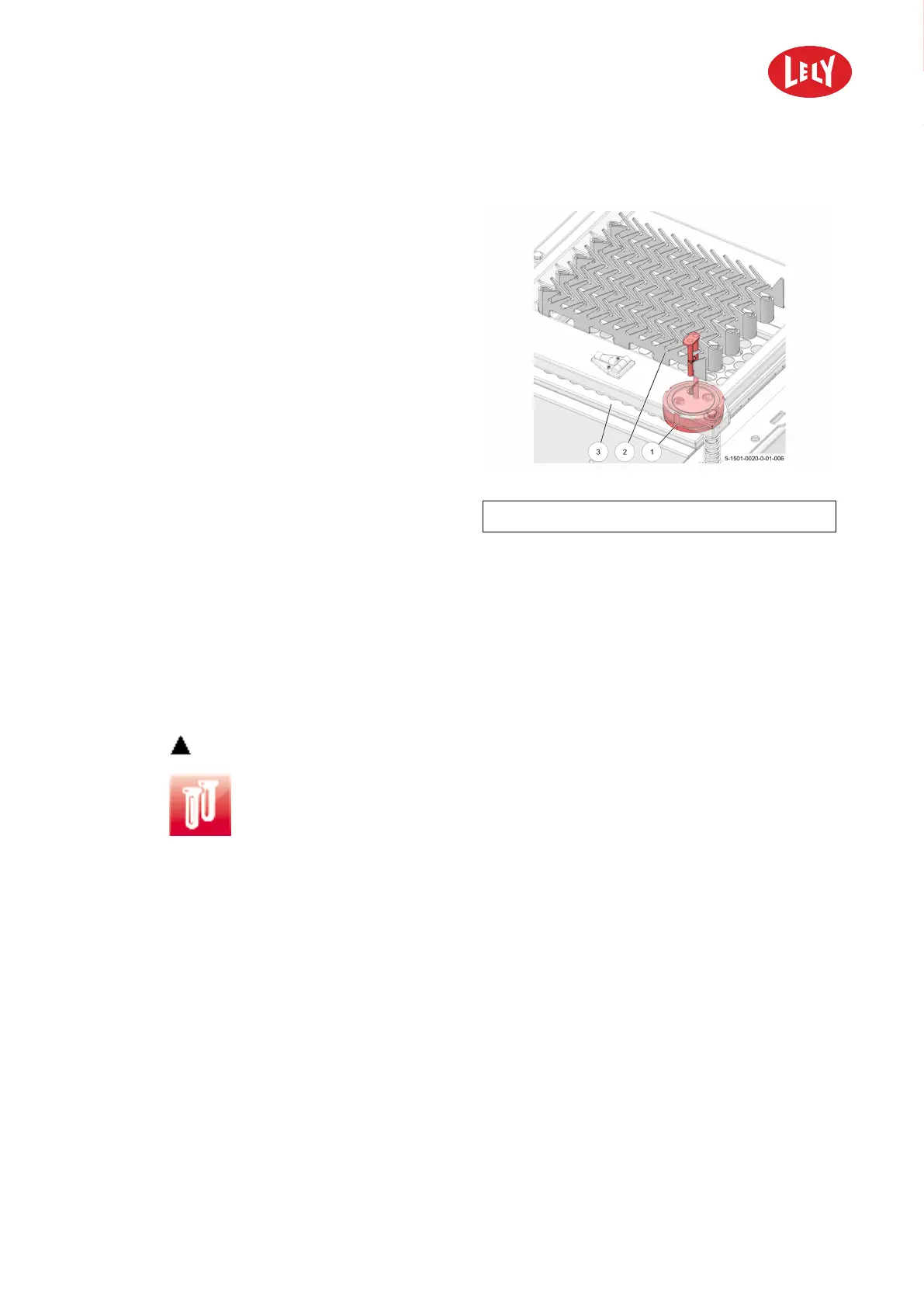

Figure 12. Place the Spoon
KEY: 1. Spoon - 2. Serrated frame - 3. Sample rack
1. Place the spoon (1) at the start position of the
serrated frame (2) above the sample rack (3) (see
figure 12 on page 5-9).
The spoon will be suspended above the sample
bottle in a rack (see Filling Sequence of Sample
Bottles).
5.4.2 Start Milk Sampling
5.4.2.1 Astronaut A4
Make the Tab Sampling Visible
On the E-Link select:
1. Button
to open the quick launch buttons bar.
2. Button
.
3. In the field Sampling device - Use shuttle, button Yes.
4. Select button Next.
Connect the Sampling Tube to the Milk Jar
1. On the E-Link select in the field Valve sampling button Open.
2. Open the door of the robot unit.
