LEMKEN Diamant 11 - Uncoupling the Implement

Attaching the implement
50

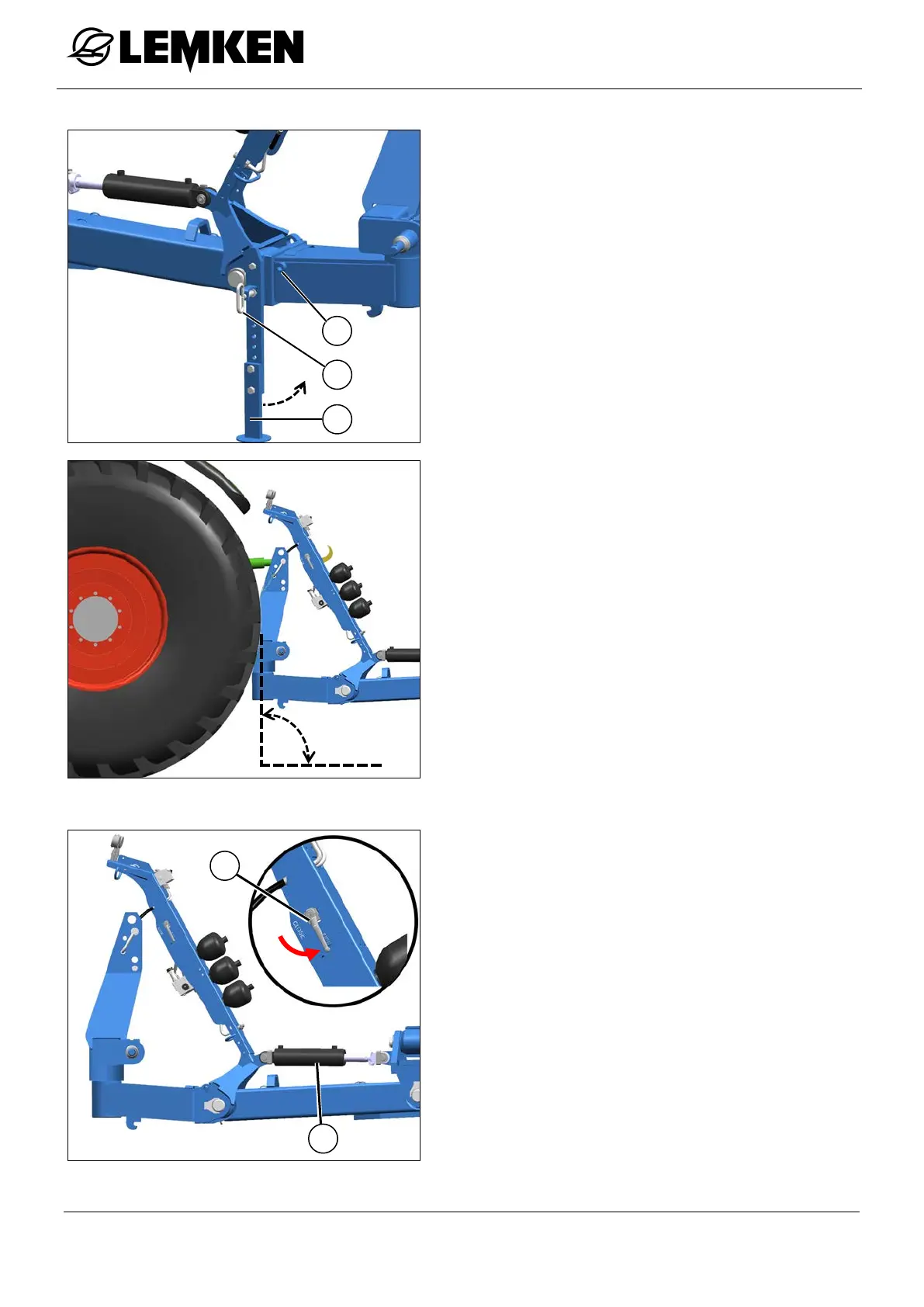

− Release the stand (6). To do this, pull
the handle on the spring-
loaded locking
pin (7).
−
Pivot the stand (6) upwards and secure
it with the locking pin (7).
o
Ensure that the locking pin (7)
engages in the hole (8).
− Adjust the length of the top link so that
the axis of the headstock (3) is vertical
when it is in the working position.
−
Connect the hydraulic hoses, see
«required, page 43».
Implement with traction increase device:
− The hydraulic pipes are connected to the
tractor. Open the shut-
off valve (10) on
the traction increase device (11).
−
Set the pressure required for the traction
increase device. See «Changing
, page
126».
90°
10
11
8
7
6
