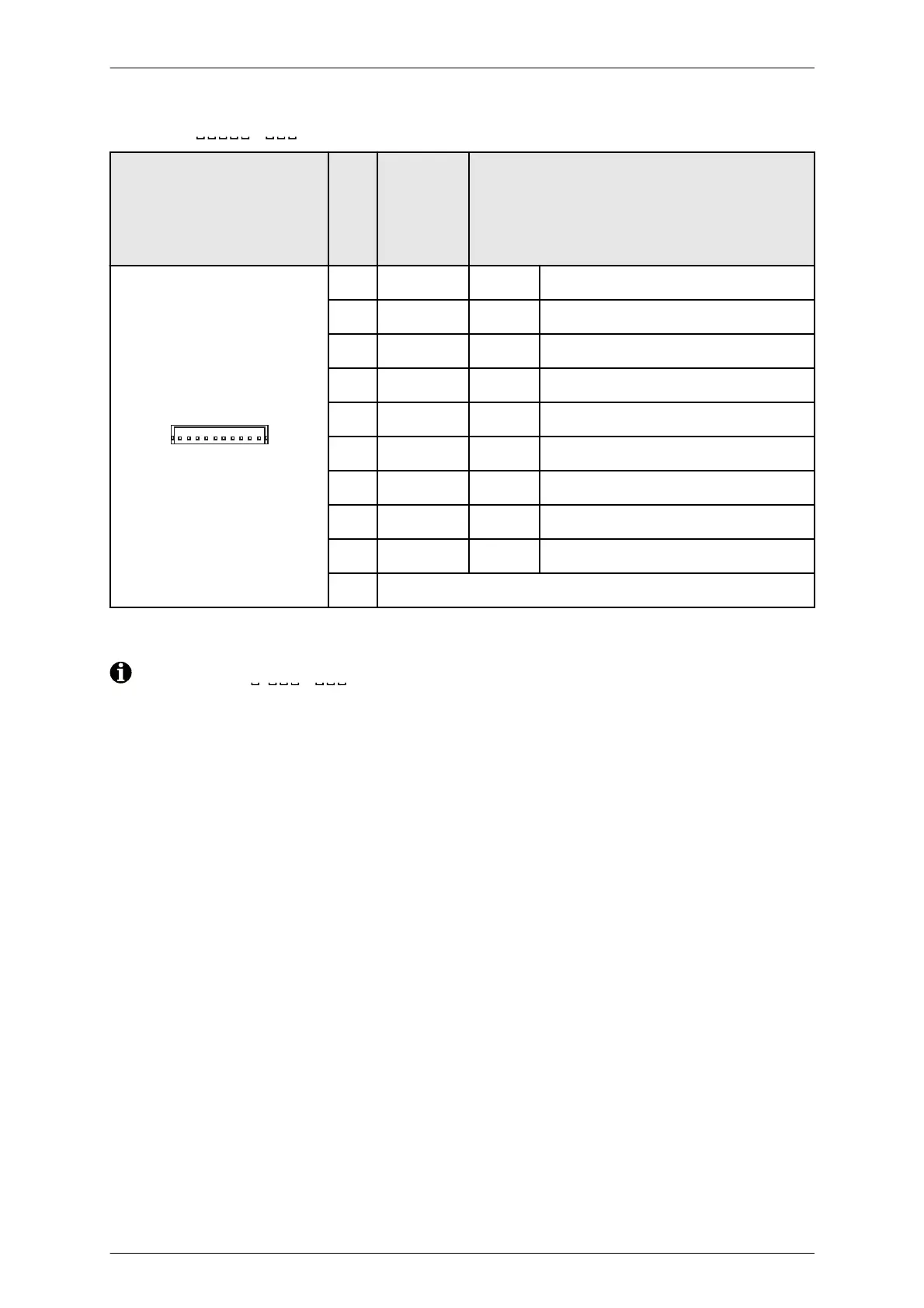

Lenord+Bauer 10 Pin layouts
GEL 2444 75
English
GEL 2444 K -
Flying lead
1)
10-pin female connector,
GEL 2444␣␣␣␣␣P␣␣␣-,
(Mating view)
Pin Core
colour
Signal / function
1
1red U
B
+ 5 V supply voltage
2white U
1+
Signal track 1
3brownU
1–
Inverse signal track 1
4pink U
2+
Signal track 2
5black U
2–
Inverse signal track 2
6green U
Sense
5 V Sense
7grey U
N+
Signal reference track N
8yellowU
N–
Inverse signal reference track N
9blue 0 V GND
10 Not used
1)
The delivery takes place with connected test plug from Lenord+Bauer.
GEL 2444 - K -:
The yellow and the grey core carry power. Insulate the cores or connect the
cores via resistors (> 2 kΩ) to U
B
or 0 V.
