10 Pin layouts Lenord+Bauer
76 GEL 2444
English

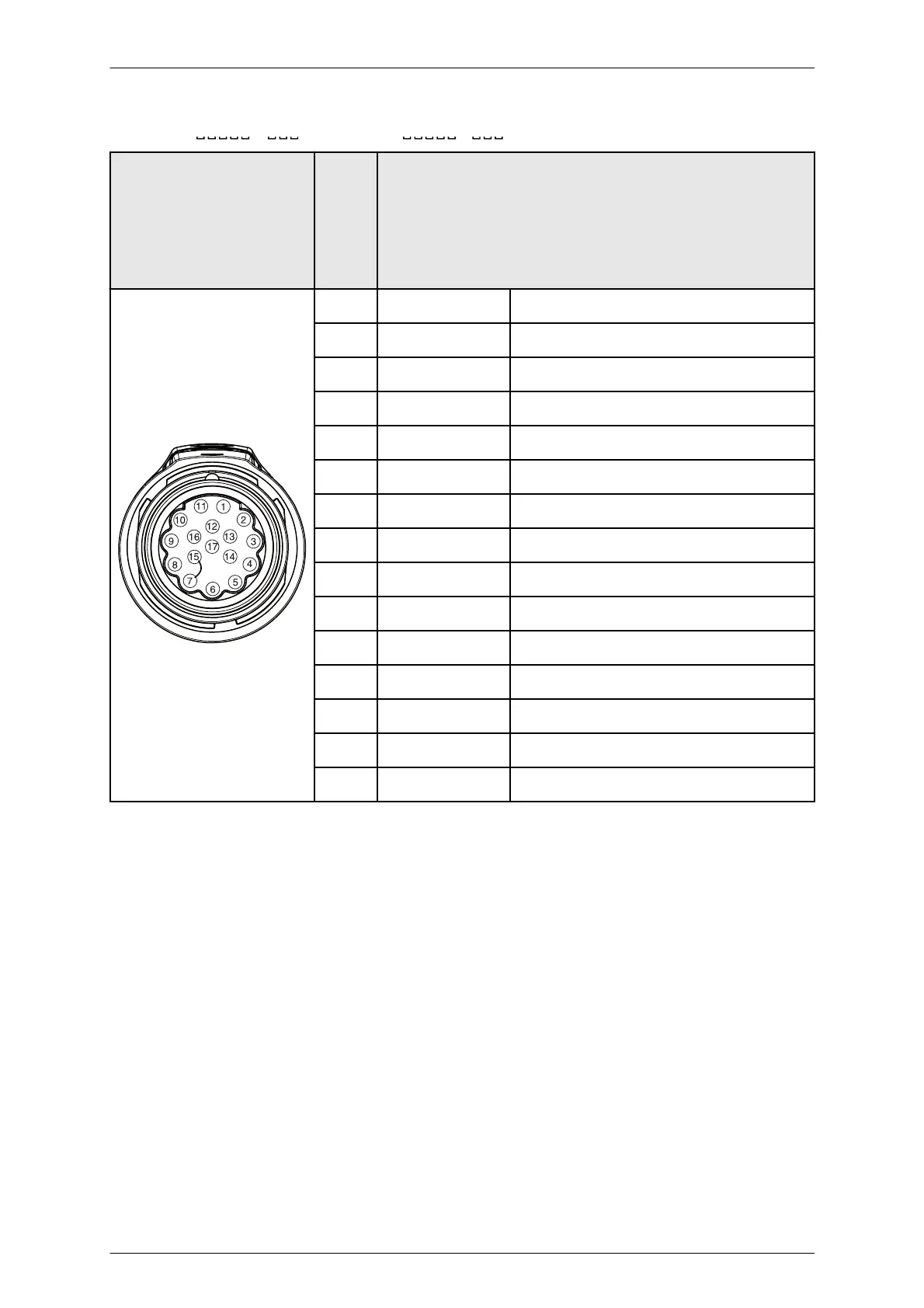

GEL 2444 M -, GEL 2444 N -
17-pin
panel-mounting
socket
with pin contacts
(Mating view)
Pin Signal / function
1U
1+
Signal track 1
2U
1–
Inverse signal track 1
3U
N+
Signal reference track N
4 – 6 Not used
7 0 V GND
8 Not used
9 Not used
10 U
B
+ 5 V supply voltage
11 U
2+
Signal track 2
12 U
2–
Inverse signal track 2
13 U
N–
Inverse signal reference track N
14 Not used
15 0 V GND (jumper pin 7)
16 U
Sense
5 V Sense
17 Not used
