11.Removealleightscrewsthatsecurethecomputermainbrackettothefrontbezel.

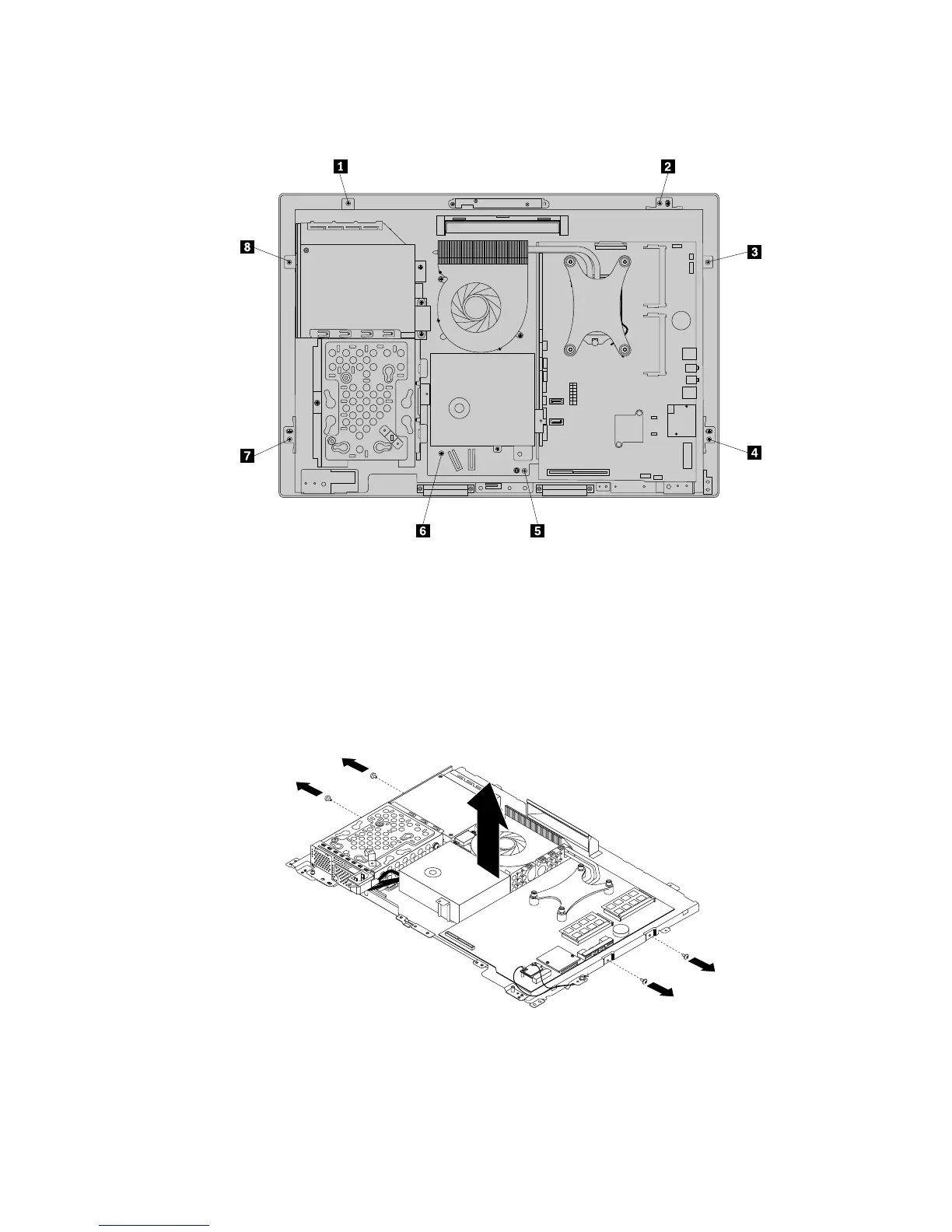

Figure44.Removingalleightscrewsthatsecurethecomputermainbrackettothefrontbezel
12.Notethelocationsofallcableconnectionsthatpreventyoufromliftingthecomputermainbracket,and
disconnectallcables.See“Locatingpartsonthesystemboard”onpage69.
13.Removetheintegratedcamera.See“Replacingtheintegratedcamera”onpage100
14.Liftthecomputermainbracketoffthefrontbezel.
15.RemovethefourscrewsthatsecurethechassistotheLCDpanel,andthenliftthechassisoutof
thecomputertogetassesstotheLCDpanel.
Figure45.RemovingthefourscrewsthatsecuretheLCDpanel
16.PlacethecomputerchassisoverthenewLCDpanelsothatthefourscrewholesalignwiththoseinthe
chassis.ReinstallthefourscrewstosecuretheLCDpaneltothechassis.
Chapter9.ReplacingFRUs105
