2.Ifyouwanttoinstalla3.5-inchHDDundertheslim-optical-drivebracket,removetheslim-optical-drive
bracketfirst.See“Removingtheslim-optical-drivebracket”onpage70
.
3.Removetheold3.5-inchHDDinyourserver.See“Removinga2.5-inchharddiskdrive”onpage72.
4.Installthenew3.5-inchHDDintothebracket.

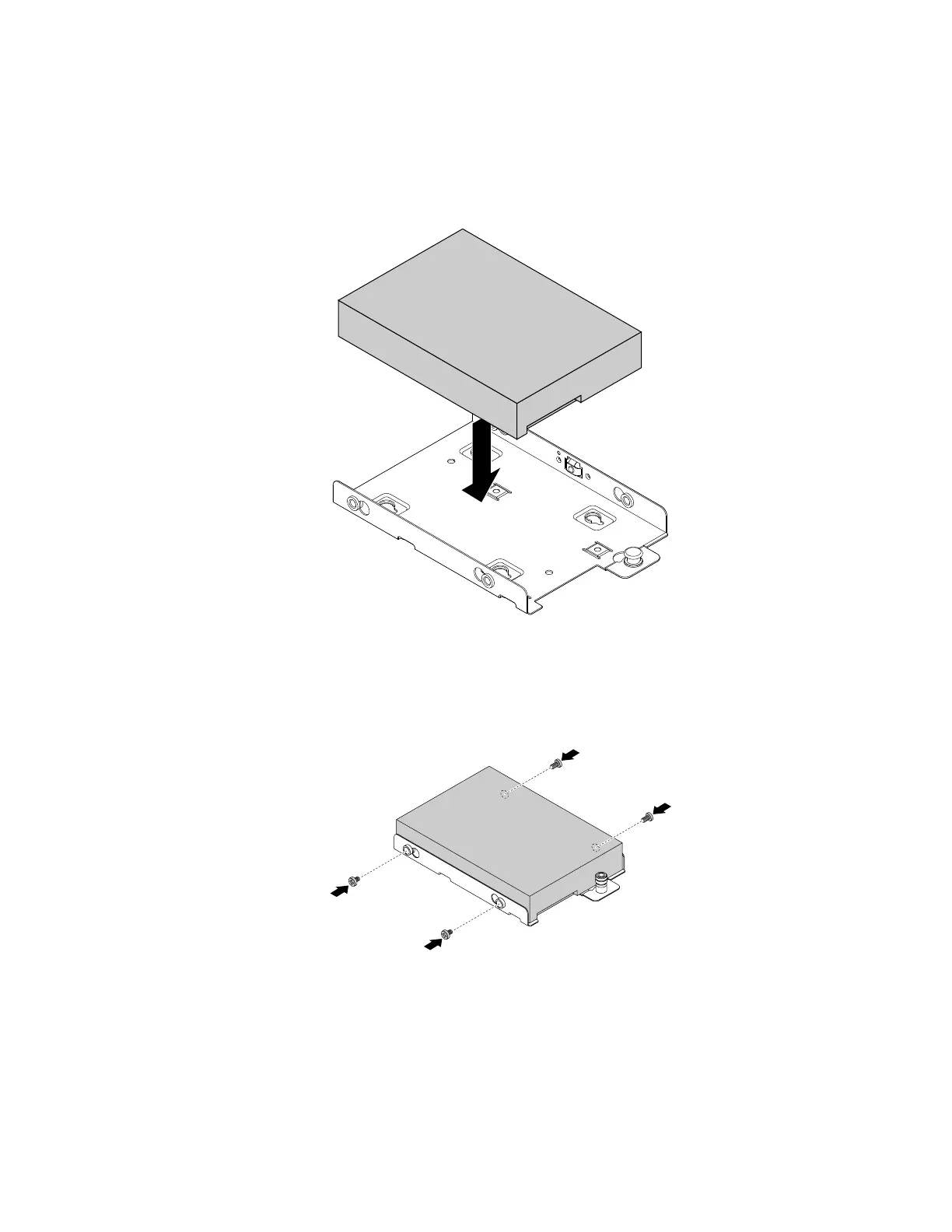

Figure56.Installingthe3.5-inchHDDintothebracket
5.AlignthefourscrewholesintheHDDwiththecorrespondingholesinthebracket.Then,installthe
fourscrewstosecuretheHDDtothebracket.
Figure57.Installingthescrewstosecurethe3.5-inchHDDtobracket
Chapter5.Replacinghardware77
