11.PositionthenewAnyRAIDadapternearthebackplane.Then,carefullypressthenewAnyRAIDadapter
straightintotheAnyRAID-adapterslotsuntilitissecurelyseated.Tightenthetwoscrewstosecurethe
newAnyRAIDadapterinplace.

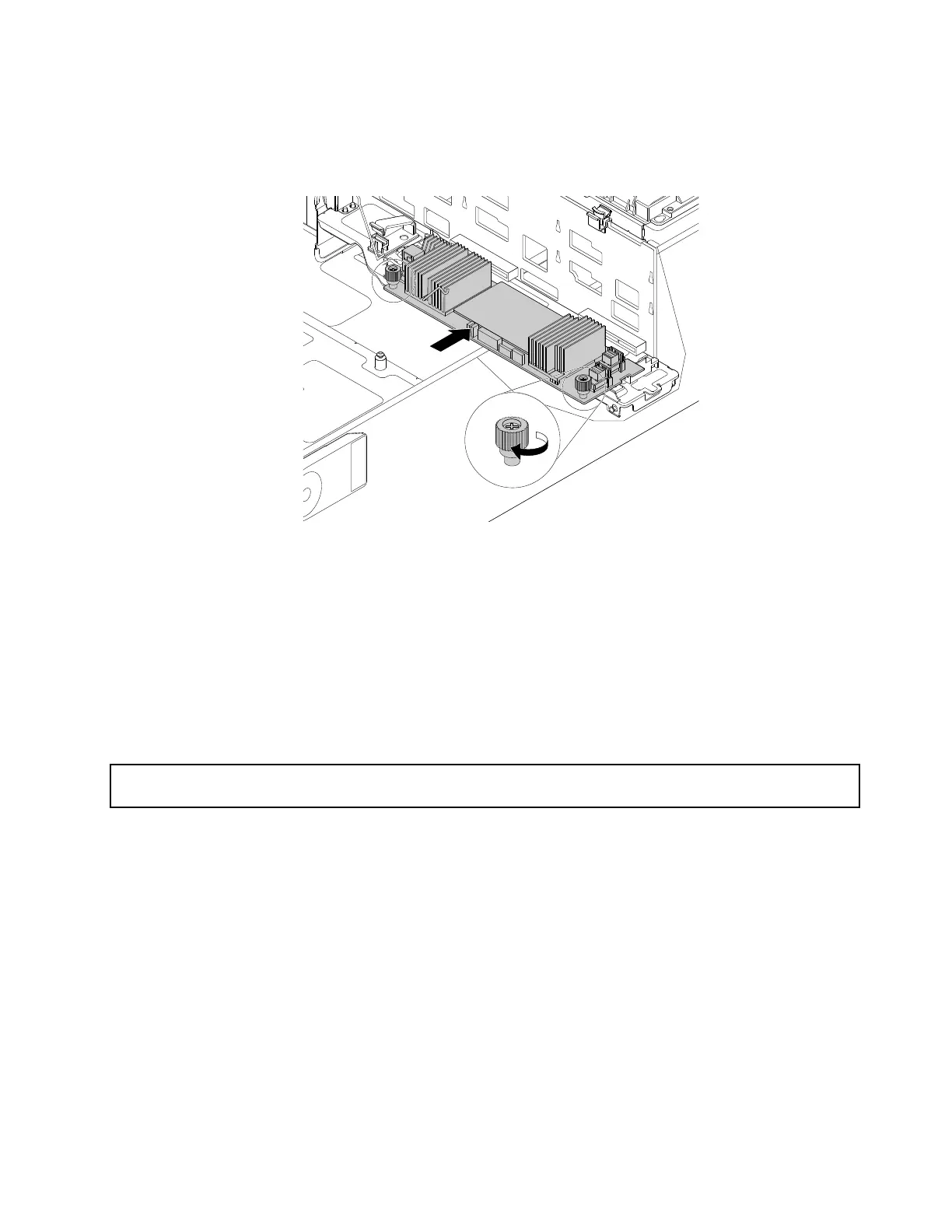

Figure132.InstallingtheAnyRAIDadapter
12.ReinstalltheAnyRAID-adapterairduct(ifavailable).
13.Reconnectthecables.See“Connectingcables”onpage44.
Whattodonext:
•Toworkwithanotherpieceofhardware,gototheappropriatesection.
•Tocompletethereplacementprocedure,goto“Completingthepartsreplacement”onpage180
.
Replacingthehot-swap-drivebackplane
Attention:Donotopenyourserverorattemptanyrepairbeforereadingandunderstanding“Readthisfirst:safety
information”onpageiiiand“Guidelines”onpage69.
Thistopicappliesonlytoservermodelsthathavehot-swapinternalstoragedrivesinstalled.
Beforeyoubegin,printalltherelatedinstructionsorensurethatyoucanviewthePDFversiononanother
computerforreference.
Notes:
•Thehot-swap-drivebackplaneissensitivetoESD.Ensurethatyoureadandunderstand“Handling
static-sensitivedevices”onpage70
firstandcarefullyperformtheoperation.
•Dependingonthemodel,yourservermightlookslightlydifferentfromtheillustrationsinthistopic.
•Useanydocumentationthatcomeswiththenewhot-swap-drivebackplaneandfollowthoseinstructions
inadditiontotheinstructionsinthistopic.
Toreplacethehot-swap-drivebackplane,dothefollowing:
Chapter6.Replacinghardware163
