Lenovo ThinkSystem SR860 V2 User Manual

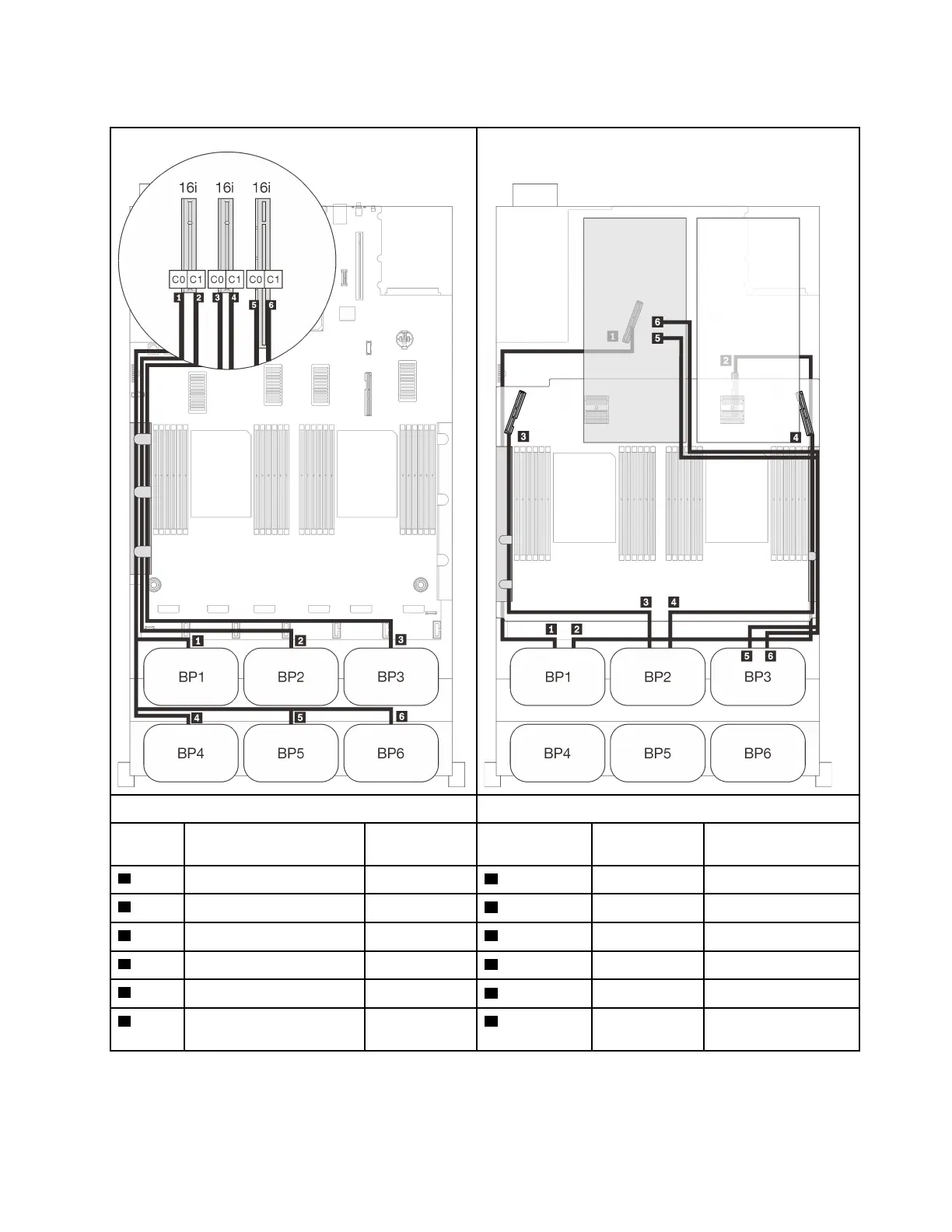

16i + 16i + 16i RAID adapters
SAS/SATA cable routing PCIe cable routing
Length
To
NVMe
connector
Length
To
1
665 mm
C0 (16i)
1 0-1, 2-3 670 mm
PCIe 1 (on-board)
2
860 mm
C1 (16i)
2 4-5, 6-7 910 mm
PCIe 2 (on-board)
3
1000 mm
C0 (16i)
3 0-1, 2-3 530 mm
PCIe 3 (tray)
4
665 mm
C1 (16i)
4 4-5, 6-7 670 mm
PCIe 6 (tray)
5
820 mm
C0 (16i)
5 0-1, 2-3 1100 mm
C0, C1 (Slot 10)
6
• Gen3: 930 mm
• Gen4: 945 mm
C1 (16i)
6 4-5, 6-7 1100 mm
C0, C1 (Slot 12)
Chapter 3. Internal cable routing 135

Lenovo ThinkSystem SR860 V2 Specifications

General

Expansion Slots	Up to 8 PCIe 4.0 slots
RAID Support	RAID 0, 1, 5, 6, 10, 50, 60
Network	Multiple 1Gb, 10Gb, or 25Gb Ethernet options
Power Supply	Redundant hot-swap power supplies
Operating System Support	Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware vSphere
Management	Lenovo XClarity Controller (XCC)
