AnyBay/NVMe drive backplane
See this section to locate the connectors on the AnyBay/NVMe drive backplanes.

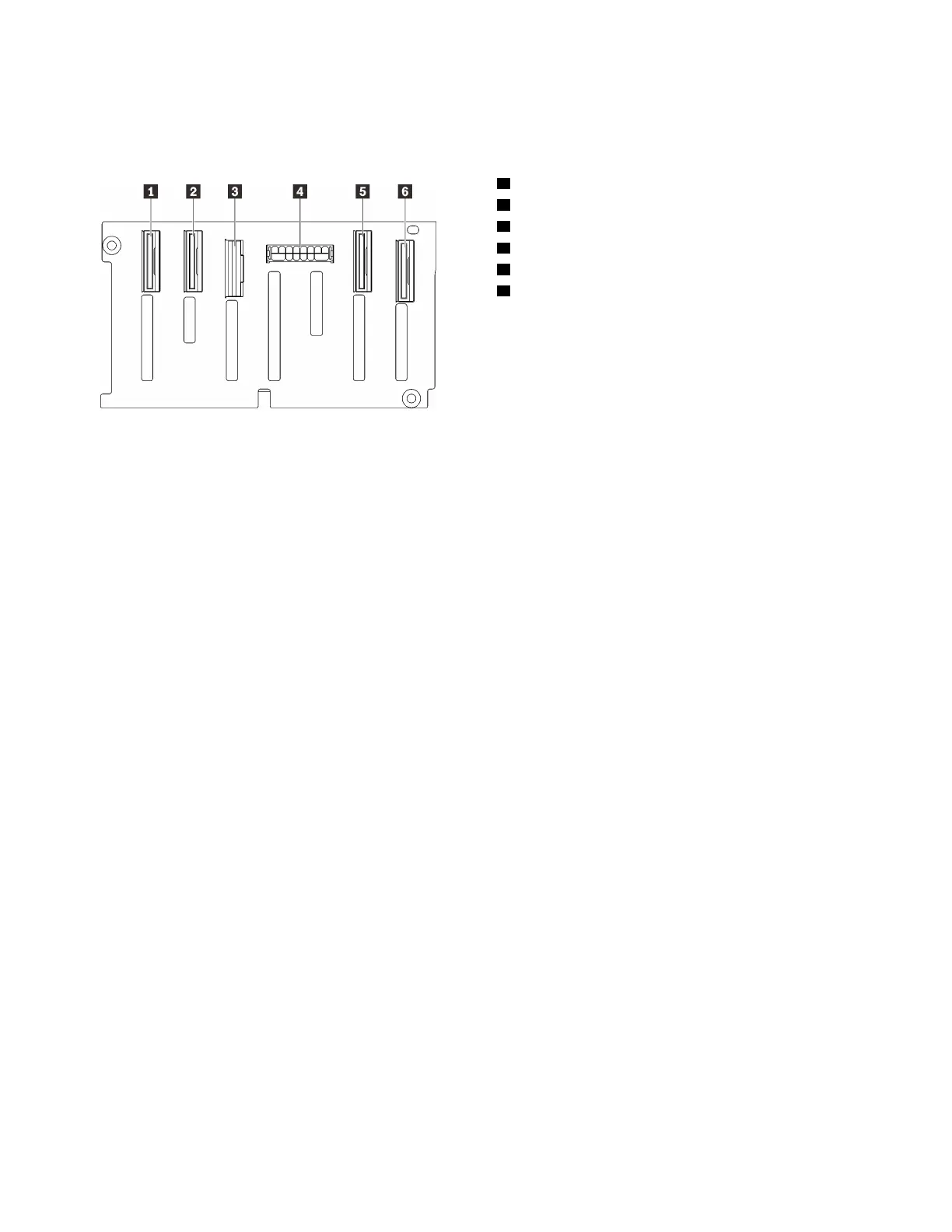

Figure 14. AnyBay/NVMe drive backplane connectors
1 NVMe signal connector (6-7)
2 NVMe signal connector (4-5)
3 SAS/SATA signal connector
4 Backplane power/configuration connector
5 NVMe signal connector (2-3)
6 NVMe signal connector (0-1)
PCIe riser card connectors
See this section to locate the connectors on the PCIe riser cards.
Two types of riser cards are supported:
• “x16/x16 (x8 lanes) PCIe riser card” on page 35
• “x16/x16/x16 PCIe riser card” on page 36
