Step 1. Align the bottom connector on the backplane to the corresponding connector on the system board,
and push the backplane in.

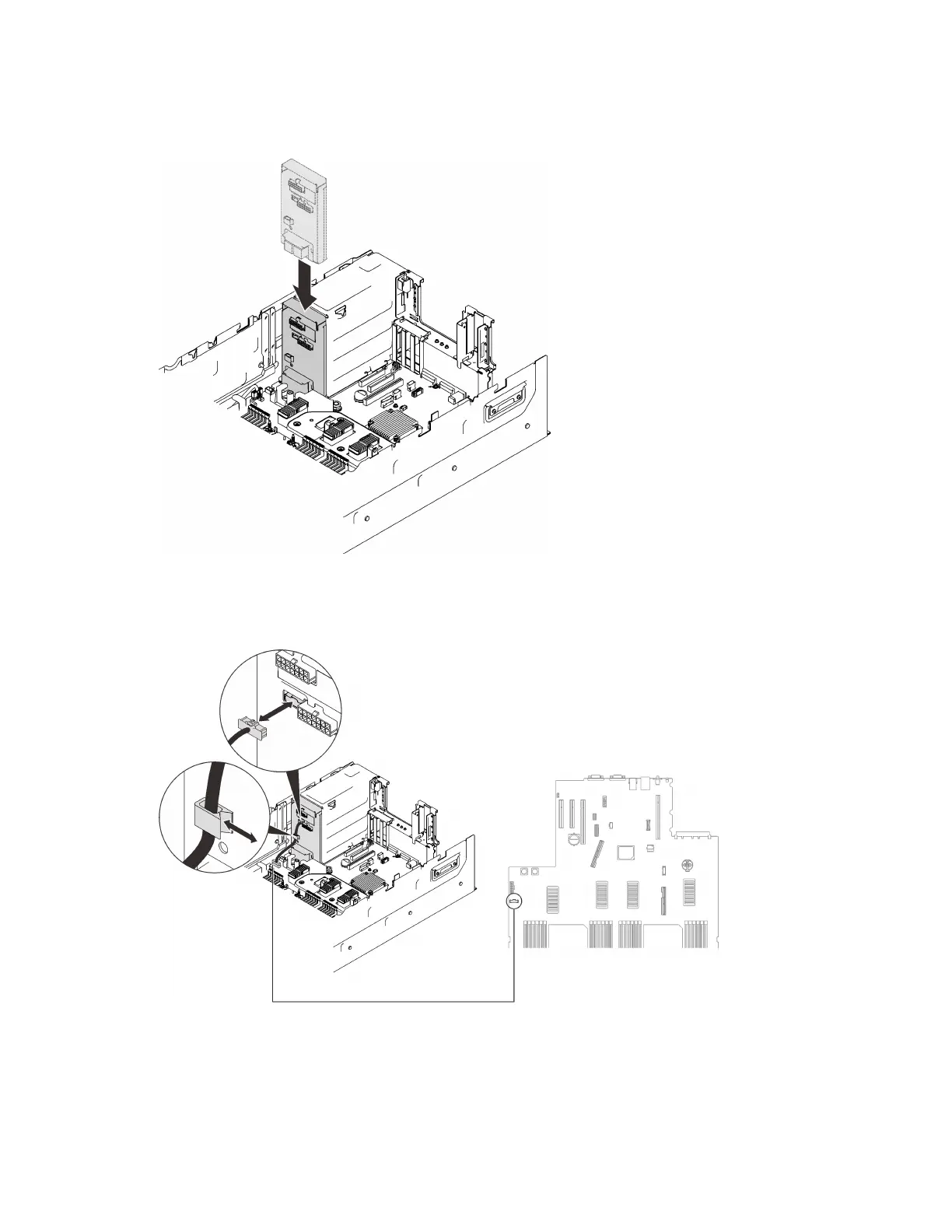

Figure 87. Installing the power backplane
Step 2. Route the power backplane cable through the cable clip, and connect it to the power backplane.
Figure 88. Connecting the power backplane cable
After this task is completed
Proceed to complete the parts replacement (see
“Complete the parts replacement” on page 282).
198
ThinkSystem SR860 V2 Maintenance Manual
