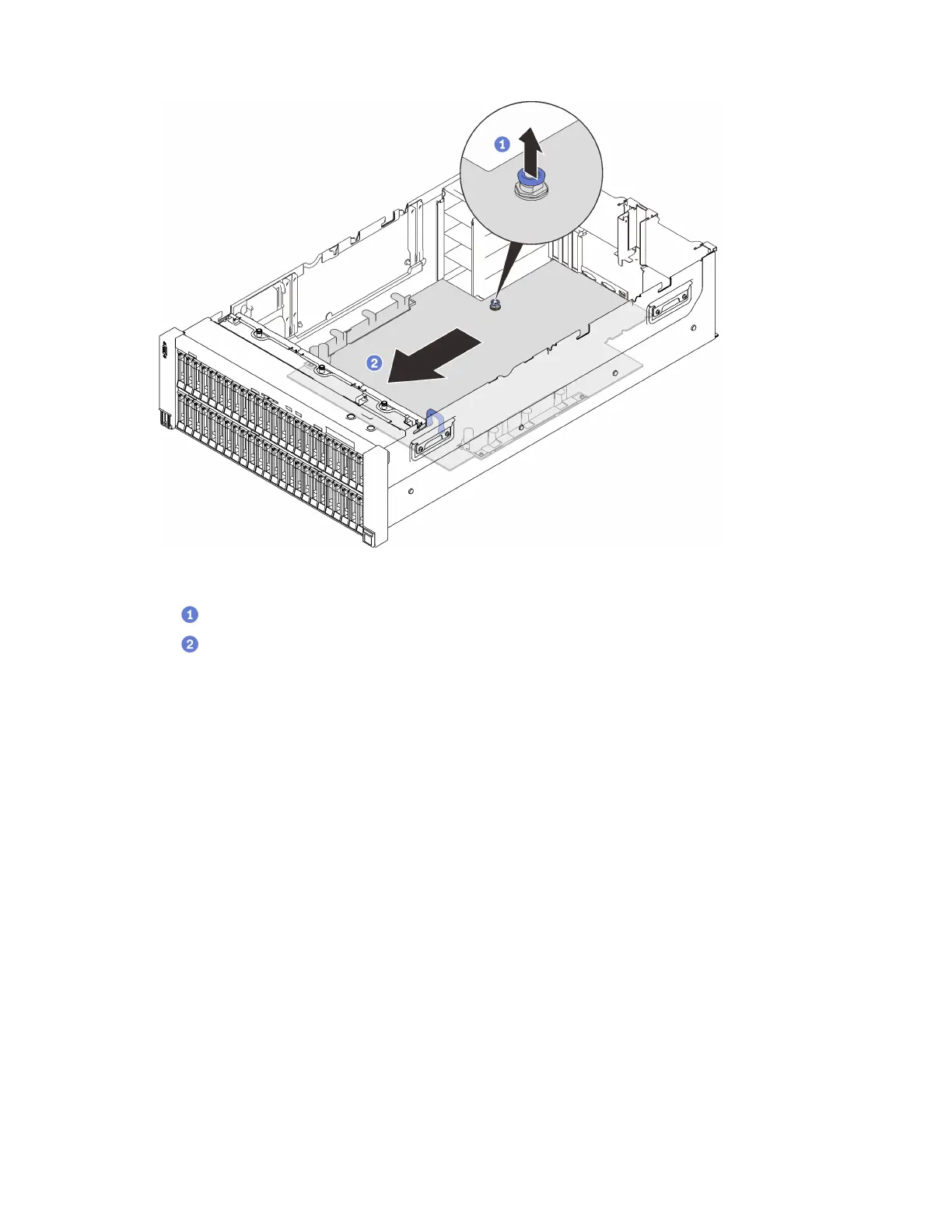

Figure 122. Disengaging the system board
Pull the captive screw up to release the system board.
Grasp the blue handle, and slide the system board back slightly to disengage it from the
chassis.
Note: This handle only serves the purpose of removing system board. Do not attempt to lift the
whole server with it.
Step 3. Rotate the longer side of the system board up, and remove the board from the server.
230
ThinkSystem SR860 V2 Maintenance Manual
