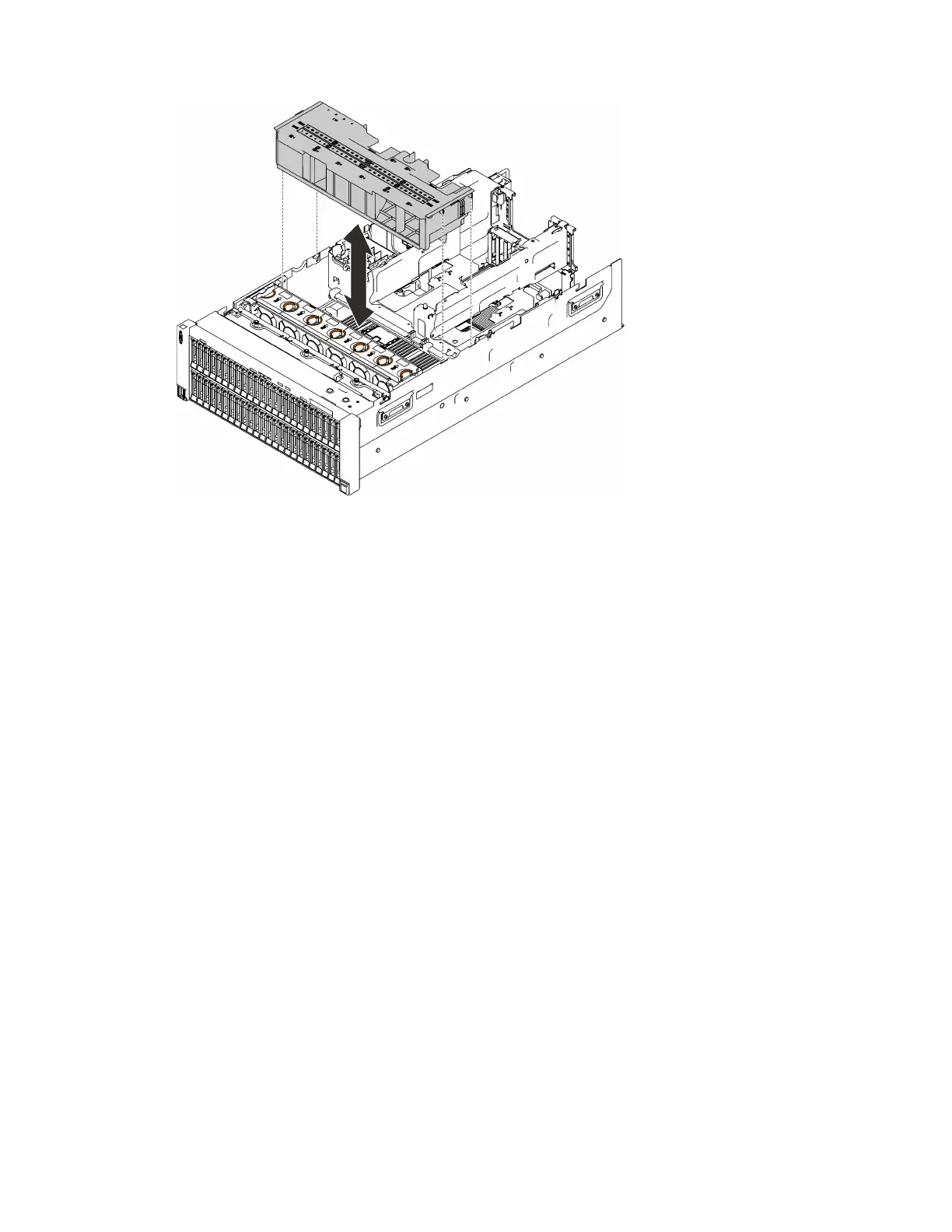

Figure 161. Removing the chassis air baffle
After this task is completed
If you are instructed to return the component or optional device, follow all packaging instructions, and use
any packaging materials for shipping that are supplied to you.
Demo video
Watch the procedure on YouTube
Install the chassis air baffle
Follow instructions in this section to install the chassis air baffle.
About this task
Attention:
• Go over
“Installation Guidelines” on page 137 to ensure that you work safely.
• Touch the static-protective package that contains the component to any unpainted metal surface on the
server; then, remove it from the package and place it on a static-protective surface.
Procedure
Step 1. Align the chassis air baffle with the guides on both sides of the server, and lower it until it stops.
Chapter 4. Hardware replacement procedures 271
