Two backplanes
Two NVMe backplanes
System board + processor and memory expansion tray

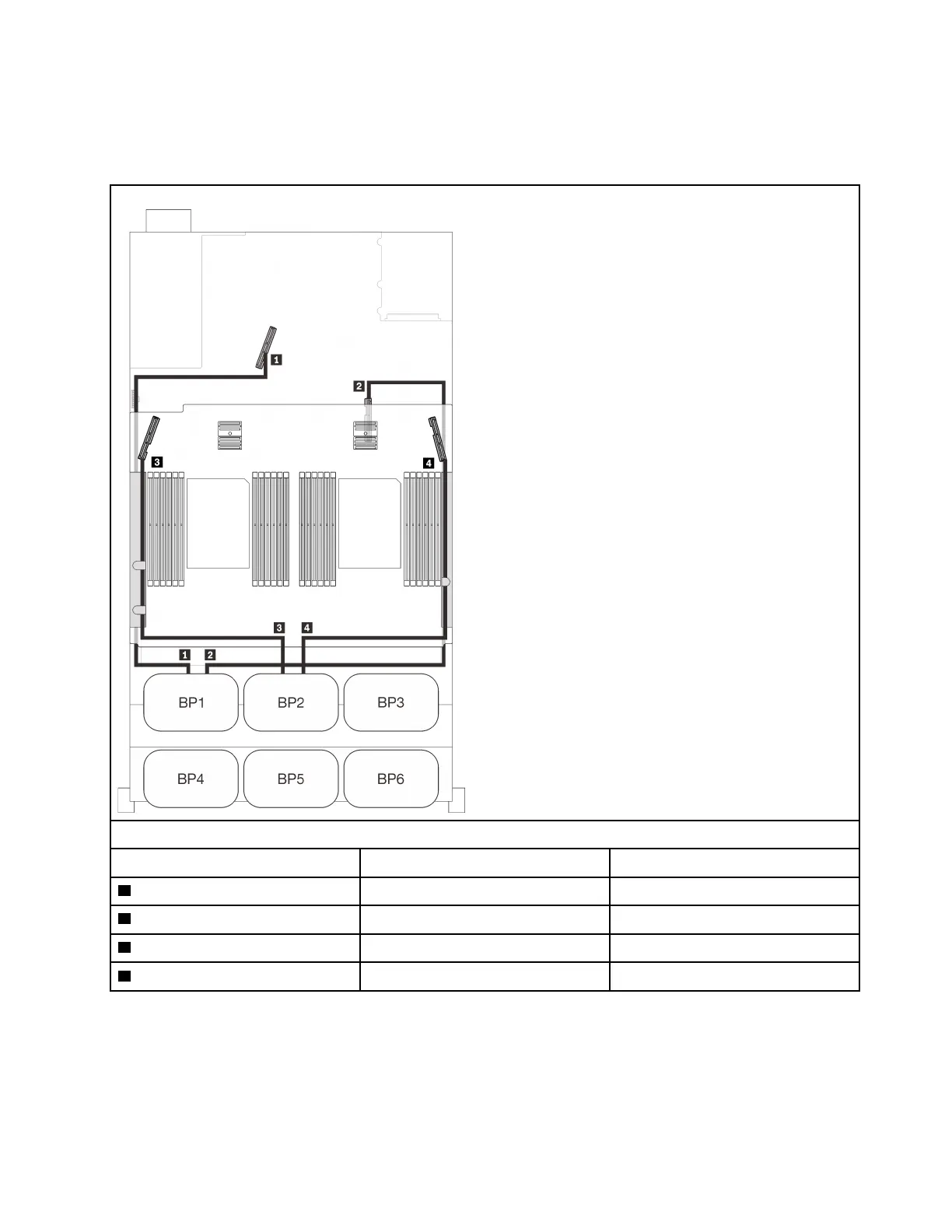

PCIe cable routing
NVMe connector
Length
To
1 0-1, 2-3 670 mm
PCIe 1 (on-board)
2 4-5, 6-7 910 mm
PCIe 2 (on-board)
3 0-1, 2-3 530 mm
PCIe 3 (tray)
4 4-5, 6-7 670 mm
PCIe 6 (tray)
