Lenovo ThinkSystem SR860 V2 - Page 83

Four backplanes
Three NVMe backplanes and one SAS/SATA backplane

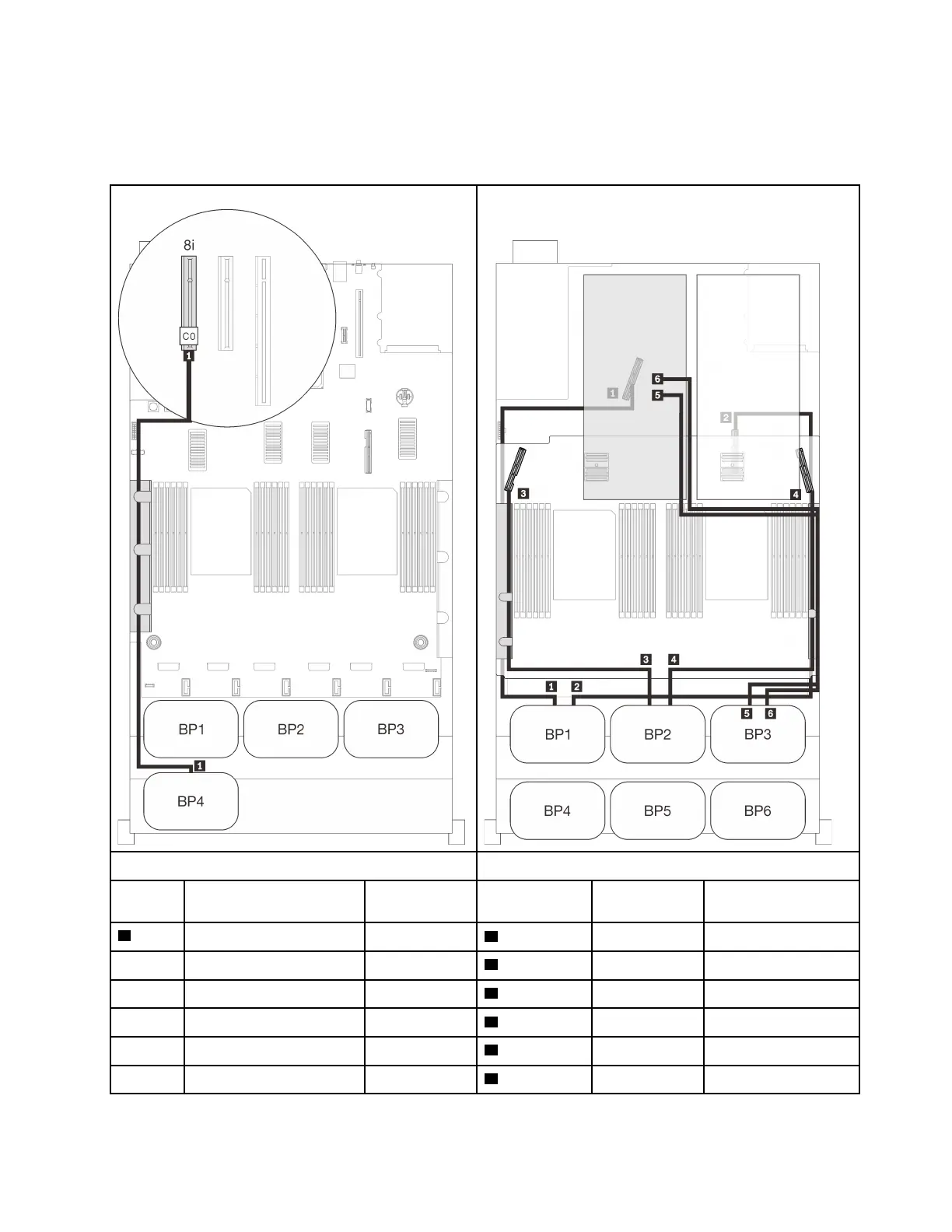

System board + processor and memory expansion tray + PCIe switch cards + 8i RAID adapter
SAS/SATA cable routing PCIe cable routing
Length
To
NVMe
connector
Length
To
1
820 mm
C0 (8i)
1 0-1, 2-3 670 mm
PCIe 1 (on-board)
2 4-5, 6-7 910 mm
PCIe 2 (on-board)
3 0-1, 2-3 530 mm
PCIe 3 (tray)
4 4-5, 6-7 670 mm
PCIe 6 (tray)
5 0-1, 2-3 1100 mm
C0, C1 (Slot 10)
6 4-5, 6-7 1100 mm
C0, C1 (Slot 12)
Chapter 3. Internal cable routing 75
