6 I/O terminals
6.3 User-defined terminal assignment
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _
6.3.1 Source-destination principle
The I/O configuration of the input and output signals is carried out according to the source/desti-
nation principle:
• A connection always has a direction and therefore always has a source and a target.
• The input signals of the application are logically linked via configuration parameters to the out-
put signals of system blocks which represent the device input terminals.
• The inputs of system blocks that represent the device output terminals are logically to output
signals of the application via configuration parameters.

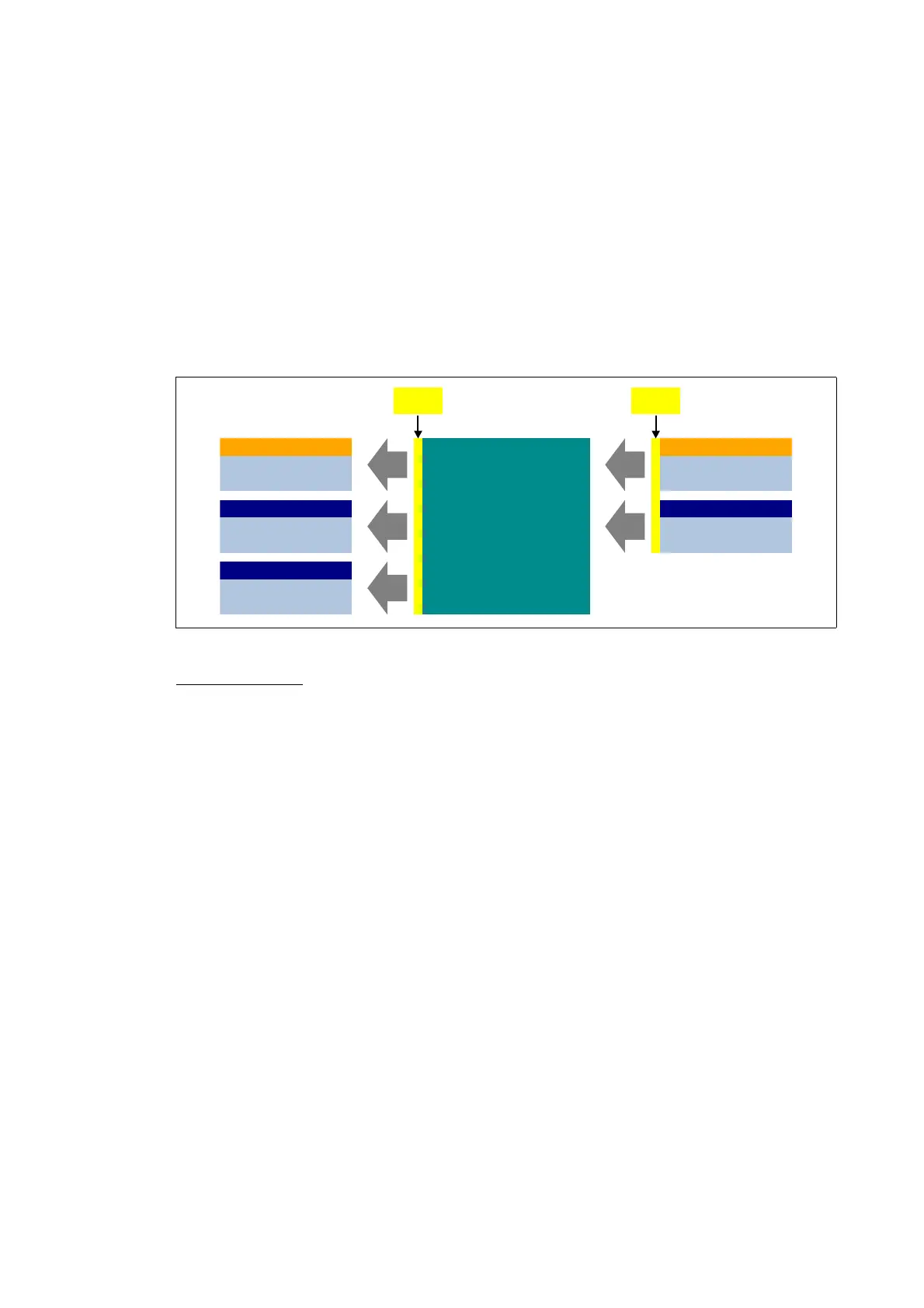

The following graphic illustrates the source/destination principle:
[6-2] Source-destination principle
Note the following:
• A device input terminal can be logically linked to several inputs of the application.
• Each input of the application can only be logically linked to one input signal.
• An output of the application can be logically linked to several device output terminals.
$SSOLNDWLRQ
$QWULHEVVFKQLWWVWHOOH
,QSXWV
,QSXWSRUWV
2XWSXWSRUWV

$SSOLFDWLRQ
'LJLWDOLQSXWV 'LJLWDORXWSXWV
$QDORJLQSXWV
,QSXWV
2XWSXWV
& &
& &
