11 Function library
11.15 LS_ParFree_b
_ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _ _

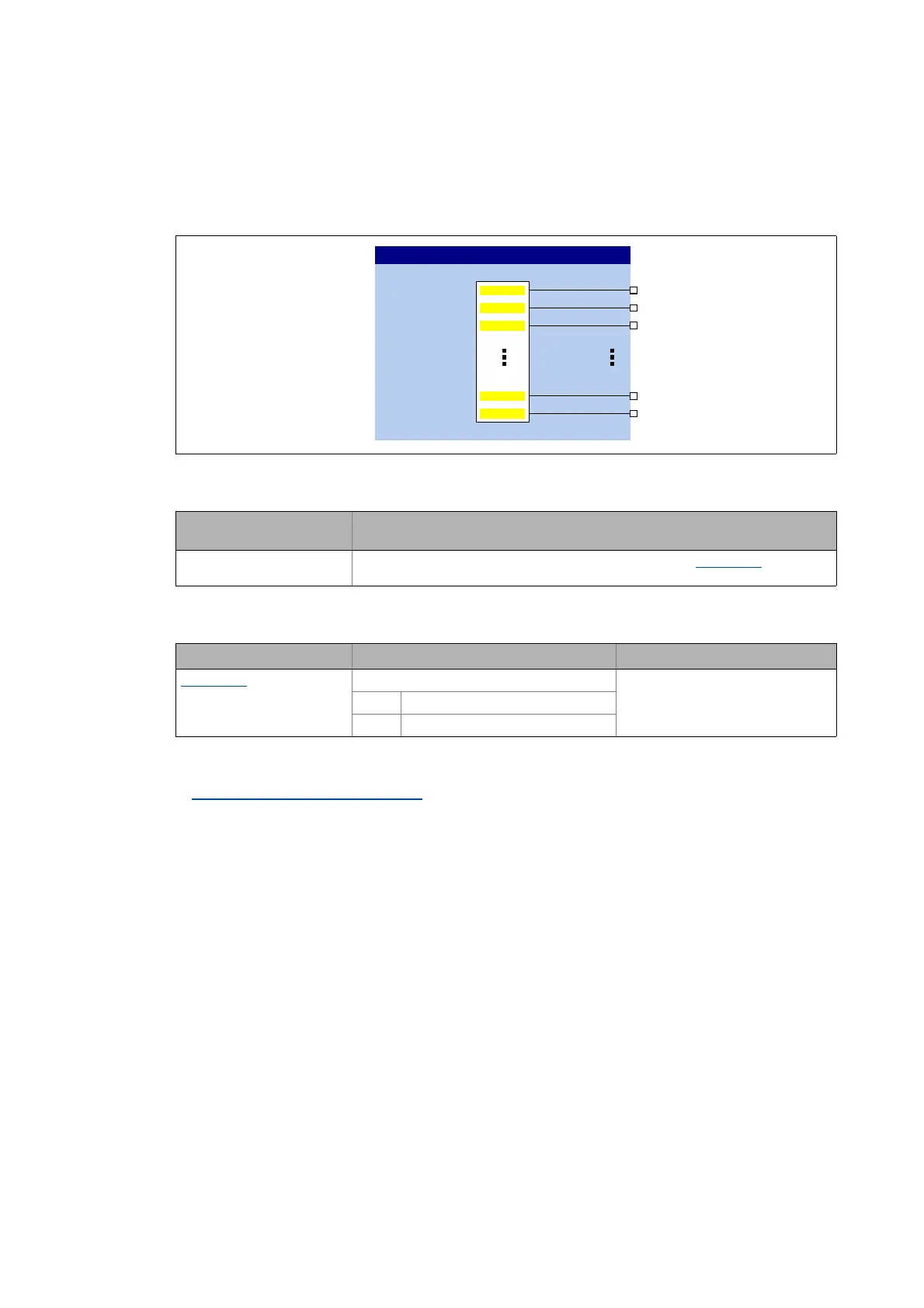

11.15 LS_ParFree_b
This system block outputs 16 parameterisable digital signals. The digital signals can be assigned to
other inputs via configuration parameters.
Outputs
Parameter
Related topics:
User-defined terminal assignment
( 114)
Identifier
Data type
Value/meaning
bPar1 ... bPar16
BOOL
Output of the signals levels (FALSE/TRUE) parameterised in C470/1...16
Parameter Possible settings Info
C470/1...16
Selection of signal levels to be output
• Bit 0 ... 15 = bPar1 ... bPar16
0 "FALSE" signal is output
1"TRUE" signal is output
E3DU
E3DU
E3DU
E3DU
E3DU
&
&
&
&
&
/6B3DU)UHHBE
