Device description
Leuze electronic BPS 307i 15
1 3x cable bushing, M16 x 1.5
2 SERVICE: Mini-B USB socket (behind protective cap)

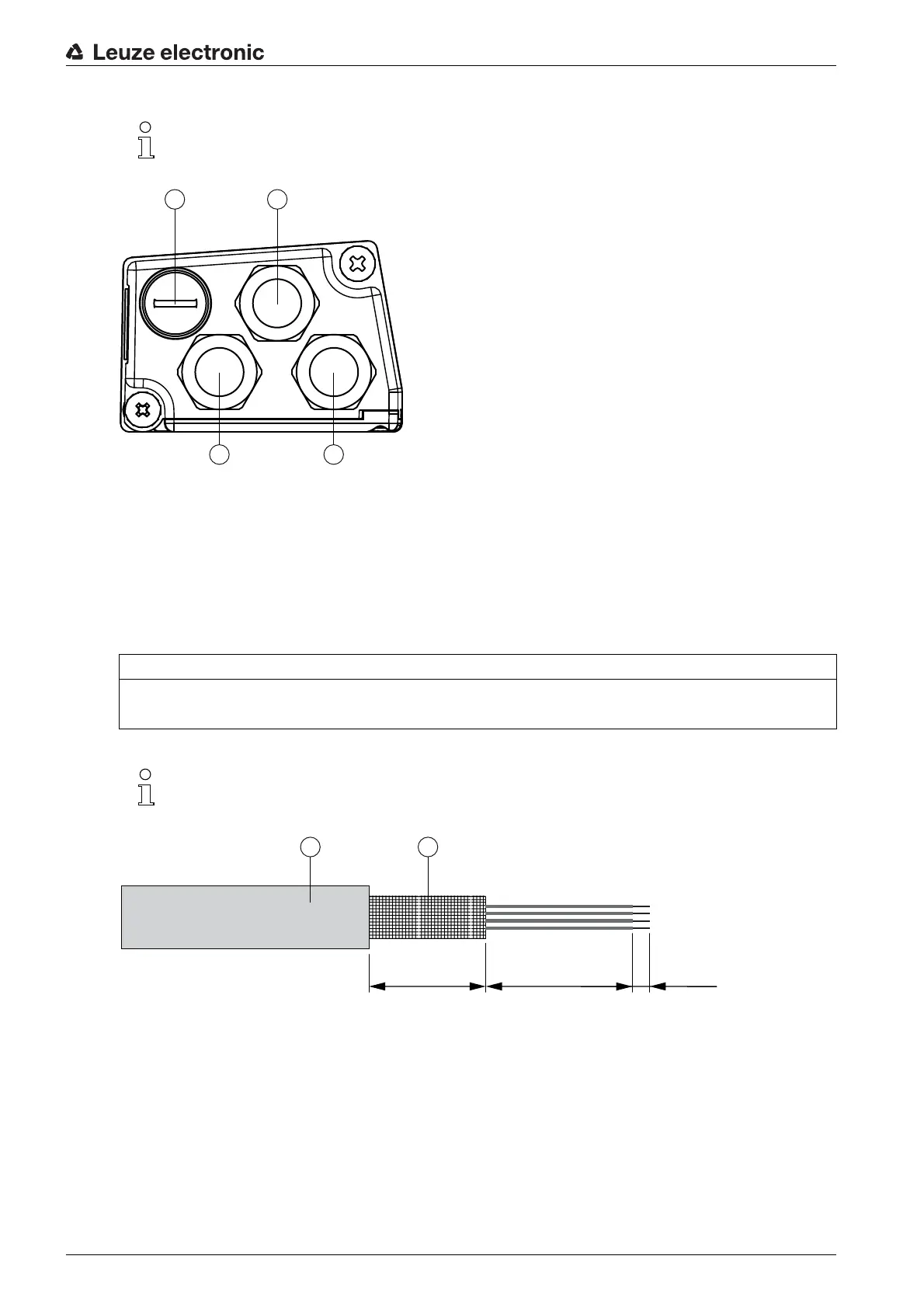

Figure 3.3: Connection hood MK 307, connections
Cable fabrication and shielding connection
 Remove approx. 78 mm of the connection cable sheathing.
15 mm of sheath of the shielded line must be freely accessible.
 Lead the individual wires into the terminals according to the diagram.
1 Diameter of contact area, cable: 6 … 9.5 mm
2 Diameter of contact area, shield: 5 … 9.5 mm
Figure 3.4: Cable fabrication for connection hoods with spring-cage terminals
3.2.3 KB 307 connection hood with cable
With connection hood KB 307 , it is possible to directly connect the BPS. A Mini-B type USB socket is used
for service purposes and for configuration and diagnostic of the BPS.
The length of the connection cable is 3 m.
The configuration switches and the integrated parameter memory for simple replacement of the
BPS are located in the MK 307.
NOTICE
Do not use wire-end sleeves!
 When fabricating cables, we recommend against using wire-end sleeves.
The shield is automatically contacted when the cable is lead into the metal screw fitting and fas-
tened when the cord grip is closed.
1
2
1 1
≈ 55 mm ≈ 8 mm ≈ 15 mm
1 2
