Leuze electronic BPS 307i - Dimensioned Drawing Bar Code Tape

Technical data
Leuze electronic BPS 307i 88

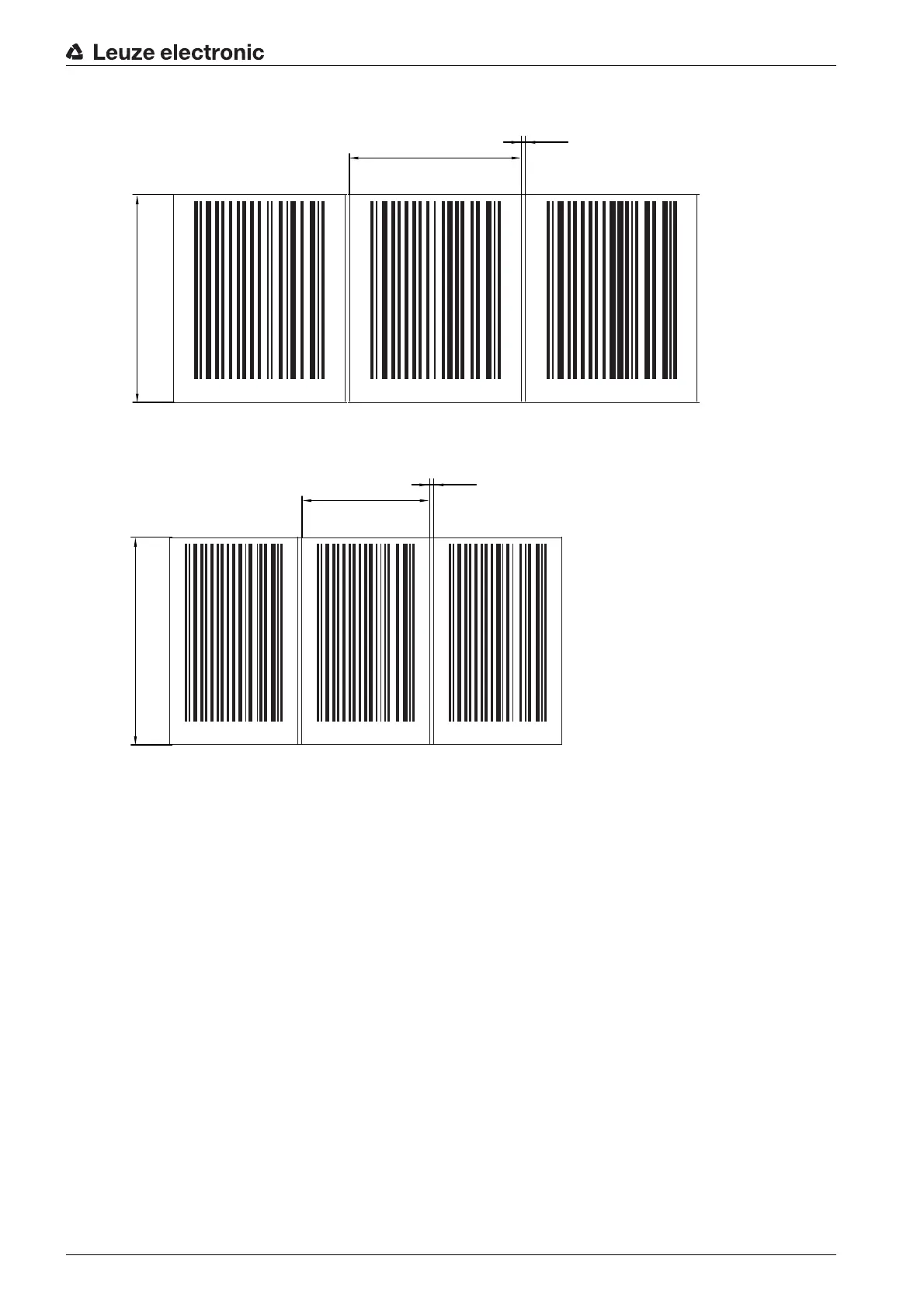

13.5 Dimensioned drawing bar code tape
all dimensions in mm
Figure 13.13: Dimensioned drawing bar code tape BCB with 40 mm grid
all dimensions in mm
Figure 13.14: Dimensioned drawing bar code tape BCB8 with 30 mm grid
000040 000044 000048
38,72
47 ±0,2
1,28
BCB8
BCB8
BCB8
000018 000021 000024
28,72
47 ±0,2
1,28
