6.1.2 Cutting bar code tapes

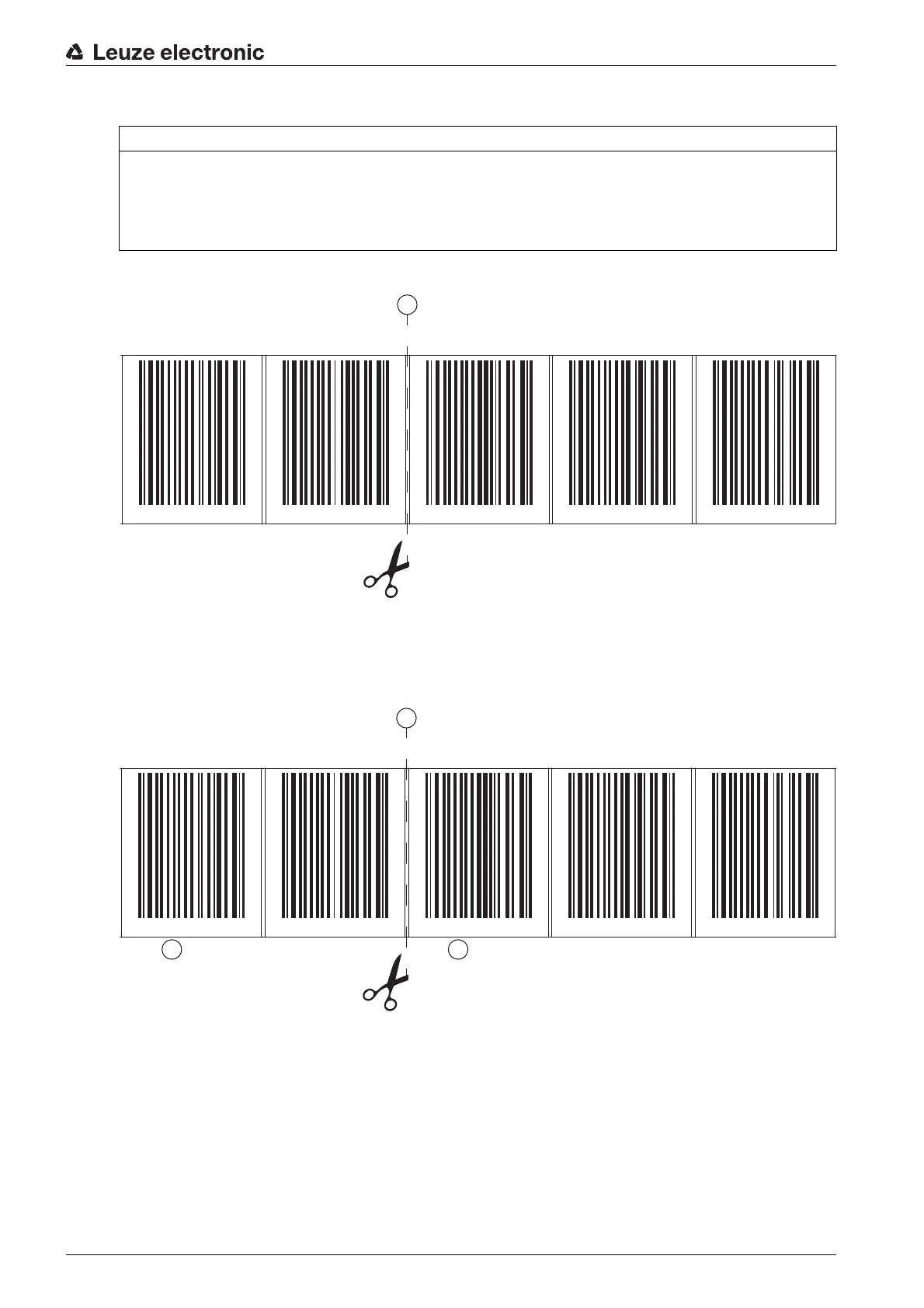

The BCB is cut at the indicated cut marks; see figure 6.1.
1 Cut mark
Figure 6.1: Cut mark on the bar code tape
If another BCB is to be affixed directly after the preceding BCB, the subsequent bar code value must differ
from the preceding BCB by at least 1 m; see figure 6.2.
1 Preceding bar code tape
2 Cut mark
3 Subsequent bar code tape, value range + 1 m
Figure 6.2: Cut bar code tape
If there is a gap without tape after the preceding BCB, it must be at least 300 mm wide before the subse-
quent BCB is affixed; see figure 6.3. The first bar code value of the subsequent BCB must differ by at least
20 (200 mm) from the last bar code value of the preceding BCB.
NOTICE
Avoid cutting BCB!
 If possible, avoid cutting bar code tapes.
Optimum position value determination by the BPS is achieved with continuously affixed BCB.
 If there are mechanical gaps, first affix the BCB continuously. Then cut the BCB.
1
000040 000044 000048 000052 000056
1
000040 000044 000148 000152 000156
2
3
