Leuze electronic BPS 307i - Configuration via the Switches of the Connection Hood

Basic configuration
Leuze electronic BPS 307i 54
8.5 Setting tape selection via the webConfig tool
 In the webConfig tool (CONFIGURATION > MEASUREMENT DATA > Bar code tape), set the Tape
selection
parameter according to the used bar code tape grid; see chapter 9.3.2 "CONFIGURATION
function".
•30 mm grid
•40 mm grid
8.6 Configuration via the switches of the connection hood
The following settings can be configured via the operational controls of connection hoods MS 307 and
MK 307:
• Resolution of the position value
• Data encoding of the measurement values:
Gray or binary
• Speed monitoring via switching output (SWIO1)
1 Slide switch S1
Factory setting: Gray encoding
2 Hexadecimal rotary switch S2
Factory setting:
0 , i.e., configuration via the webConfig tool

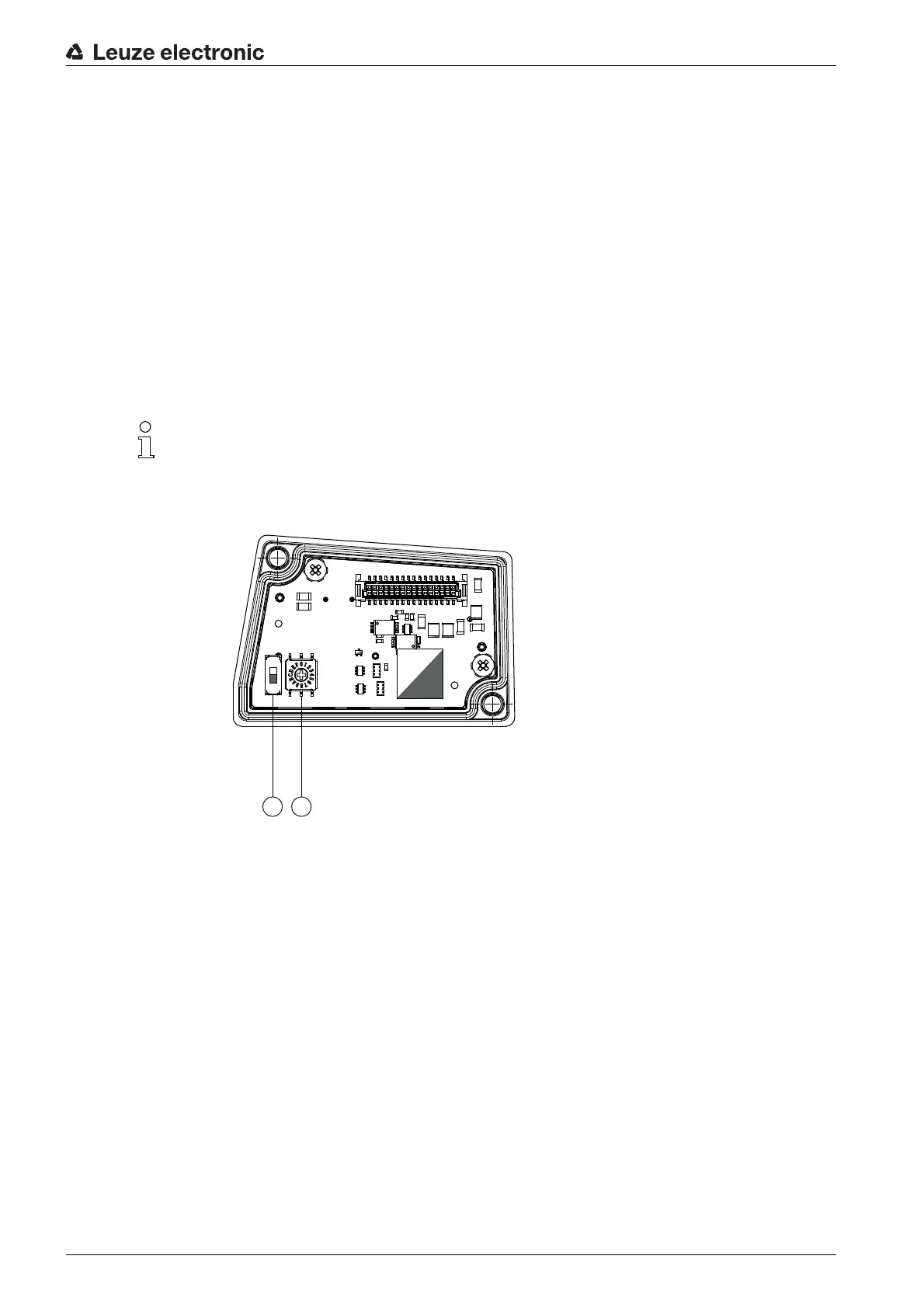

Figure 8.2: Operational controls of connection hood MS 307
The settings made via the operational controls of the connection hood can alternatively be con-
figured via the webConfig tool; see chapter 9.3.2. To do this, rotary switch S2 must be set to
switch position
0 .
If rotary switch S2 is set to switch position
0 , slide switch S1 is not evaluated.
1 2
