Leuze electronic webConfig tool – Extended configuration
Leuze electronic BPS 307i 63

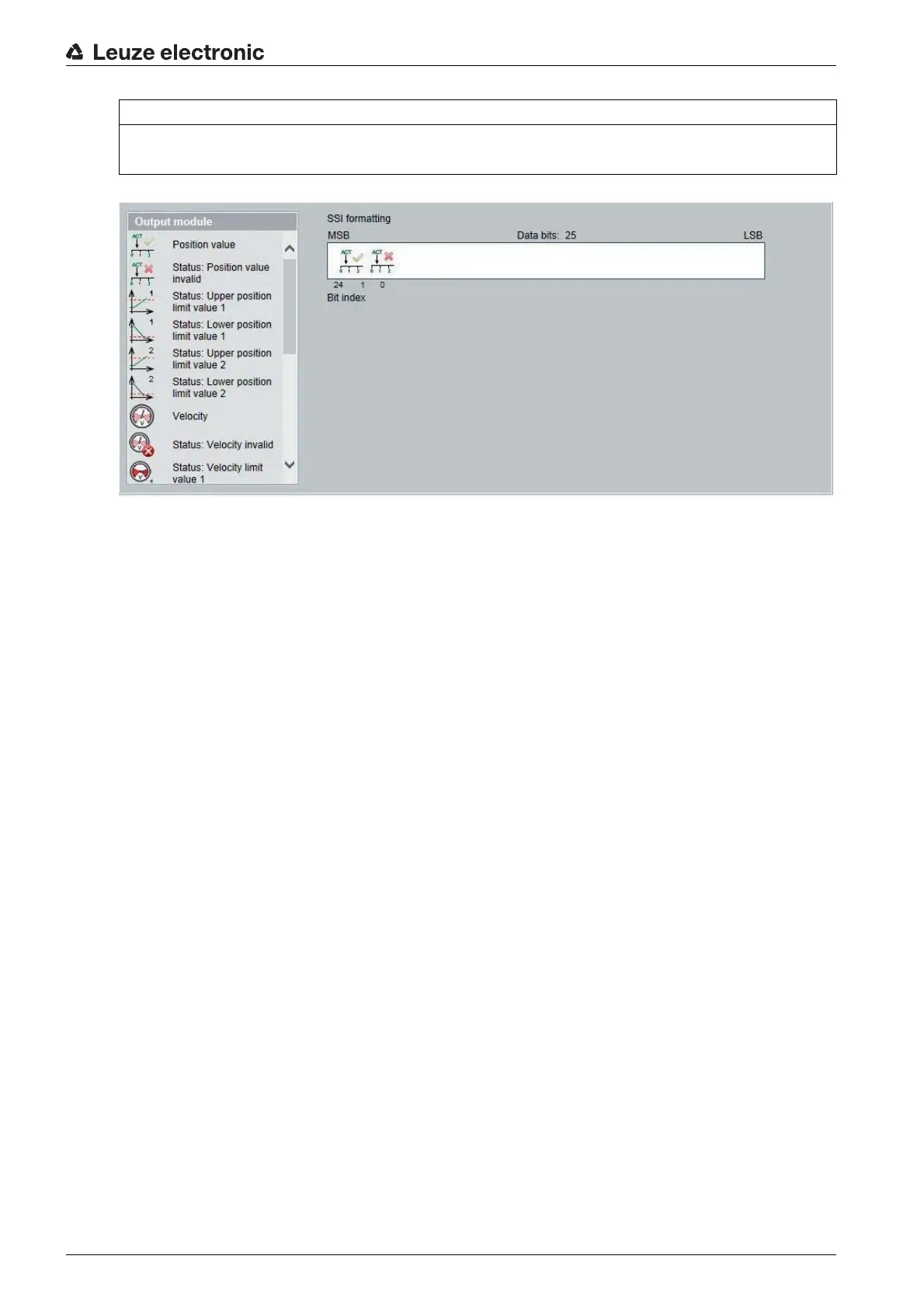

Figure 9.4: Data output on the SSI interface
The webConfig tool can be used to output the following data modules via the SSI interface:
• Position value
Current position of the BPS.
• Status: Position value invalid
Signals that no valid position value can be ascertained.
• Status: Upper/lower position limit value 1/2
Signals a value above/below the position limit.
• Speed
Current speed of the BPS
• Status: Speed invalid
Signals that no valid speed can be ascertained.
• Status: speed limit value 1-4
Signals that speed limit value 1-4 has been exceeded or has not been met.
• Direction of movement
Signals the direction of movement of the BPS.
• Tape direction
Signals the orientation of the BPS to the BCB (0° or 180°).
• Status IO1, IO2
The status of the switching input/output is output.
Configuration of the switching inputs/outputs (
DEVICE tab)
• I/O mode: switching input or switching output
• Output function
• Input function
• Timing functions
• Signal delay
• Pulse duration
• Switch-on/switch-off delay
• Debounce time
• Inversion yes/no
Configuring switching outputs
 Select the function symbol for activation of the switching output in the
Functions area.
 Use the left mouse button to drag the function symbol into the
Activation window.
NOTICE
Set data bits in the SSI master!
 Set the configured number of data bits in the SSI master.
