Technical data
Leuze electronic BPS 307i 83

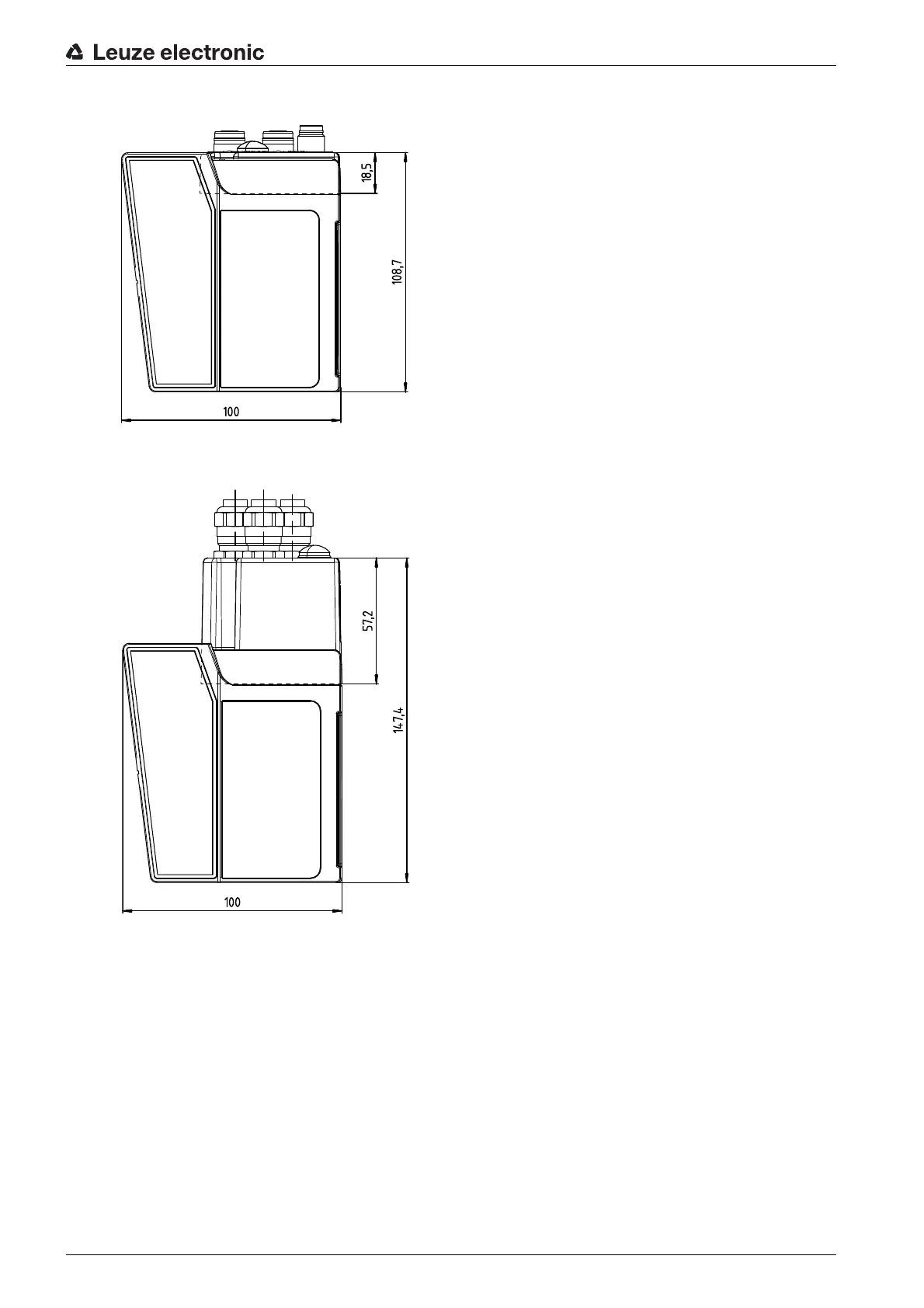

Dimensioned drawing BPS with MS 348 connection hood
all dimensions in mm
Figure 13.3: Dimensioned drawing BPS with MS 307 connection hood
all dimensions in mm
Figure 13.4: Dimensioned drawing BPS with MK 307 connection hood
