3.3 Thermal Management
The driver temperature depends on the ambient and liquid temperature, as well as on the hydraulic operation
point. Figure 16 and Figure 17 illustrate the temperature characteristics of the motor depending on these
parameters.

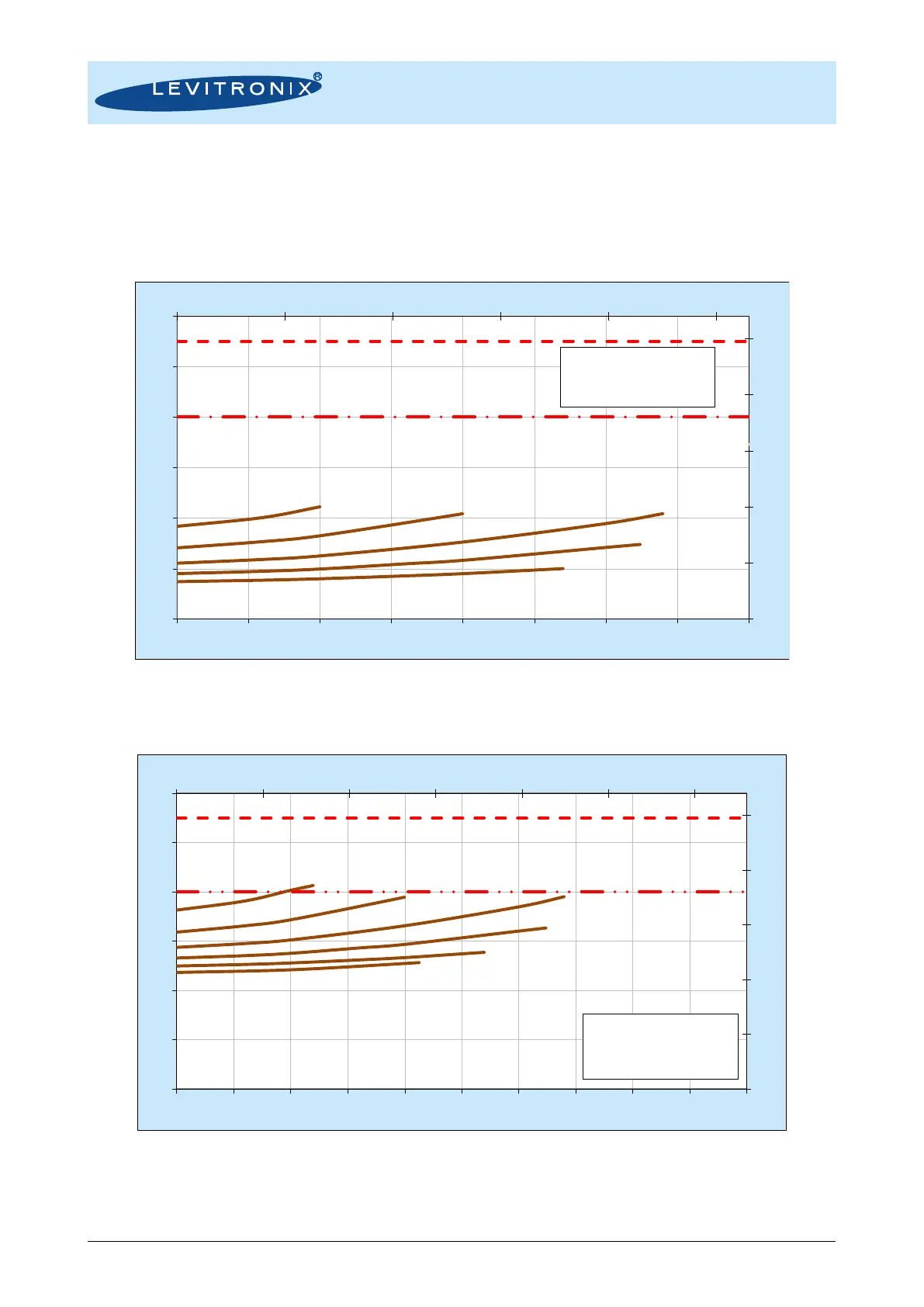

Figure 16: Temperature curves for the flow control drivers @ 25°C liquid temperature
(Typical values for pumping with DCP-200 pump head and IFD-100.x flow control driver. Temperature is inside
of the integrated motor and controller, contact temperature of surface is below this temperature.)
Figure 17: Temperature curves for the flow control drivers @ 60°C liquid temperature
(Typical values for pumping with DCP-200 pump head and IFD-100.x flow control driver. Temperature is inside of
the integrated motor and controller, contact temperature of surface is below this temperature.)
