The driver is not rated to be placed next to flammable gases. Do not
use the driver next to flammable gases without adequate safety
precautions to fulfill the relevant regulatory requirements.
The driver can be fixed with four screws on the motor feet (see Figure 10, Figure 11 and Figure 12).
Mounting of the driver can be done in either the horizontal or vertical position.
When mounting the pump head fittings into a circuit it shall be taken care that no mechanical stress is acting
on the fittings, which can result in distorting creeping effects.
The outlet orientation of the pump head can be changed in steps of 45° by assembling the pump head
socket accordingly (see Figure 26).

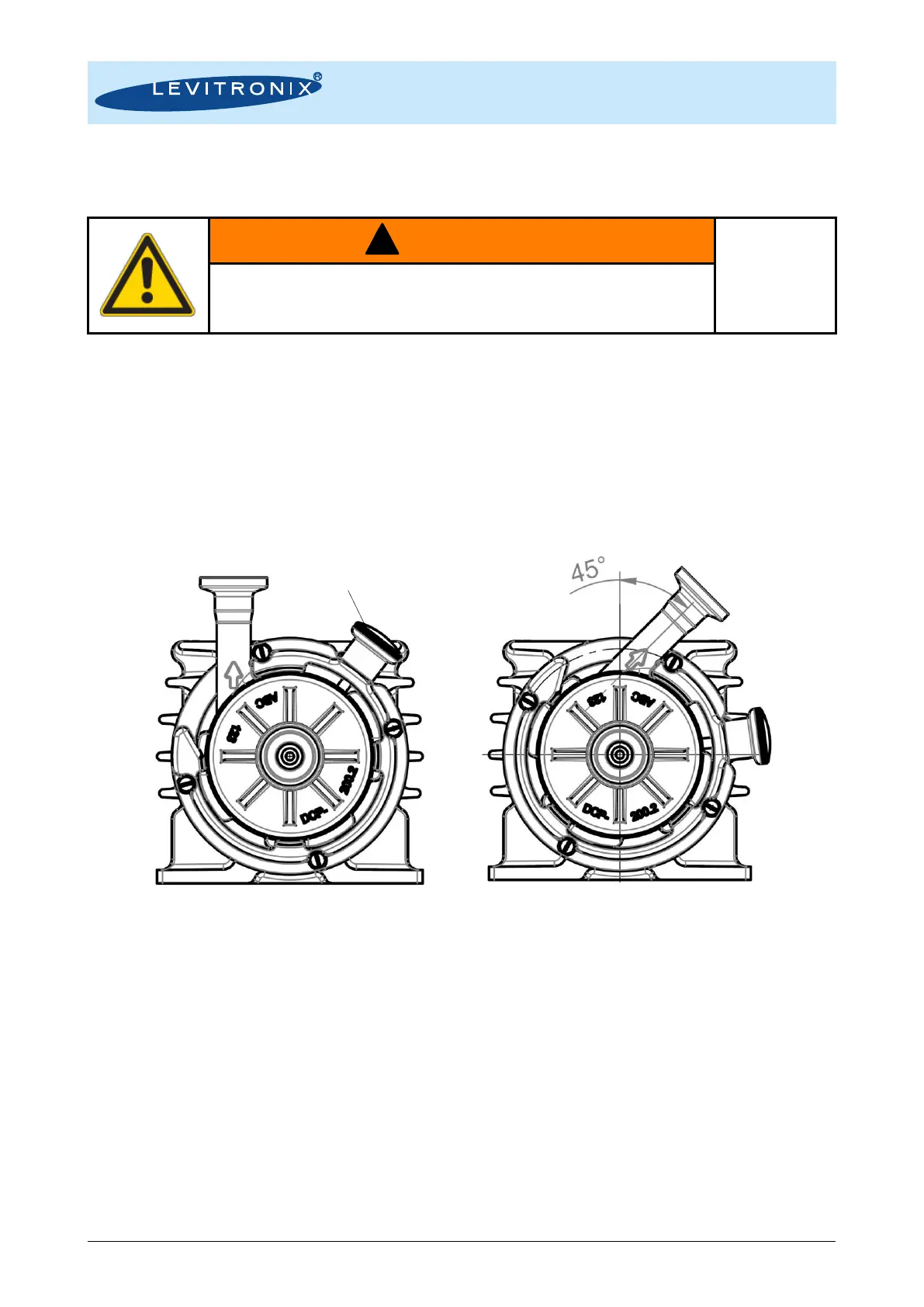

Figure 26: Vertical and 45° orientation of pump head with rotation of pump head socket
