User Manual for PuraLev
®
iF100SU
www.levitronix.com
30
4.6 Mechanical Installation of Flow Sensor
1. For mounting and exchanging the sensors and assure proper operation it is recommended to use the LMK mounting
kits, which can be ordered according to Table 4. Contact Levitronix
®
for detailed drawing specifications.
2. Alternatively, the sensor body can be mounted with the fixation holes as shown in Figure 13.
3. . Assure that the fixation of the flow sensor and that the weight of the inlet and outlet circuit on the fittings are not
causing excessive forces resulting in bending the flow measurement path, which might influence the flow measurement.
4. Assure that at the mounting location the allowed ambient temperature and humidity ranges are not exceeded:
Temperature range: 0 40 °C (32 104 °F)
Humidity range: 30 - 85% R.H. (no condensation)
5. The flow circuit should be filled completely with fluid. The converter DSP (Digital Signal Processor) contains special
algorithms, which increase the robustness of the measurement against bubbles. However, assure that excessive
bubbles are avoided in the circuit.
6. Ideal mounting position for the flow sensor is 45
0
(see Figure 27) with upward flow direction to avoid the stagnation of
bubbles and particles in the measuring tube.

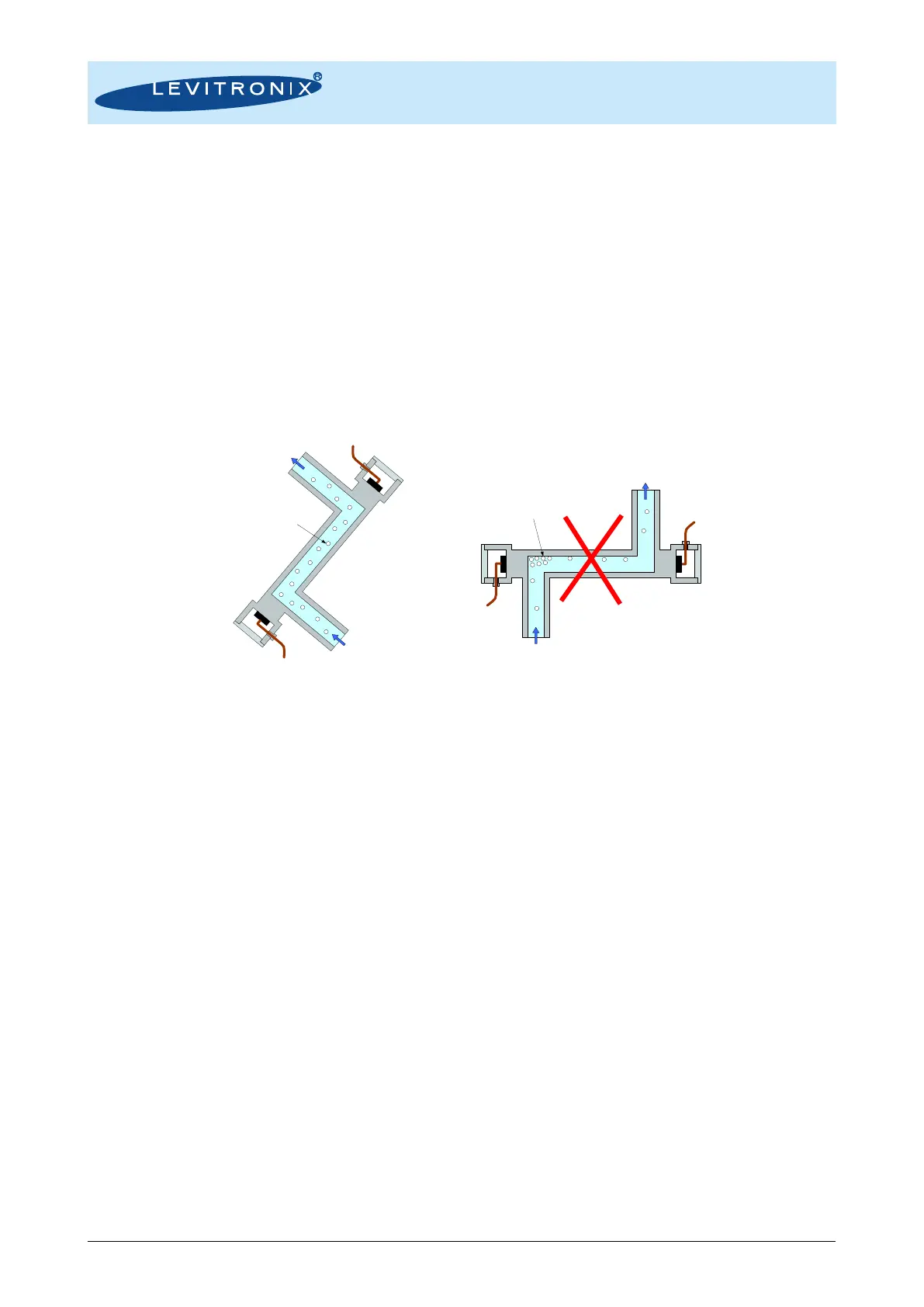

Figure 27: Mounting position of flow sensor
7. An arrow mark on the flow sensor indicates the flow direction. Make sure that the arrow corresponds to the direction of
the flow in the hydraulic circuit.
8. Avoid excessive vibrations such as in the proximity of displacement pumps. Insufficient contact of the transducer (within
the sensor) onto the pipe wall caused by vibration may result in inaccurate measurement.
9. The flowmeter measures flow velocity. In order to obtain fully developed flow pattern for accurate velocity measurement,
straight run of 10x sensor ID upstream and of 5x ID downstream is recommended.
10. If non-uniform turbulent flow or swirl flow is expected, install longer upstream straight run and/or a flow-rectifier.
11. To install on a pipe that has open end, the sensor should be mounted in lower position of the pipe line.
12. The sensor should be mounted where pressure in the pipe is above the atmospheric pressure.
13. Devices like valves are recommended to be installed downstream of the sensor in order to prevent formation of bubbles
in the liquid. An upstream valve may form bubbles reducing the intensity of the ultrasound signal and interfering with
measurement.
14. A bypass pipe run (including bypass valve and shutoff valve) is recommended for easy zero adjustment and
maintenance.
15. Please confirm that the maximum pressure is below the flow sensor specification of < 5 bar (at 20°C).
16. After setup a zero adjustment is recommended. Assure that the sensor is filled completely with the according fluid and is
free of bubbles. Stable liquid properties should be assured by flushing the circuit with the final liquid until temperature
and viscosity becomes stable. After this, zero flow shall be realized. Section 5.3 summarizes how zero adjustment can
be implemented with the various models.
17. If zero adjustment is regularly necessary, automation is possible over a digital input of the PLC of the OEM (see Table
15) and EasyConnect (see Table 14) models or over the RS485 fieldbus interface.
18. In the following cases a re-zero is recommended:
a. 30 minutes after power-on of a cool driver and flow sensor
b. Change of fluid properties (temperature, viscosity, density)
c. Change of chemistry
d. Change of the hydraulic circuit
Horizontal Mounting Position:
Stagnation of Bubbles and
Particles
45
0
Mounting Position:
Free flow of bubbles and
particles
