User Manual for PuraLev
®
iF100SU
www.levitronix.com
PL-4079-00, Rev00, DCO# 21-271
4 Installation
4.1 Electrical Installation of Stand-Alone Model
4.1.1 Overview of Connections and Designations

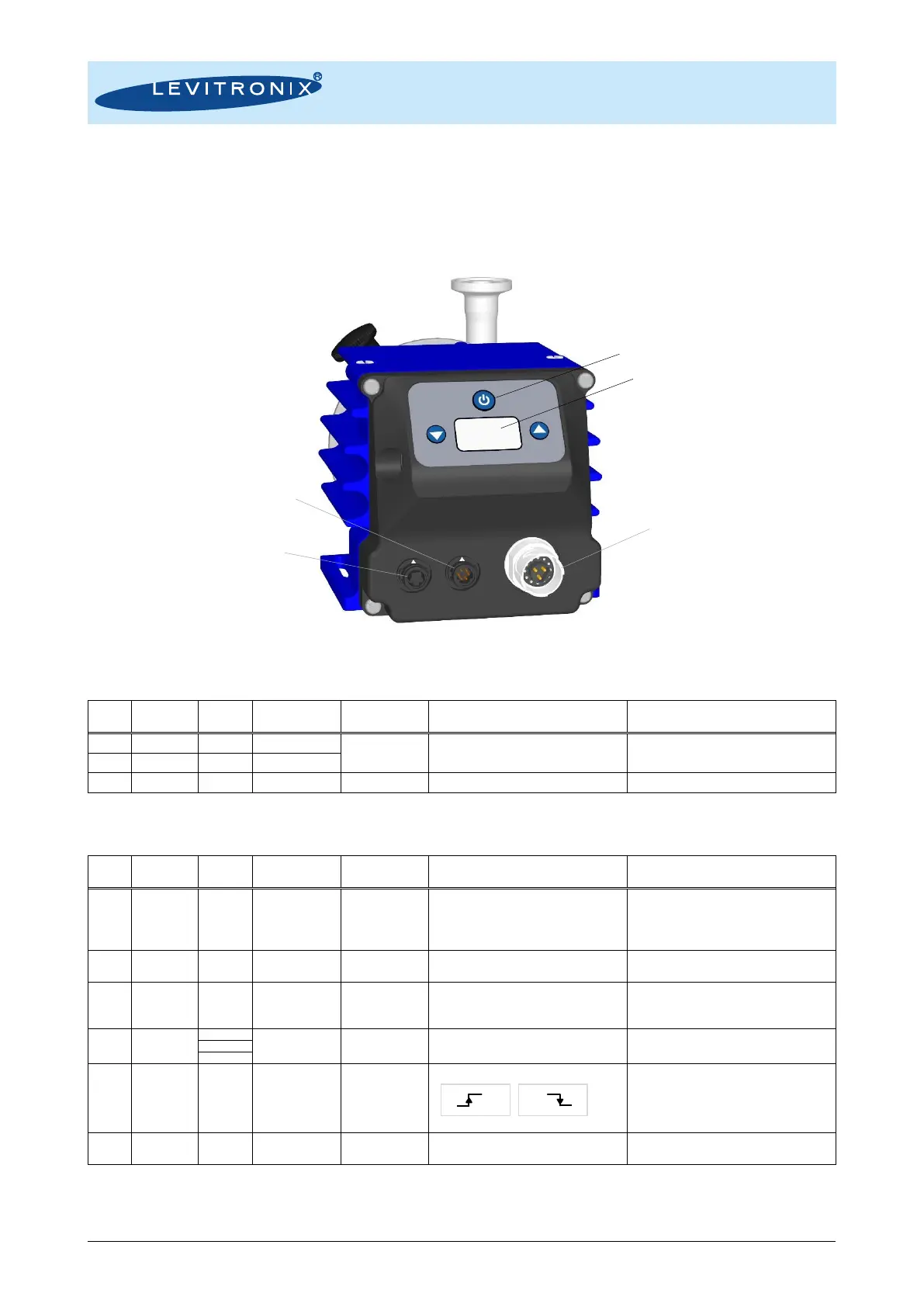

Figure 18: Electrical connections to Stand-Alone driver IPD-100.6
Specifications
Typical Levels
Voltage: 24 VDC ±10%
Power: 100 W
“P -“ shall be connected to earth
Wire of compatible cables is cut.
Wire of compatible cables is cut.
Table 9: Power supply connector of Stand-Alone driver model
1: Wire colors of compatible cables: ICP-1.1-xx. 2: Designations for standard firmware. For other firmware refer to relevant documentation.
Reference
Value
(Set Flow or
Speed)
4..20 mA = 0..100% of full scale flow
4..20 mA = 0..10000 rpm
Speed limit = 9000 rpm
Cut-off speed = 0 rpm
For Flow Control mode.
For Speed Control mode.
450 Ohm shunt input, no galvanic isolation.
Closed circuit active, system on
Open circuit not active, system off
Open drain, max. 24V, 100mA
This signal indicates the state of the pump
system.
For enabling of the system with external signal.
Galvanic separation with optocoupler and
2.2 k input resistance.
Table 10: PLC connector of Stand-Alone driver model
Note 1: Screw type connector pin-out and wires of compatible cables ICS-1.3-xx.
Note 2: Designations for standard firmware. For other firmware refer to relevant documentation.
