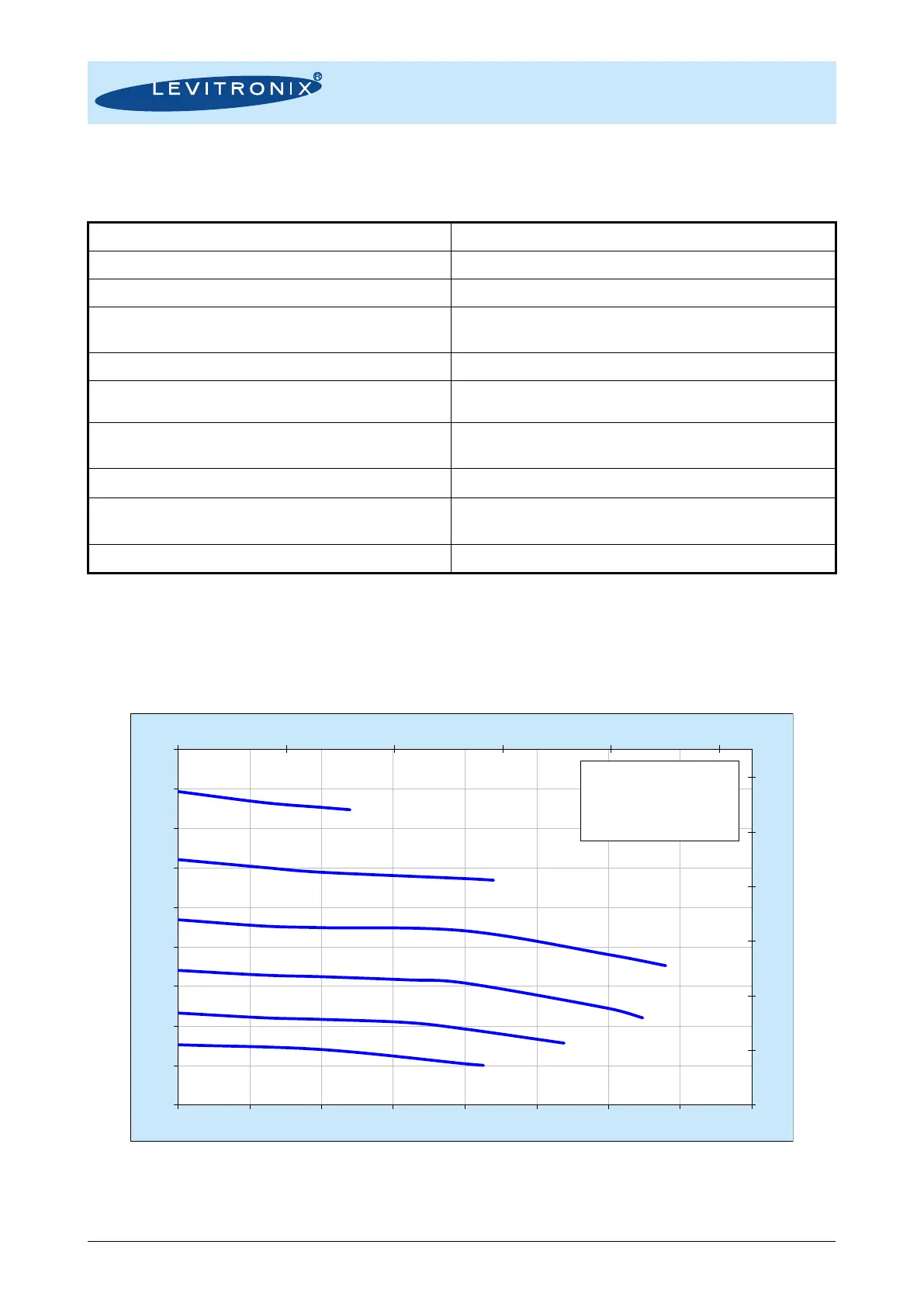

2.3 General Environmental Conditions
Usage
Indoor
Altitude
Up to 2000 m
Operating ambient temperature
0 to 40 °C
Storage ambient temperature
(Extremes for Transportation)
-20 to 80 °C
-20 to 70 °C for single-use pump head
Operating humidity range (relative humidity)
15 – 95% (non-condensing)
Storage humidity range (relative humidity)
(Extremes for Transportation)
15 – 95% (non-condensing)
Normal storage conditions
Ambient temp.: 20 to 30 °C
Relative humidity: 50% (non-condensing)
DC supply fluctuations
 10% of nominal voltage
Transient over-voltages typically present on
the mains supply
Surge immunity according to EN 61000-4-5
(tested together with certified AC/DC power supply)
Pollution degree
2
Table 5: Environmental conditions for flow control system
2.4 Pressure-Flow Curves
Figure 8: Pressure/flow rate curves
Typical curves measured with DCP-200.2 pump head.)
0
5
10
15
20
25
30
0.0 1.0 2.0 3.0 4.0 5.0
0.00
0.25
0.50
0.75
1.00
1.25
1.50
1.75
2.00
2.25
0.0 2.5 5.0 7.5 10.0 12.5 15.0 17.5 20.0
[psi]
[gallons/min]
[bar]
[liters/min]
Specific gravity = 1 g/cm
3
Viscosity = 0.7 cP
Liquid Temp.: 40C
DC-Voltage = 24VDC
Pumphead: DCP-200.2
8000 rpm
7000 rpm
6000 rpm
5000 rpm
4000 rpm
9000 rpm
