Two Fieldbus connectors (IN and OUT) allow to setup a chain of multiple flow controllers. Therefore,
blending configurations as shown in Figure 6 can be realized.

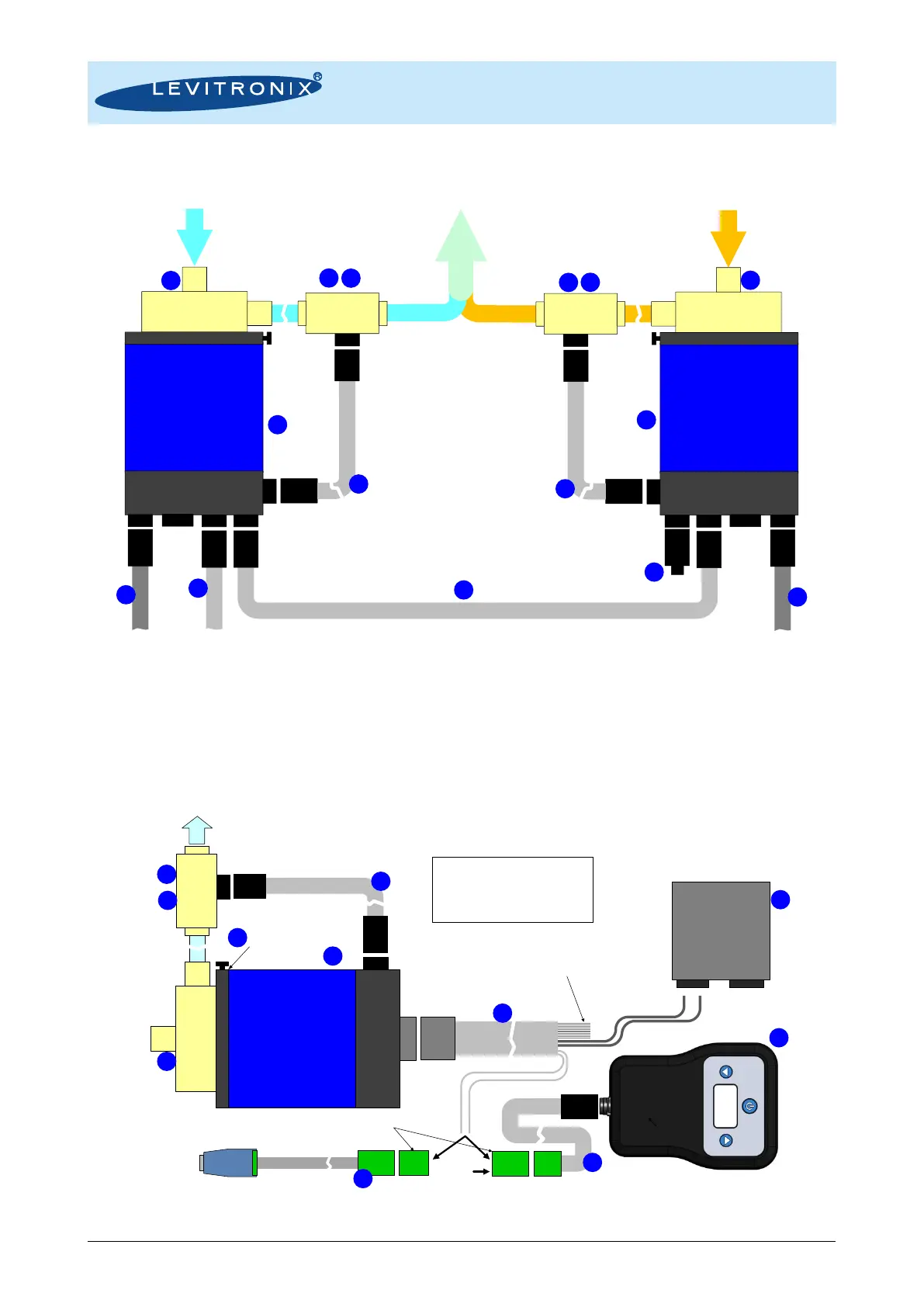

Figure 6: Multi-pump array for blending applications with EasyConnect models
2.2.3 System Configurations for OEM Models
The OEM model, with one integrated driver connector only, is designed for compact integration into an
equipment. The flow can precisely be set via an analog input. Various digital inputs and outputs allow
controlling and monitoring of the system. A RS485 (Modbus) enables communication with a user panel or a
PC with the Levitronix
®
Service Software. Hence parameterization, firmware updates and failure analysis are
possible. The RS485 can also be used as a fieldbus to implement more intelligent concepts of pump control.
Figure 7: System configuration of OEM model
