Levitronix PuraLev iF100SU User Manual

User Manual for PuraLev
®
iF100SU
www.levitronix.com
PL-4079-00, Rev00, DCO# 21-271
9

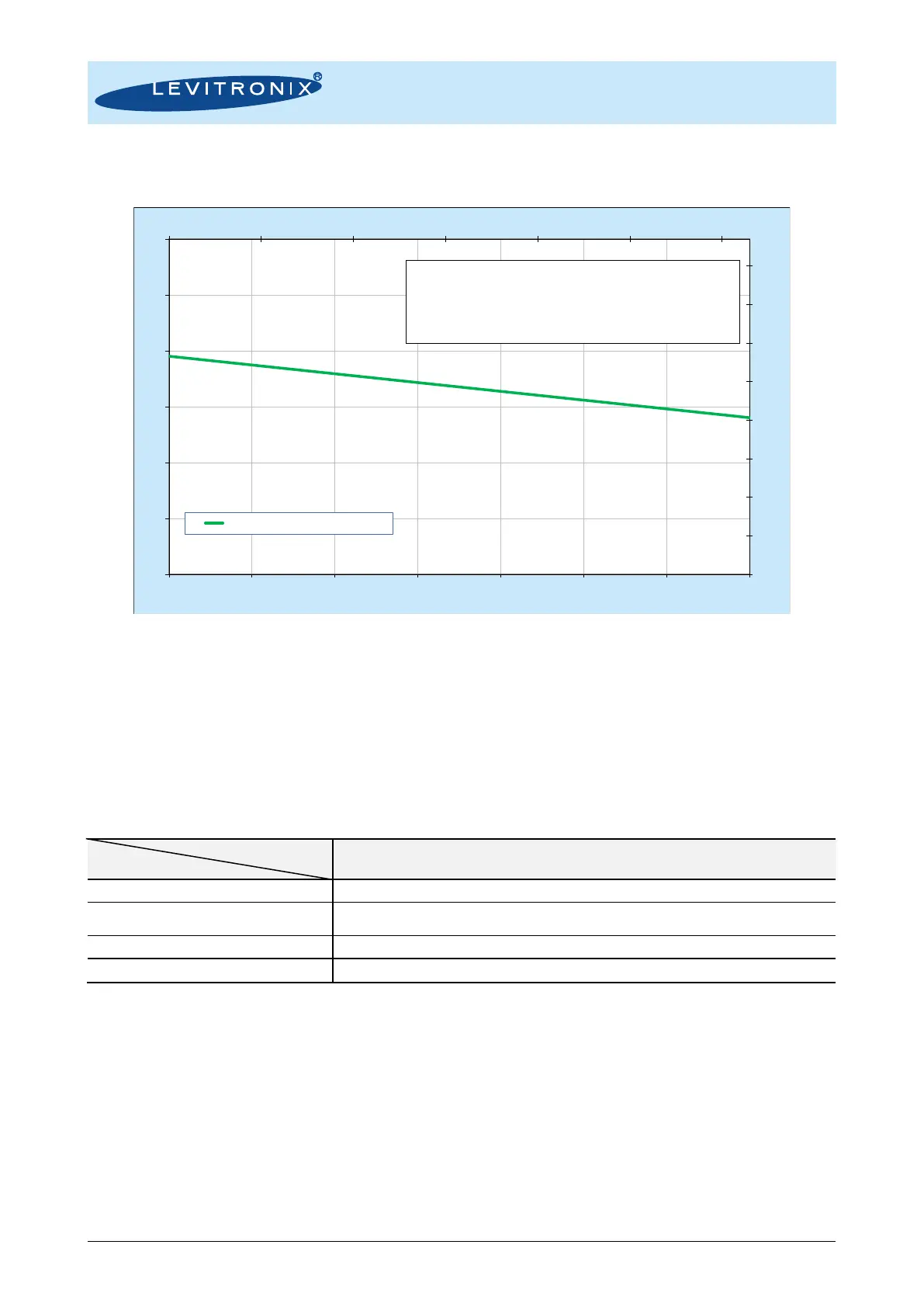

2.5 Maximum Static Pressure for Pump Heads
Figure 9: Specification for maximum static pressure of pump head
Note 1: Pressure limits only valid for pump head mounted on motor and do not account for tubing limits attached to the fittings.
Note 2: The above chart is also applicable to the DCP-200.3-SF1-G25 with sterile fittings.
2.6 Flow Control Specifications
Flow Controller Type
Characteristics
PuraLev
®
iF100SU
with LFS-06SU
PuraLev
®
iF100SU
with LFS-06SU-SC1
PuraLev
®
iF100SU
with LFS-10SU
PuraLev
®
iF100SU
with LFS-10SU-SC1
Flow Range [lpm]
0 – 8
0 – 8
0 – 20
0 – 20
Accuracy of Reading (at 20°C fluid temperature)
Note: Repeatability < Accuracy/2
> 1.7 l/min: ±1%
< 1.7 l/min: ±17 ml/min
> 0.075 l/min: ±1%
< 0.075 l/min: ±0.75 ml/min
> 4.7 l/min: ±1%
< 4.7 l/min: ±47 ml/min
> 0.75 l/min: ±1%
< 0.75 l/min: ±7.5 ml/min
Response Time: Step from 10 – 90% of full scale.
< 1s
1
< 1s
1
< 1s
1
< 1s
1
Fluid Temperature / Ambient Temperature
Normal range: 10 – 60 °C ( 50 – 140 °F ) / 0 – 40
0
C (32 – 104
0
F)
Table 6: Specifications of flow controller systems
Note 1: Values for flow control parameters, which are optimized to the specific hydraulic circuit.
Default parameters are tuned for general flow control stability and may have higher values.
0
10
20
30
40
50
60
70
80
77 87 97 107 117 127 137
0
1
2
3
4
5
6
25 30 35 40 45 50 55 60
[psi]
[°F]
[bar]
Liquid Temperature in [°C]
Max. Static Pressure for DCP-200
Safety Factor = 1.3 (according to EN12162)
Limitation: Given by deformation. Burst pressure is significantly higher
Ambient Temp = 25 C
Note: Pressure limit only valid for pumphead mounted on motor. Values
only valid after Gamma radiation doses of < 40 kGy.
