User Manual for PuraLev
®
iF100SU
www.levitronix.com
PL-4079-00, Rev00, DCO# 21-271
11

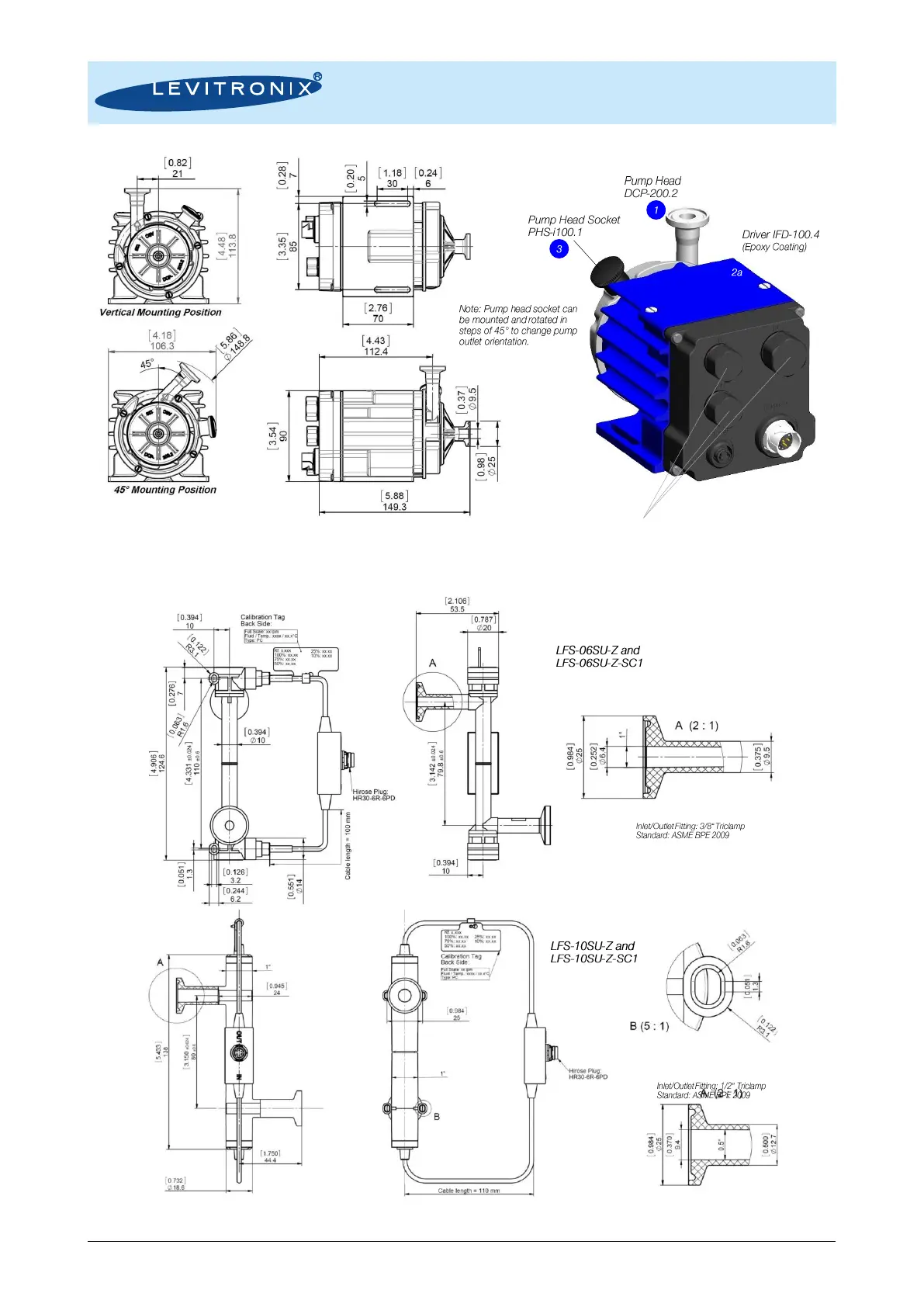

Figure 12: Basic dimensions (in [mm] and [inch]) of OEM model
Note 1: Drawings with DCP-200.3 (Barb) and DCP-200.3-SF1 (sterile fittings) are available on request.
Figure 13: Basic dimensions for LFS-06SU-Z and LFS-10SU-Z single-use flow sensors compatible with IFD-100 flow control drivers

Clamp OD = 25mm for Mini-

Standard: ASME BPE 2009
Not configured connections
protected by sealed covers.
