Paper handling removals
Forms thickness lever removal
1. Remove the rear cover. See “Covers, rear removal” on page 4-5.
2. Remove the top cover. Go to “Covers, top removal” on page 4-5.

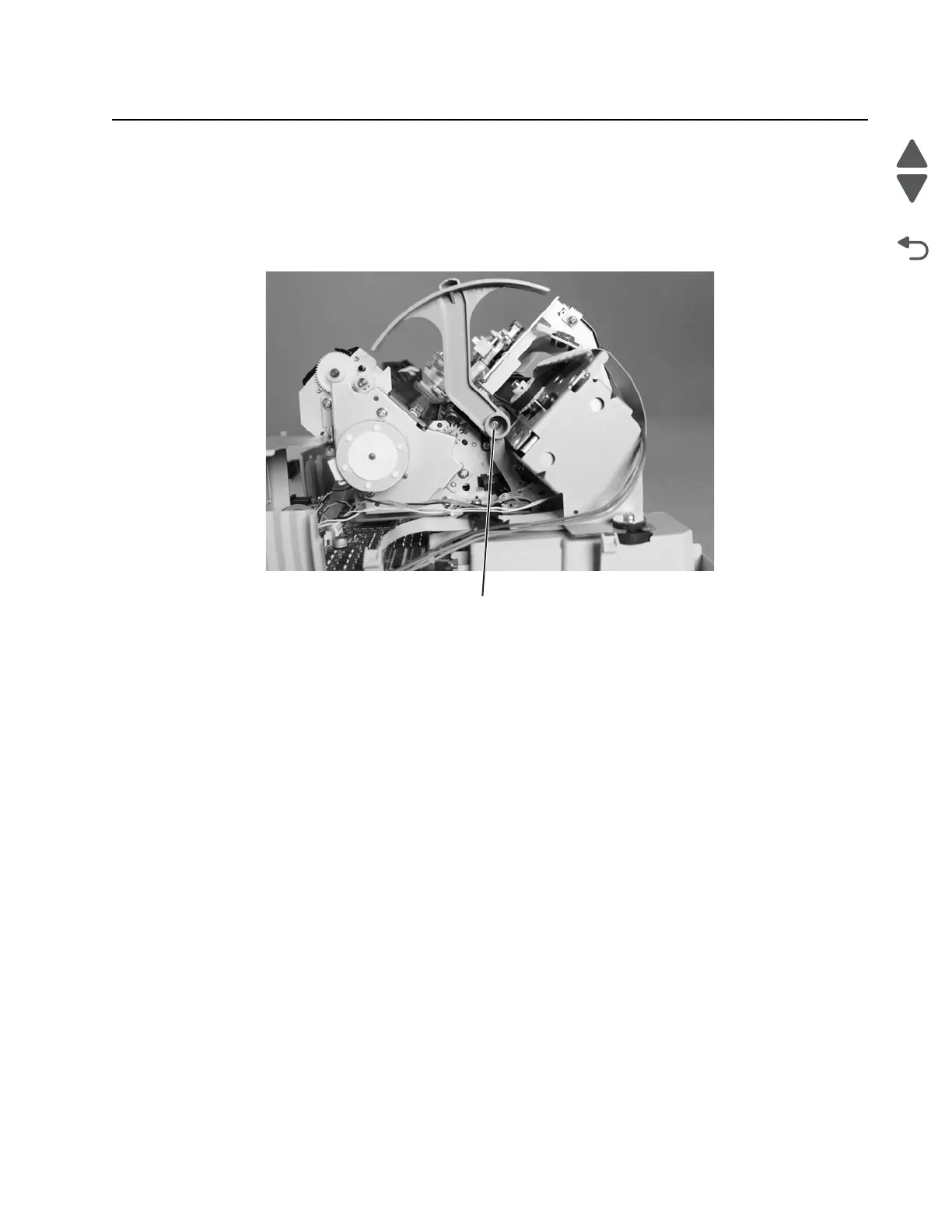

3. Remove the screw (A) from the lever, and then remove the forms thickness lever.
Paper feed motor removal
1. Remove the rear cover. See “Covers, rear removal” on page 4-5.
2. Remove the top cover. Go to “Covers, top removal” on page 4-5.
A
