Installation
36 300855170_002_C8 - 08/2021 - © Leybold
3.6 Connect the cooling
Cooling of the pump depends on the required pumping power and the ambi-
ent temperature. When the pump is insufficiently cooled it will shut down.
High gas throughputs, cyclic operation or high ambient temperatures will
necessitate air or water cooling.
3.6.1 Air cooling
When installing air cooled pumps within a system ensure that sufficient quan-
tities of fresh air are freely available. The air cooling facility is powered via the
pump.
Use the 4 bolts which are included in the delivery to attach the air cooling
unit at the bores provided on TURBOVAC. Plug in the control cable of the air
cooler into the accessories connection and screw tightly. The accessory con-
nection is so pre-configured that the air cooler will always be running when
the pump is running. To change this setting, refer to the interface Operating
Instructions.

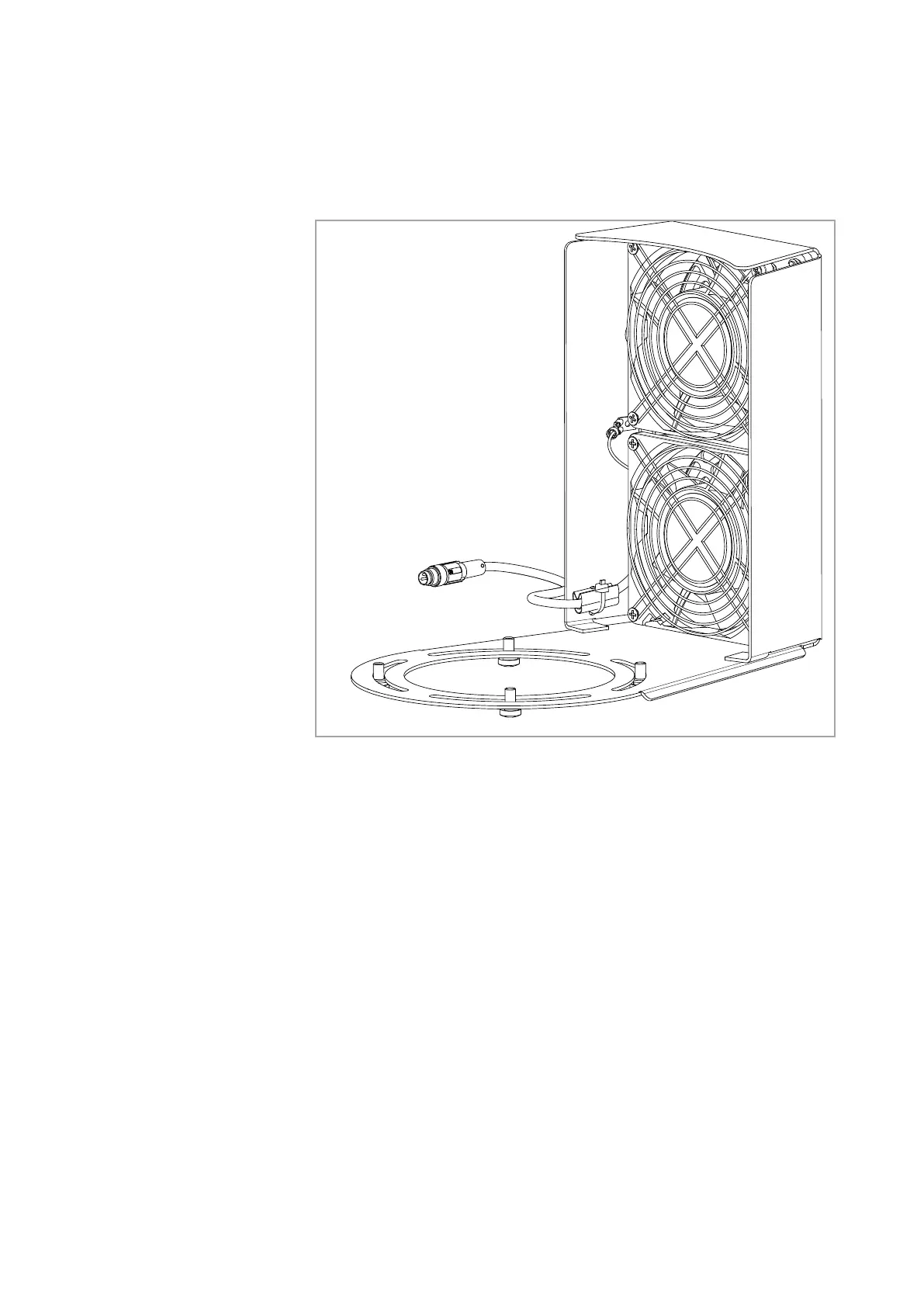

Fig. 3.7 Air cooling
