Installation
27300855170_002_C8 - 08/2021 - © Leybold
3.4 Attach the pump to the vacuum chamber
Mounting position
TURBOVAC 850 i and 950 i pumps can be mounted in any orientation.
TURBOVAC 1350 i and 1450 i pumps can be mounted
■
horizontally or vertically with the high-vacuum flange on top and in any ori-
entation in between or
■
horizontally or vertically with the high-vacuum flange on the bottom and in
any orientation in between (U versions)
The pump can be damaged if it is operated if it is operated in the incor-
rectly installed position. Observe the sticker on the pump and install the
pump only in the permitted orientation.
Never touch the rotor. Touching the rotor may cause injury and damage the
rotor bearing.
If the mounting is not sturdy enough, pump blockage could cause the
pump to break loose; internal pump components could be thrown in all
directions.
Mount the pump firmly to the vacuum chamber. Never operate the pump
without proper flanging to the vacuum chamber (in bench testing, for
example).
Do not operate the vacuum pump with open flanges. Do not reach into the
pump.
NOTICE
NOTICE
WARNING

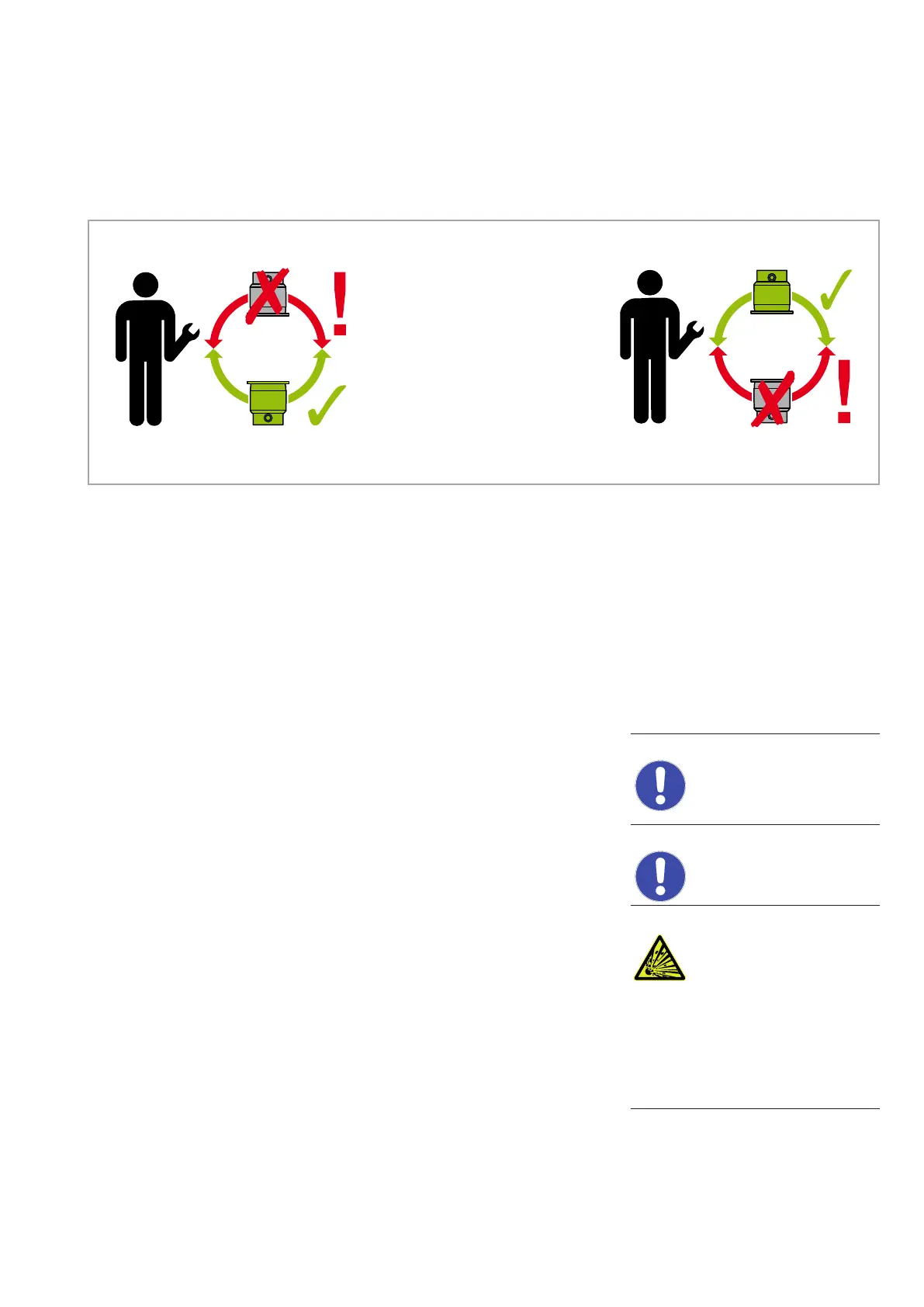

Fig. 3.1 Mounting position
TURBOVAC 1350 i and 1450 i
Mounting positions for Part Nos. without U Mounting positions for Part Nos. with U
