LEYBOLD TURBOVAC i(X) User Manual

Installation
45300855170_002_C8 - 08/2021 - © Leybold

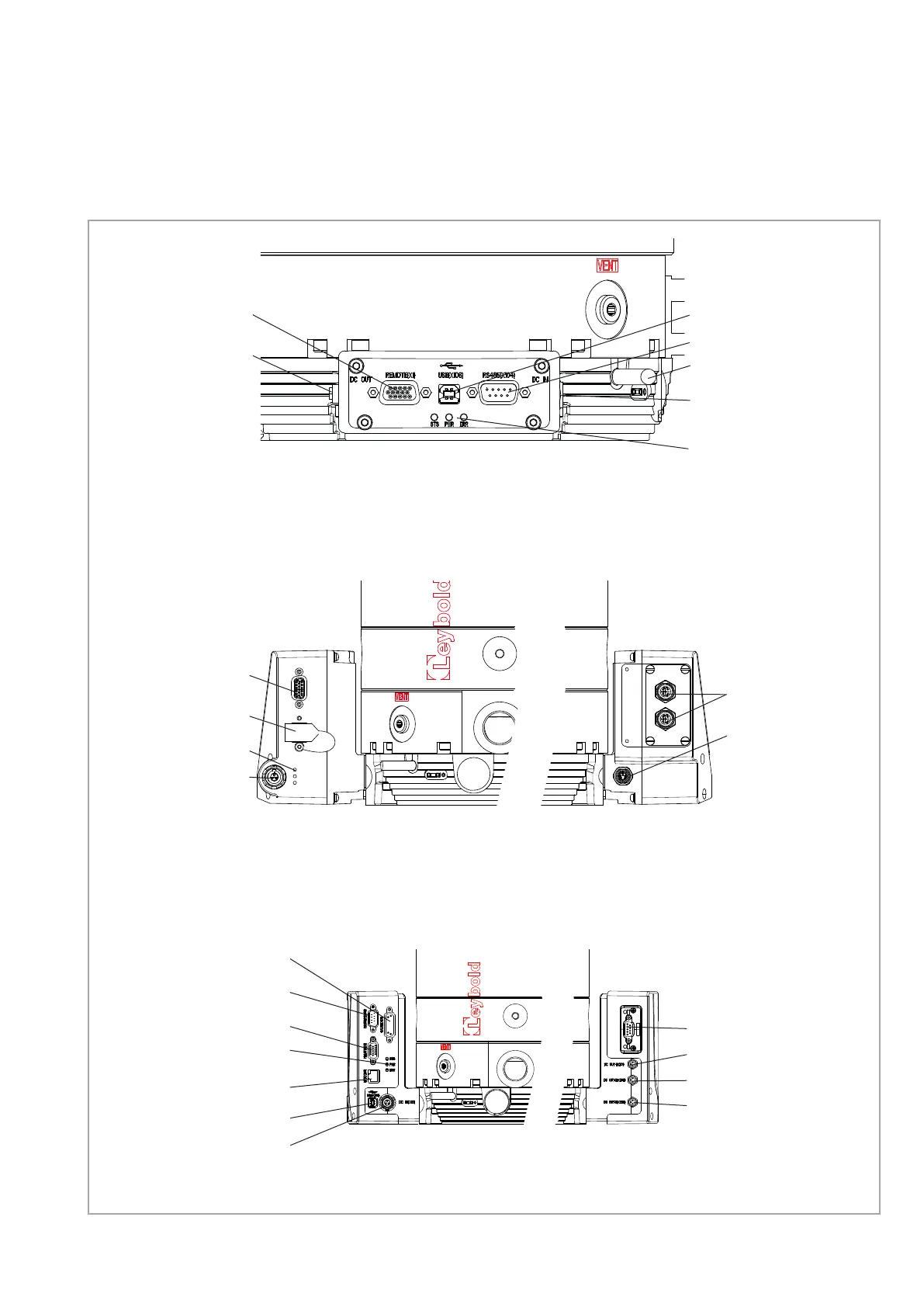

Fig. 3.15 Interfaces
USB interface X106
RS 485 interface X104
48 V DC DC input
Do not connect a power
supply to this connection!
LEDs
REMOTE interface
X1
Accessory connection
24 V DC OUT X201
REMOTE interface
X1
USB interface X106
under the cover
LEDs
Do not connect a
power supply to this
connection!
Optional interface
X120
Accessory connection
DC OUT (M8) X201
TURBOVAC i
TURBOVAC i with optional interface
Gauge X101
RS-485 master
(not usable for customers)
Remote interface X1
LEDs
Ethernet interface
(not usable for customers)
USB interface X106
Do not connect a power
supply to this connection!
Anybus interface X120
Acessory connection X201
Acessory connection X202
Acessory connection X203
TURBOVAC iX
