INSTALLER SETTING

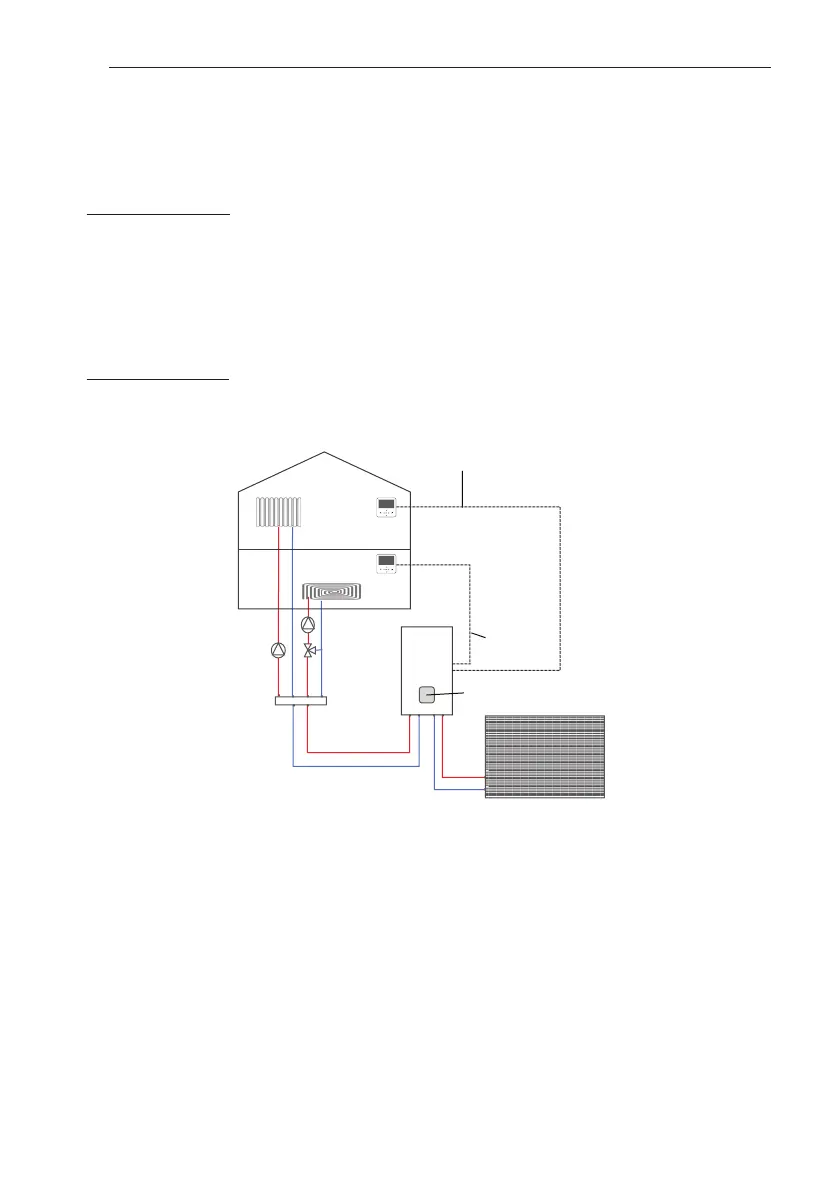

Example 2)
- RS3(A) is used to control both levels (upstairs/radiators & downstairs/underfloor heating)
including Installer settings. This Remote controller is also used to sense the room temperature
of the ground floor (Mixing circuit).
Settings on RS3(A):
Configuration - Control method: Air+Water
Configuration - Select room devices - RMC linked to: Circuit1&2
Configuration - Select room devices - Circuit 1 - Room air sensor option: Remote controller
Configuration - Select room devices - Circuit 2 - Room air sensor option: Remote controller
- RS3(B) is used to control only Circuit 1 (upstairs/radiators) and sense its room temperature.
Settings on RS3(B):
Configuration - Select room devices - RMC linked to: Circuit1
CN_REMO_ A
CN_REMO_ B
RS3
(B)
Circuit 1
Circuit 2
Cover plate
PDC-HK10
RS3
(A)
